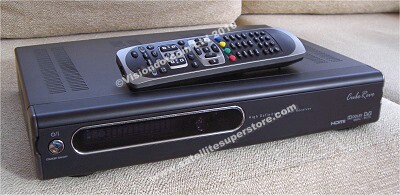

Cube Revo Linux twin tuner
PVR High Definition receiver ("ABIPBox")
Black or Silver.



See below for internal hard drive options.
Twin Tuner. 500GB & 1Tb options. 2CI & 2 card readers.
Product information
HDTV Linux based receiver, DVB-S compliant, DVB-S2, (DVB-T, DVB-C supported) Smart tuner supported
(Plug & Play), MPEG-2 and MPEG-4 AVC/H.264 video decoder, 2 x smart card reader, 2 x CI slot,
2 x Scart, HDMI with HDCP, S/PDIF optical output, USB Host and USB Client, S-Video out,
3 x Cinch out, Y/Pb/Pr out.
Our tests.
Here at Satellite Superstore we do not introduce a new receiver to our product range without extensively testing
it first. Here are the results of the tests. SD and HD picture quality – excellent – as good as it gets.
Recording on the hard drive. Works like a Sky + and Sky HD in that it has many similar trick play facilities
like live pause etc. Playback of HD files in full HD – no problems – perfect recordings.
No. of channels. Linux boxes tend to be virtually unlimited. With other makes they can exceed 20,000 channels
which is 3 times the number available in the Sky on a standard motorized dish.
Menu structure – easy to use. Build quality - excellent - see picture. Software support - good.
Alpha numeric display on the front of receiver details channel names and menu information. Picture in picture.
(See screen shot below) Can play back MP3, picture and DIVX, (video), files from it’s internal hard drive using
the music or photo button on the handset. Files can be loaded into the internal drive using an FTP program.
It can also play back MP3 files and display pictures that are on the internal drive inside your PC providing
the PC is connected to the same network 2 cam slots and 2 card readers – the card readers can be configured
with 3rd party software but please note that we can’t support info. on 3rd part software.
Web interface – control the receiver from any computer. Stream video to any computer.
Conclusion. This is the first high definition Linux twin tuner PVR we have seen and it is a first class
flagship model. Very impressed.
(Essentially the same hardware as the AB Ip Box, Differently badged with a slightly different
format front panel. Interchangeable software - otherwise the same. Same 500Gb hard drive.)
Update Oct. 08 We are now loading channel data into all Cube Revo Boxes. About 20 satellites,
many channels from all of the main satellites are being scanned in for you. Astra 2, Astra 1, Hotbird and many
other satellites. The makes for a plug in and use straight away receiver on a fixed dish and mostly programmed
for you on a motorised dish. Clearly this also means that your receiver has been fully tested before shipping.
All receivers sent out are packed in an outer box to protect the manufacturers box.
We like receivers to arrive at the customer in perfect condition.
Hard copy English manuals are included. Every receiver is individually tested even to the extent of a test
recording on the hard drive. Our own 6 page booklet detailing setting up with a motorised dish, loading
software, many other useful tips including details on how to solve various problems (like how to use the PC
editing software) is now included due to our extensive testing and feedback from customers.
(The silver unit has an attractive metalic dark grey front panel.)
Scroll down below for the fixed dish and motorised dish options or full pre-programming of the 7100HD.
For a complete system, add the dish of your choice below. Please scroll down or use the following link.
Fixed and Motorised dish options.

Shipping options. Discounted shipping on all web orders.
UK - Satellite receiver only (or full system,) mainland UK delivery is included in the price,
so choose "Mainland UK delivery included" - UK shipping option No 1.
Or the £15 to a "UK offshore island (and Eire) by courier" - UK (and Eire) shipping option No 2.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 (receiver only) "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.

Silver Cube Revo Linux twin tuner PVR without hard drive.
In stock and ready for immediate shipping.
Order code CUBERES
ONLY £449.95

Black Cube Revo Linux twin tuner without hard drive.
In stock and ready for immediate shipping.
Order code CUBEREB
ONLY £449.95

Receiver option - Fit a 500Gb hard drive to the Cube Revo receiver.
Fast high quality drive. Price includes fitting, formatting and testing.
Order code CR500W
Add only £49.95

Receiver option - Fit a 1Tb hard drive to the Cube Revo receiver.
This is a new fast high quality 1Tb hard drive. They are more expensive than most 1Tb
drives and difficult to get hold of. We only fit the best.
Price includes fitting, formatting and testing.
Order code CR1000
Add only £69.95

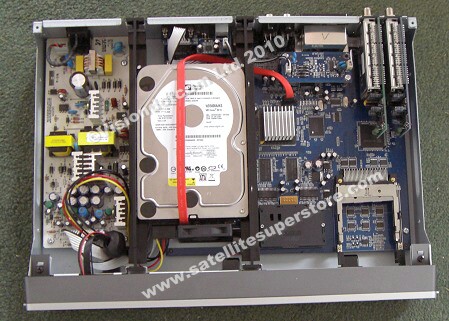

Build Quality

The 500Gb internal hard drive is included in the price.

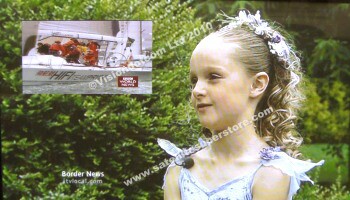

Picture in picture. Two tuners.

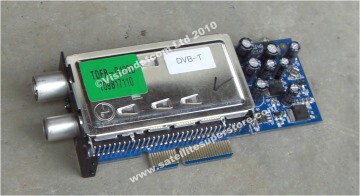

Cube Revo tuner cards.



These card can be used as one of the two tuners in the Cube Revo
It replaces one of the satellite cards (if already fitted).
You can order a Cube Revo with a satellite card and terrestrial card (or cable card) instead of two satellite cards
Or any combination. It you do, it is the same price. You need to ring us as this is a special order.
Or buy the receiver with two satellite cards and add other cards as extras.
