The 1.0 m Andrews Channel Master heavy duty, high gain dish with
big 1224 Supermount Horizon to Horizon motor and 0.1 dB LNB.



These are the new Titanium third edition 0.1dB LNBs that are widely praised on many web sites.
The third edition has the gold connections and is very low noise. An ultimate performance LNB.
The Andrews 1.0 m dish. (shown above is the 90cm but it is almost the same)
Channel Master dishes come with a Titanium 0.1dB LNB single output LNB.

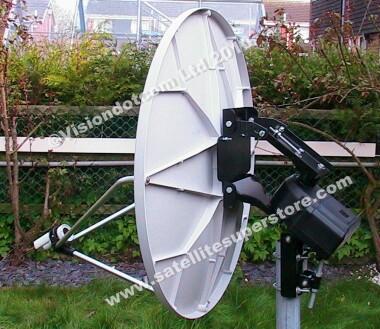

The 1224 H to H motor is shown above. (A twin Titanium 0.1dB LNB is an option below)
The 1224 H to H motor fits a 3 inch pole.
(Fits a 3 inch pole (76mm) / wall mount or ground stand.) See Wall mounts & ground stands.
Andrews Channel Master 1.0 m dish, 1224 H to H Supermount with Titanium 0.1dB LNB
The heaviest duty, highest quality, 1.0m dish, LNB and motor available.
The 1224 motor comes with our own assembly instructions (in addition to the manufacturers).
These instructions include 20 photos (taken by us) detailing each stage in the assembly of the motor
with tips and shortcuts on setting it up. (Notes and photos produced by the Satellite Superstore)
This is a motor that we have sold for about 10 years, it is a demonstration item of superb reliabilty.
Our experience with this motor is vast and this is reflected in our customer support.
The Andrews (Channel Master) 1.0m heavy duty dish is probably the best dish in the world for it's size.
The dish is supplied to you GREY (as per manufacurer's colour in the 2 pictures above)
but below you can see the interesting affect of painting a dish.



Using a diseqc receiver, a V box is also needed. See more details at V Box
This converts diseqc commands to 36 volt positioning and is fully automatic.
it also instroduces more power to drive the heavier duty 36 volt motor.
We include a V box option below at a discounted price.
Shipping options. Discounted shipping on all web orders.
UK - (or full system,) mainland UK delivery is included in the price,
so choose "Mainland UK delivery included" - UK shipping option No 1.
Or the £15 to a "UK offshore island (and Eire) by courier" - UK (and Eire) shipping option No 2.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.

The 1.0 m Andrews heavy duty dish with
1224 Supermount Horizon to Horizon motor and Titanium LNB.
Order code CMHH10S
£374.95

The 1.0 m Andrews heavy duty dish with 1224 Supermount
Horizon to Horizon motor and Titanium LNB. V Box included.
Order code CMHH10V
£399.95

Upgrade the single LNB to a Titanium 0.1dB Twin LNB



These are the new Titanium third edition 0.1dB LNBs that are widely praised on many web sites.
The third edition has the gold connections and is very low noise. An ultimate performance LNB.
Dish kit option - Include a Titanium 0.1dB LNB twin output LNB instead of the LNB with my dish kit.
Order code OPT05TW
Add only £10.00

Upgrade a single LNB to a QUAD Titanium 0.1dB LNB



These are the new Titanium third edition 0.1dB LNBs that are widely praised on many web sites.
The third edition has the gold connections and is very low noise. An ultimate performance LNB.

System option - Include a Titanium 0.1dB quad LNB instead of the LNB with my system.
Order code OPT02QU
Add only £28.00

Gibertini motorised 1.5m dish
with Titanium LNB.



This is the new Titanium third edition 0.1dB LNB that is widely praised on many web sites.
It has the gold connections and is very low noise. An ultimate performance LNB.
"Pole mount design". (i.e. fits on a vertical pole)
Polar mount and 18 inch actuator.
This is a high gain offset motorised dish at a reasonable price.
Using a diseqc receiver, a V box is also needed. See more details at V Box
This converts diseqc commands to 36 volt positioning and is fully automatic.
it also instroduces more power to drive the heavier duty 36 volt motor.
We include a V box option below at a discounted price.
A matched feedhorn with C120 LNB option is available below.
Shipping options. Discounted shipping on all web orders.
UK - When you add a this dish kit to your receiver choice, mainland UK delivery is still included in the price,
so choose "Mainland UK delivery included" - UK shipping option No 1.
Or for "UK offshore islands (and Eire) by courier" - oversized delivery - quote by e-mail (or ring us).
All internationals - Within the EU or outside of the EU - choose the "International quote by e-mail" shipping option.
Delivery to S Ireland and most EU counties for this dish kit is about £80.00

Gibertini motorised 1.5m dish with Titanium LNB.
Order code GIBMOTI
Only £484.95

Gibertini motorised 1.5m dish with Titanium LNB. V Box included.
Order code GIBMOTV
Only £514.95

Gibertini feedhorn dish options



Designed for the Gibertini 1.2m and 1.5m offset dishes. The feed has a 23mm neck but it comes with
23mm to 40 mm spacers. Using a matched feedhorn for the Gibertini dish and a C120 LNB should
provide a better signal to noise ratio than using a standard 40mm LNB.
Dish kit Option. Change the LNB included
with the dish kit for a Gibertini
matched feedhorn and Inverto C120 LNB.
To buy this Feedhorn separately go to the Feedhorns page. THIS IS A DISH OPTION
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." (Includes UK offshore islands) - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option

Gibertini Option. Gibertini feedhorn with Inverto single C120 flange LNB
Order Code OPTGFSL
Add £32.95

Gibertini Option. Gibertini feedhorn with Inverto twin C120 flange LNB
Order Code OPTGFTL
Add £47.50

Gibertini Option. Gibertini feedhorn with Inverto quad C120 flange LNB
Order Code OPTGFQL
Add £62.50

Heavy duty Andrews 1.8m motorised dish kit.
including heavy duty actuator & Andrews matched
feedhorn with C120 0.3dB Inverto LNB





Andrews (Channel Master) 1.8m dish. Very high gain one piece proven design. This motor unit is
exclusive to the Satellite Superstore. Polar mount with aluminum adapter to fit Andrews
(Channel Master) 1.8m dish. Designed and built by the Satellite Superstore.

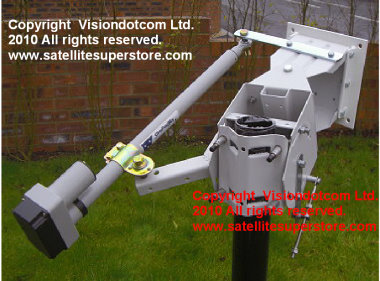

The polar mount picture above shows a standard 12 inch actuator but we include the HEAVY DUTY
18 inch actuator (also shown above) with this polar mount, - not the standard 12 inch.
The heavy duty actuator is, longer, thicker and much stronger.
The light-weigh (but very strong) aluminum adapter bracket fits onto the back of the Andrews
1.8m dish. The adapter bracket is made of unequal box and uses aluminum welding with bracing
gussets. This gives maximum strength combined with lightness. The lightness puts less strain
on the polar mount. The complete motor kit is available on our motors page
The polar mount collar fits a 3 inch (76mm) pole or ground stand.



Andrews (Channel Master) feedhorn. Highly recommended for Channel Master 1.8m dishes.
Using this feedhorn with a C120 flange LNB provides better matching & higher gain than a 40mm clamp LNB of
equivalent noise level. Why buy a high quality Channel Master dish and use a compromise
40mm mass market LNB where the feed is made for ANY dish?
Taking a 1.8m dish as an example. A 40mm LNB may only illuminate 1.7m of dish area or perhaps 1.9m of dish area
(i.e. including noise round the edges) But with a matched feedhorn, exactly 1.8m of dish area is illuminated.
High output 0.3dB C120 Inverto LNB included (good for longer cable runs.) The highest gain 1.8m dish on the market.
(Has more gain than many 2.4m dishes) An ultimate system for enthusiasts.
UPDATE 2008. Continued improvements in the polar mount design. The bar between the actuator end and the
mount has now been upgraded to heavier, stiffer steel angle improving rigidity. (Not shown in earlier picture
above but the strengthened support arm is shown in a new picture to the right of the LNB.)
Using a diseqc receiver, optional V box. See more details at V Box
This converts diseqc commands to 36 volt positioning and is fully automatic.
it also instroduces more power to drive the heavier duty 36 volt motor.
We include a V box option below at a discounted price.
You can change the single LNB to a twin, quad or quatro C120 LNB with one oth the feedhorn options below.
Shipping options. Discounted shipping on all web orders.
UK - When you add a this dish kit to your receiver choice, mainland UK delivery is still included in the price,
so choose "Mainland UK delivery included" - UK shipping option No 1.
Or for "UK offshore islands (and Eire) by courier" - oversized delivery - quote by e-mail (or ring us).
All internationals - Within the EU or outside of the EU - choose the "International quote by e-mail" shipping option.

Heavy duty Andrews 1.8m motorised dish kit including heavy duty actuator
& Andrews matched feedhorn with C120 0.3dB Inverto LNB
Order code CM18MOT
£1149.95

Heavy duty Andrews 1.8m motorised dish kit including heavy duty actuator
& Andrews matched feedhorn with C120 0.3dB Inverto LNB. V box included
Order code CM18MOV
£1179.95

Dish feedhorn options.
Andrews feedhorn with Inverto C120 LNB options



If you are ordering the 1.8m dish where the matched feedhorn is included, or you are
ordering a feedhorn option to go with the 1.2m Andrews dish, you may wish to change
the LNB from a single C120 LNB in your order option to a twin, a quad or a quatro LNB.
We can take out the single C120 LNB, change it and charge you the difference in price.

Feedhorn Option - Change the single C120 LNB for a twin Inverto C120 LNB.
Order code OPTC12T
ADD ONLY £12.00

Feedhorn Option - Change the single C120 LNB for a quad Inverto C120 LNB.
Order code OPTC12Q
ADD ONLY £27.00

Feedhorn Option - Change the single C120 LNB for a quatro Inverto C120 LNB.
Order code OPTC12M
ADD ONLY £27.00

Don't forget to order a wall mount or ground stand from our
wall / ground stand page.

After clicking on a link below use the back button to return here. Jump to Triax Fibre Glass 80cm Andrews 1.0m h/duty
Andrews 1.2m h/duty Andrews 1.2m inclined orbit Gibertini 1.5m Andrews 1.8m h/duty Upgrade to twin LNB
Upgrade to quad LNB Upgrade to Andrews feedhorn/LNB Upgrade to Andrews feedhorn/twin LNB Diseqc motor dishes

Advice on Diseqc Motors.



This is a development where digital receivers now contain software to control a
Diseqc motor (right hand side in photo) rather
than a hardware positioner board to control a standard 36V motor (left hand side in photo) motor.

The problems with Diseqc motors and why the "V box" (link to V Box below) is so necessary with larger dishes.

Diseqc is a new development where digital receivers now contain software to control a Diseqc motor rather
than a five amp hardware positioner board to control a standard motor. The motor control works digitally
down the coax signal lead and a 4-wire control system is not required. Also the concept has become an
industry standard. Sounds good so far but what are the drawbacks?
1. Diseqc motors have all been lightweight universal fit motors with a
thirdary rotating pole that the dish clamps to. They are not designed for a particular dish and they do
not properly bolt onto the back of a dish. Slippage can occur in high winds at the thirdary rotating fixing.
2. The coaxial cable is designed to carry the signal from the LNB to the
satellite receiver. It is also designed to provide power to the LNB. The satellite receiver provides about
500 to 600 mA (0.6A) to power the LNB. Typically an LNB might draw about 300 mA. This leaves 200 to 300mA
(0.3A) to power up a Diseqc motor. Clearly a proper hardware (4 wire control system) positioner which
can provide up to (typically) 3 to 5 amps is a far better system as it can drive better bigger, stronger,
quicker motors. With 300mA a Diseqc motor must be very small. The only way a very small motor can move
a dish is by putting a large gearbox on the end of the motor to provide "leverage". This means that
a Diseqc motor moves very slowly from one satellite to another due to the large amount of gearing.
Small motors & thirdary thinner rotating poles which the dish can slip on are far from ideal for use
with even larger dishes (e.g. 1.0m+ or 90cm + in exposed locations.). Storm force winds in the UK can
provide serious wind loads on a motorised dish. You really do not want to be worrying about whether the
dish is going to come down every time it is windy.

Our opinion of a recent conversation,

I was talking to another dealer the other day. He said he fits a Diseqc motor to the Channel
Master 1.2m dish face. The Channel Master is a heavy dish and the wind loads on a 1.2 can be massive.
In addition, this Channel Master dish is available with a wonderful heavy duty Channel Master
polar mount and actuator (or the big 15 Kg 1224 Supermount H to H motor. See our motorised dishes page.
link below) and yet this dealer fits a (i.e small - usually 3 Kg) universal fit thirdary rotating
pole Diseqc motor to this excellent 1.2m dish face!!! It is like ordering a 6.5 litre Rolls Royce
from a dealer and saying "will you please fit a 1 litre Scoda engine before supplying it."
Absolutely crazy! Unfortunately 99% of dealers (and the magazines) are prepared to go down
this route. What we need is a bit of common sense. Why is wind load never considered? Every year we see
numerous insurance claims. We have never seen a Diseqc motor yet that we would put on a dish of over 1.0m

Our recommendations.

For motorised use, The Diseqc motor works fine on steel dishes up to 90cm and aluminium dishes up to 1.0m
in "normal" locations. For larger dishes, or exposed locations (e.g. above the gutter on a high pole
or on the west coastline of Scotland or Ireland,) use a V Box and a 36v motor.
The V Box will enable heavy duty (non Diseqc) motors to be used that move the dish quickly and efficiently
without the dangers of breakage or slippage in high winds. (motors that properly bolt onto the back of a dish)

We never make recommendations without explaining the facts and the facts are based on the laws of Physics.
Hopefully you will realise that we are making sense.

THE V BOX PAGE.

Latest Diseqc motor information 17/01/04

We have tested a new "Cryptic" Diseqc motor last weekend.
The reason for testing it was that for the first time a motor became available
that bolted onto the back of a 1.0m aluminum dish. Being a Diseqc motor
it was expected that it would still be slow (and it is) but this looked
very promising as the big problem of “universal fit – fits nothing properly
and slips in the wind had been overcome. We really wanted this solution
to work for us. It was set up with a Digiquest 8000 and using the USALS
facility all satellites were programmed in. Looked great.
However !
Taking hold of the edge of the dish, (at a distance of about 0.5m from the centre
Of rotation) there was play (movement) of about 7 mm. This was found to be in
The actual motor shaft between the rotating output shaft and the motor body
(i.e. in the gearbox) Looking at the shaft the movement was about 0.5 of a degree.
Now - last Saturday there were moderately winds (not gale force) and the dish
Moved on and off the satellite (no signal) every few thirds. Not a “peaky”
Low power satellite! We were on the Hotbird.
We contacted the supplier and were told that there is a certain amount of play
In all Diseqc motors as they use a worm drive to gear them down.
(small low current motor – large gearbox)
The only time you might get play in a 36 volt motor is when it has been used every
day for many years.

A typical e-mail. We get a few of these. (Dated May 03)

Dear David,
Did not believe in UFOs until recently, when looking through my window I saw a UFO descend
vertically and crash. I soon found it was my 1 metre Channel Master dish, still firmly attached to top of
Jaeger mount, having left behind rest of mount, still on top of pole. If you will examine the
top plate of a 128, you will find it is held on by 4 small countersunk screws. In my case,
wind on dish had managed to tear the heads off inadequate sized screws. If you check 128
you will my point, that screws are too small.

Reply,
The 128 is too small a motor for the Channel Master 1.0m as it only weighs 4 KG
The correct motor (2 types) - both weigh 12 KG each
As shown at www.satellitesuperstore.com/dishes-motors2.htm and our motors page
So nothing you say here is a surprise to us as we tell people that every day of the
week and follow other dealers insurance claims round. You should use the Channel
Master polar mount and 12 inch actuator or the 1224 motor with plate.
Dave

Note. The 128 is a 36 volt motor not a Diseqc motor but it was still too small for this dish!

Update Nov 04.

More recently we have had reports of people putting Diseqc motors on 1.2m dishes!
No wonder our insurance premiums are so high these days!

Update 20th July 06
The Technomate TM-2200

We have tested the latest Technomate Diseqc motor and it is better than any previously tested
It works well with 90cm steel or 1.0m aluminium dishes and it does move faster than
other Diseqc motors. There is no noticeable play in the gearing.
We are therefore pleased to include it in our product range. Only dishes
on our site that fall within the size recommendations just noted are
available from us with this motor. For larger dishes or exposed
locations use a 36V motor.
