Discontinued. A new improved model is due in November 2014.
If you need a good meter before then see the Smartmeter s1 below

Smart Electronics NIT satellite meter.
Smartmeter S1.





The Smartmeter S1 NIT satellite meter with built in TV. Lightweight!
We have sold "Smart Titanium" LNBs for many years. Now Smart Electronic in Germany have introduced a new exciting
satellite meter. An "NIT" meter does not use the transponder frequencies transmitted from a satellite (which can go
out of date) to identify (ID) the satellite. An NIT meter uses the network ID on a satellite to identify a satellite. It is
highly unlikely the network ID would ever change. With meters that are not NIT, the manufacturer looks for a frequency
that is (hopefully) unique to that satellite. Sometimes there is no unique frequency and the meter suffers from
"cross ID" (sees the satellite in two or more places and only one place is correct). If there is a unique frequency,
it may change in the future, if that happens the satellite can no longer be found without a software upgrade or
manual input of new data (if a keyboard is built into the meter). There are less problems with an NIT meter as
it does not rely on volatile frequencies. Usually NIT meters are quite expensive but this one is very very reasonably
priced AND it has a built in TV. Smartmeter S1 Specifications. - the screen is 3.5-inch TFT-LCD, 720 x 576 pixel
for display of menus, values of strength and signal quality, numeric bar graph, spectrum analyser and TV pictures.
Battery and meter separated by a proper on-off-switch, Period of operation 4 – 8 hrs. (depending on operation mode)
Frequency range 950 MHz to 2150 MHz, Input level -65 dBm to -25 dBm, LNB power supply 13/18 V, max. 700 mA
LNB control signal 22 kHz, DiSEqC control, USB socket, AV connections for video and audio. You can input an external
signal to appear on the TV screen. DC input for mains or car charger. LiIon 2700mAh battery. Weight only 0.48Kg.
Weight including canvas case and shoulder strap 0.54Kg. Mains charger and car charger included. Beware - there are
some cheap meters that have a built in TV but they are just a small satellite receiver in a meter type case. Proper
satellite meters either don’t have a built in TV, or, if they do, it is best to make sure you see the key words
“NIT” and “Spectrum Analyser”. Links to a pdf download of the S1 manual is below.
Mini review. Testing the Smartmeter S1. 19/02/2013
Boot up is almost instant. The menu system is very easy to use with nine icons on the main menu page that appear when
you turn on the meter. When you use the cursor to highlight an icon the menu name appears at the top of the screen.

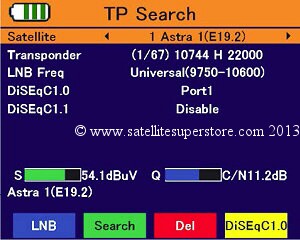

Selecting "TP Search" and the meter will find the satellite using the NIT system. To try to fool the meter we connected
it to a dish on Astra 2 at 28E but asked the meter to find Astra 1. There is a usually a cross ID between Astra 2 and
Astra 1 which can fool many meters. It showed both signal strength and quality when looking for Astra 1 but the network
ID displayed "Astra 2 found" and this proved the NIT function was working well. After finding any satellite, switching
to a TV picture confirms everything is OK. The sound is also very clear. Ideal when playing back media files through the TV.
The spectrum analyser was also tested and it produced very easy to read clear results. There is also a search system in
the "Satellite Identify" menu which is an excellent additional tool. If you connect the meter to a satellite dish and you
don't know what the dish is pointing at, the meter will search through all of the satellites until it finds the one the dish
is pointing at. This may take a few minutes but it does work. There is a PC editing program on the manufacturers web site.
Satellite Superstore has edited the 94 satellites in the memory to be in an easy access logical order for the UK and Europe.
The new dataset developed by us is loaded into the meters prior to being shipping out. Everything about this meter is fast
and easy. Very impressed. Satellite Superstore are authorised distributors of Smartmeters for Smart Electronic.
Satellite Superstore has sold professional meters since 1999 and so our usual high level of support is available.
Pictures below, left to right - Spectrum, TV Picture and TP Search menus.



You can download the Smartmeter S1 user manual here (1.12MB) and check it out before purchasing.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" many items including dishes up to 1.0m choose the £15 - UK option No 2.
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.
Please note that, although not guaranteed, many UK standard deliveries are getting there next day if the order
comes in before our cut off times but note there is also a next day option.

Smartmeter S1 NIT satellite meter.
In stock and ready for immediate shipping. Amazing price for all of these features.
Order code SMARTS1
Only £299.95

Smart Electronics Smartmeter S20
NIT DVB-S2 HD satellite meter.





The Smartmeter S20 (DVB-S2) NIT satellite meters with built in TV. Lightweight!
We have sold "Smart Titanium" LNBs for many years. Now Smart Electronic in Germany have introduced a new exciting
satellite meter. An "NIT" meter does not use the transponder frequencies transmitted from a satellite (which can go
out of date) to identify (ID) the satellite. An NIT meter uses the network ID on a satellite to identify a satellite. It is
highly unlikely the network ID would ever change. With meters that are not NIT, the manufacturer looks for a frequency
that is (hopefully) unique to that satellite. Sometimes there is no unique frequency and the meter suffers from
"cross ID" (sees the satellite in two or more places and only one place is correct). If there is a unique frequency,
it may change in the future, if that happens the satellite can no longer be found without a software upgrade or
manual input of new data (if a keyboard is built into the meter). There are less problems with an NIT meter as
it does not rely on volatile frequencies. Usually NIT HD meters are expensive but this one is very reasonably priced
AND it has a built in TV. Smartmeter S20 Specifications. - DVB-S2. The screen is 3.5-inch TFT-LCD, 720 x 576 pixel
for display of menus, values of strength and signal quality, numeric bar graph, spectrum analyser and TV pictures.
Battery and meter separated by a proper on-off-switch, Period of operation 4 – 8 hrs. (depending on operation mode)
Frequency range 950 MHz to 2150 MHz, Input level -65 dBm to -25 dBm, LNB power supply 13/18 V, max. 700 mA
LNB control signal 22 kHz, DiSEqC control, USB socket, AV connections for video and audio. You can input an external
signal to appear on the TV screen. DC input for mains or car charger. LiIon 2700mAh battery. Weight only 0.48Kg.
Beware - there are some cheap meters that have a built in TV but they are just a small satellite receiver in a meter
type case. Proper satellite meters either don’t have a built in TV, or, if they do, it is best to make sure you see the
key words “NIT” and “Spectrum Analyser”. The S20 meter also works with DVB-2 transponders and so more specialist
installers may prefer the S20 to the S1. The S20 (and the S1) work on both Ku band and Ka band. (use of Ka band
is increasing). Also note there is a link below to a pdf download of the S20 manual.
Mini review. Testing the Smartmeter S1. 19/02/2013 (most features are common to the S20)
Boot up is almost instant. The menu system is very easy to use with nine icons on the main menu page that appear when
you turn on the meter. When you use the cursor to highlight an icon the menu name appears at the top of the screen.
Selecting "TP Search" and the meter will find the satellite using the NIT system. To try to fool the meter we connected
it to a dish on Astra 2 at 28E but asked the meter to find Astra 1. There is a usually a cross ID between Astra 2 and
Astra 1 which can fool many meters. It showed both signal strength and quality when looking for Astra 1 but the network
ID displayed "Astra 2 found" and this proved the NIT function was working well. After finding any satellite, switching
to a TV picture confirms everything is OK. The sound is also very clear. Ideal when playing back media files through the TV.
The spectrum analyser was also tested and it produced very easy to read clear results. There is also a search system in
the "Satellite Identify" menu which is an excellent additional tool. If you connect the meter to a satellite dish and you
don't know what the dish is pointing at, the meter will search through all of the satellites until it finds the one the dish
is pointing at. This may take a few minutes but it does work. There is a PC editing program on the manufacturers web site.
Satellite Superstore has edited the 94 satellites in the memory (of the S1 and S20) to be in an easy access logical order for
the UK and Europe. The new dataset, developed by us, is loaded into the meters prior to being shipping out. Everything
about this meter is fast and easy. Very impressed. S20 Update 27/02/13 The HD features of the S20 were tested by
looking for 27E. This satellite only transmits DVB-S2 HD channels. There are no SD channels on 27W. The S20 quickly
identified 27E with no problems at all. Again very impressive. Satellite Superstore are authorised distributors of Smartmeters.
Satellite Superstore has sold professional meters since 1999 and so our usual high level of support is available.
Pictures below, left to right - Spectrum, TV Picture and TP Search menus.



You can download the Smartmeter S20 user manual here (838KB) and check it out before purchasing.
Please note an error in the S20 manual. The meter is capable of FEC up to 9/10 not 7/8

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" many items including dishes up to 1.0m choose the £15 - UK option No 2.
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.
Please note that, although not guaranteed, many UK standard deliveries are getting there next day if the order
comes in before our cut off times but note there is also a next day option.

Smartmeter S20 NIT (HD) DVB-S2 satellite meter.
In stock and ready for immediate shipping. Mains charger plug adapter - UK or Europe.
Excellent price for all of these features.
Order code SMARTS20
Only £499.95

Primesat SF-600 low cost professional
meter. Built in rechargeable battery.





Identifies satellites. Light - only 306g. Easy to use.
This meter has a built in battery and can be connected direct to an LNB (using the input connector). To find the satellite, no
other connections are needed, the meter will find the selected satellite. Even though connection to a satellite receiver is not
required, it does have an IF loop through (and output connector) which can connect to a receiver in case the user wants to
monitor the picture on a TV set at the same time. Mains / 12 volt charger and USB data connection lead included. This meter
is ideal for DIY, mobile caravan use or installers. Since it identifies the satellite, set up time is usually under 2 minutes.
Please don't mix this meter up with others you may find on the Internet which look similar. These meters are specially built and
prepared for the Satellite Superstore and they have our own prescribed dataset installed at the factory. We wanted the meters
to be simple to use but also have some useful options. For that reason 3 satellites are pre-programmed. Astra 2 at 28E for the
English channels from freesat or Sky, Astra 1 at 19E and Hotbird at 13E. If you are in a caravan and touring a long way from the
UK, Astra 2 may be difficult to find and may need a dish too large to carry. With this meter you can switch to Astra 1 or Hotbird
and still find some useful channels including "BBC World". To put more than 3 satellites into the meter would have made it more
complicated and not so quick and easy to use. 3 satellites seemed like the best balance for the budget / quality meter market.
Note - other satellites can be added manually using the buttons on the meter if required. (Similar looking meters found on the
internet are usually full of Chinese satellites and may not have been pre-prepared. Or if they have, Astra 2 may be mixed up
with all of the many Chinese satellites and that can be confusing. The unwanted satellites cannot be deleted.) There are none
of those problems with this Primesat meter. Also note, similar looking meters usually do not have a built in battery. Very cheap
meters which do not ID the satellites can take much longer to use and whilst they may be OK for a one off installation, they are
not recommended for regular use. An ideal meter for finding the satellite quickly at an excellent and very competitive price.

Shipping options. Discounted shipping on all web orders. (VAT info.) (Stock levels.)
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." (Includes UK offshore islands) - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post." shipping option

Primesat low cost satellite meter. Identifies satellites. Built in battery
Order code PRSF600
Only £99.95

Additional satellites option - add 1W and 30W to the SF-600 meter.
If the meter is going to be used to set up a motorised dish in the UK we can add 1 degree west and 30 degrees west. The
meter then contains satellites at each end of the satellite arc and in the middle. This is ideal for setting up a motorised dish.
Order code SF56130
Only £9.95

Primesat SF-3000 professional
satellite meter.





Identifies satellites. Built in TV. Easy to use. Only 448g.
This meter is ideal for installers, mobile caravan use or DIY. Since it identifies the satellite, set up time is usually under two
minutes. Please don't mix this meter up with others you may find on the Internet which look similar. These meters are specially
built and prepared for the Satellite Superstore and they have our own dataset installed in our workshops. This includes 43
satellites. Satellite number 1 in the list is Astra 2 at 28E for the English channels, but other satellites include Astra 1 (19E),
Hotbird (13E), Thor (1W), Hispasat (30W) and many others. Indeed all of the satellites we can see in our Sky with a reasonable
sized dish are included. If there are changes in the future, satellites can be added or edited using the keypad. To use the meter,
you switch on using a proper on-off switch (so no battery drain while off) then select "Installation", then "Dish setting".
Astra 2 appears at the top of the screen and is highlighted. At the bottom of the screen are the signal strength and signal
quality meters ready to start. It could not be easier. Once the satellite is found you can switch to TV (or spectrum Analyser)
if you wish. This meter is at a very competitive price. Full telephone support is available for all of our customers.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" many items including dishes up to 1.0m choose the £15 - UK option No 2.
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.
Please note that, although not guaranteed, many standard uk deliveries are getting there next day
if the order comes in before our cut off times but there is also a next day priority option.

Primesat SF-3000 professional satellite meter.
Order code PSF3000
Only £199.95

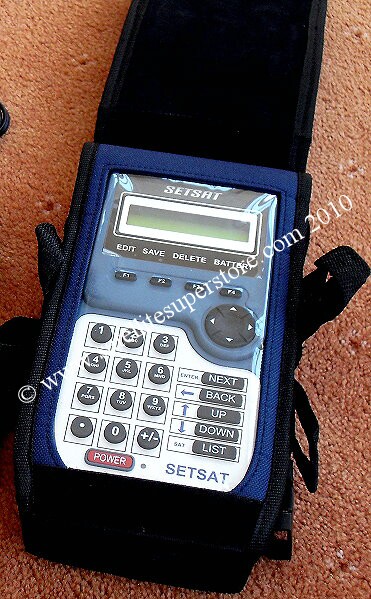

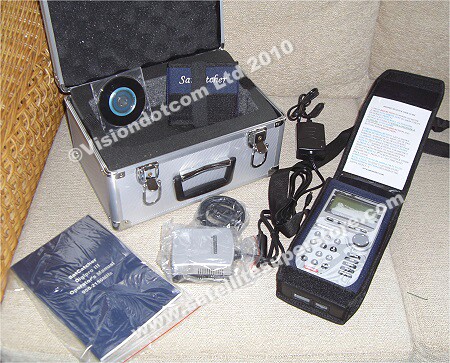

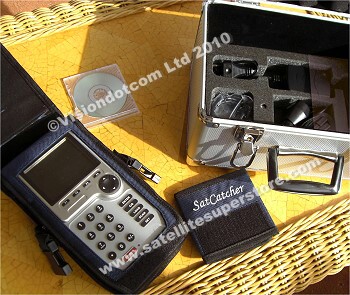

Satcatcher Setsat meter.

A very high quality reliable meter. Identifies satellite.



Case included. Mains charger included. Many satellites in database. The meter comes in a strong padded case.
This is a high quality robust meter from a UK manufacturer.
That means fast support from the manufacturer on the very rare occasions there may be a problem. We have sold many
of these meters in the last two or three years and there have been (almost) zero returns. Only a very very rare battery
issue where a replacement battery needed to be sent out. This is a fantastic reliability record. It is difficult to describe
the qualities of this meter until the customer actually holds it and uses it. In your hand it feels like a robust professional
piece of kit with a high build quality. It has a full keypad which means any changes to satellites in the sky can be entered
manually through the keypad without needing a computer or manufacturers software. The display is not large but this fact does
give the meter an advantage - all parameters are displayed by scrolling up and down with the cursor or pressing the appropriate
button but with a strong case and smaller screen this makes the meter much less likely to be damaged by day to day regular use
(especially if dropped). This meter is very easy to use. If an engineer at Satellite Superstore wants to set up a dish, or use
the test facility dish farm outside to test an LNB etc. it is the meter of choice they will want to use. This is because it
is so quick and easy. It is slightly larger than other meters in this price range (although still only 800g) and again
this means that there are no fiddly small buttons and indeed they are proper buttons and not just marks that flex on a
membrane. Until you hold and use this meter you don't really realise how good it is.
Features in more detail - Soft case. Many satellites in the memory. Frequency range: 950-2150 MHz. Signal
Measure. Level range -65dbm ~ -2dbm Other Net weight: 0.8 Kg Working temperature: 0 Deg C. ~ + 45 Deg C. Display:
16 x 2 line characters LCD Audio output: Internal built in speaker. Switch: 22KHz support. Power Supply LNB power supply:
'H' +18v 'V' +13v 500mA, DC power supply: DC 8.4v chargeable battery power adapter input: AC110V/60Hz/220V50Hz +/-10%,
Power adapter output: 10.4V DC 1000 mA. Working time: 2 hours from full charge. Charging time: 3 hours to full. (Larger
battery option available below) Car charger (optional). world compatible. Protective case with strap. (included). Function
Fully edit every setting by hand, no P.C required. 60 entries of test data possible, Transponder list. Search and find with
3 easy steps. Extra sensitive Philips tuner. High quality build using the best components. Only Satcatcher allows you to Add,
edit , delete and store entries at super fast speed by using the onboard 17 digit keypad. A computer is not needed. If the meter
needs a frequency to be changed it can be done so through the key pad. Unbelievable value for this professional kit. Note - a
fast fit 3m professional meter lead (fly lead) is available below. Spare batteries and replacement mains chargers and
car charger are also available below.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" many items including dishes up to 1.0m choose the £15 - UK option No 2.
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.
Please note that, although not guaranteed, many UK standard deliveries are getting there next day if the order
comes in before our cut off times but note there is also a next day option.

Satcatcher Setsat meter. (Special offer)
We have sold this meter for over £189.95 for 2 years and recently at £194.95
Limited time special offer! In stock.
Order code, SETSATM
Only £149.95

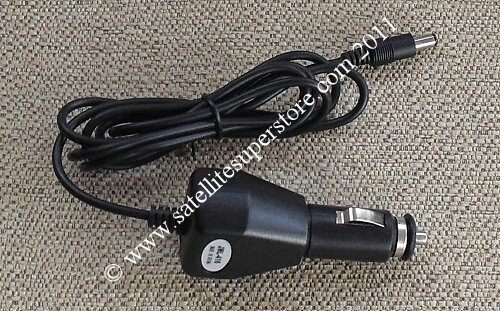

Satcatcher car charger option.



Discounted price only if purchased with the meter. To buy this charger separately see below.

Meter option - Satcatcher car charger Type 1. Standard type.
Order code OPTS121
ONLY £11.95

Satcatcher batteries.



Two batteries are available.
Setsat heavy duty. Lasts about twice as long as a standard setsat battery.
Satcatcher EXTV 4000 for the larger Satcatcher meters with built in TVs.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option

Setsat heavy duty battery.
Order code SATBAT4
ONLY £69.95

Satcatcher EXTV 4000 battery.
Order code EXT4000
ONLY £99.95

Satcatcher 240V Mains Charger.
For the Satcatcher Digipro III, IIIS and Exel TV satellite (and terrestrial) meters.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option
Order code SAT240V
ONLY £32.50
