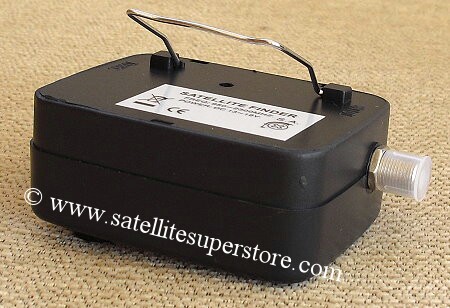

Low cost meters - Chess budget meter Satellite meter kit Digisat Digisat LCD Digisat Pro
and - Maxpeak terrestrial meter Satcatcher terrestrial meter Compass Digital satellite compass

Emitor Satlook Lite satellite meter.





ONLY 700g! Internal rechargeable batteries.
A light weight low cost professional meter. Battery life about 1 hour of continuous use if fully charged.
Ideal for Sky Digital or freesat at 28.2 degrees. The ideal instrument for the professional
installer. The black meter is in a protective orange rubber" protective clip in case / holder.
The meter is very light but this protective holder adds to the weight. At about 700g including
the orange holder and internal battery it is still a very low weight meter. The black meter weighs
500g including batteries and the strong rubber case adds 300g.
The main satellites included are 42E, 28E, 23.5E, 19E, 16E, 13E, 9E, 5E, 1W, 5W, 30W and many others.
This meter has a massive memory and could store all satellite twice over!
This meter does not use a dedicated battery. Rechargeable batteries can therefore easily be changed with spares
Even normal batteries can be used if rechargeables are exhausted. Very flexible for prolonged use.
Identifies many satellites. Built in spectrum analyser. Diseqc 1.0, LCD display with backlight.
Audible warning, Supplied with a mains charger, and a car charger. Super fast satellite ID circuitry.
Great price for a fully featured professional meter.
(Only £153.15 + VAT)
Note - a fast fit 3m professional meter lead (fly lead) is available below.
Discounted shipping on all web orders.
"UK delivery is included" so choose the "UK delivery included" shipping option No 1.
Delivery is also included to UK offshore islands for this product - again choose delivery option No 1.
Southern Ireland? Shipping to Eire is included in the price. Choose delivery option No 1.
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.
Order code, EMILITE
Only £179.95

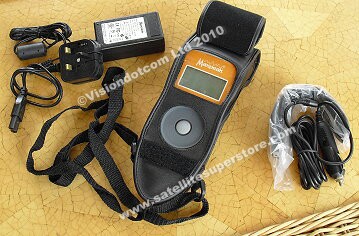

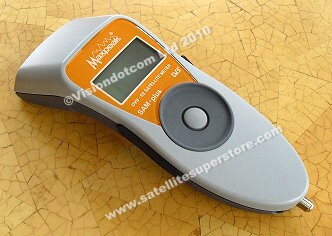

Maxpeak AB SAM-lite satellite meter.





ONLY 400g!

A very light weight low cost professional meter. High power long life battery.
Ideal for Sky Digital or freesat at 28.2 degrees. The ideal instrument for the professional
installer. There are 20 satellites in the database. LCD matrix display with backlight.
The meter is supplied with a quality leather case, a mains charger, a car charger and a USB lead.
Full PC editing is also available This meter also works on the 28E south beam which is a useful
feature if used in Southern Spain and Portugal. Great price for a fully featured professional meter.
Identifies the satellite - display says "satellite found" and there is an audible warning.
(Only £169.32 + VAT)
Note - a fast fit 3m professional meter lead (fly lead) is available below.
Discounted shipping on all web orders.
"UK delivery is included" so choose the "UK delivery included" shipping option No 1.
Delivery is also included to UK offshore islands for this product - again choose delivery option No 1.
Southern Ireland? Shipping to Eire is included in the price. Choose delivery option No 1.
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.
Order code, SAMLITE
Only £198.95

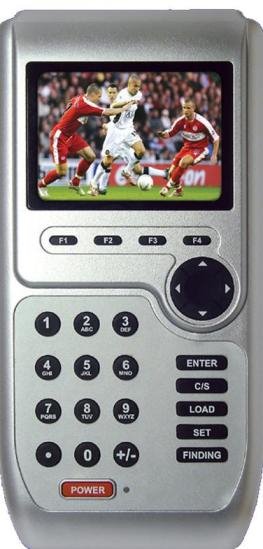

NEW! Satcatcher Digipro IIIS
satellite meter.

Identifies satellite. Many of the features of the Exel-TV. Many accessories.



Built in spectrum analyser

Case included. Mains charger and car charger included. USB lead for upgrading the software included.
The car charger is actually a small inverter and so this means that from the car, fast charging is possible.
The meter comes in a strong padded case. This meter only weighs 800 grams - light to carry!



45 satellites are stored and identified between 45 east and 45 west.
Features in more detail,
Soft case and hard case for all of the kit. Many satellites in the memory.
Input frequency- Frequency range 950~2150, Signal measure- Level range: -65dbm ~-25dbm
Input resistance: 75 Ohm, Symbol rate 2Msps ~45Msps, Dimension: 250 x 120 x 60mm, Net weight: 0.8kg
Working temperature: 0 Deg C. ~+40 Deg C., Display: 128 x 64 LCD, Audio output: Built in speaker,
Port: USB-USB, Switch: 22KHz support, Spectrum Analyzer screen function,
Power supply - LNB power supply: H +18V V +13V 500mA, DC power supply: DC 8.4V chargable battery
power adapter input: AC 110V/60Hz - 220V/50Hz +/- 10%, Power adapter output: 9.6 V DC 800 mA
Working time: 4~5 hours (full charge), Charging time: 4 hours from flat. Car charger power inverter,
world compatible, Switch function - DiSeqC switch 8 way, Motor control diseqc 1.0/1.2/USALS
All LNB types supported, SPECTRUM Analyzer FUNCTION: -
See the peaks of the transponder you are looking for. Save the picture to memory for later use.
Store 8 pictures of your most used satellites. Some Engineers have used very expensive devices
for many years to view the spectrum picture of the incoming satellite signals. These devises
are costing thousands of Pounds and without exception are difficult to set up and use.
Note - Diseqc switching included - Diseqc motor control included
Diseqc Motor controls... Go to zero , move left and right ,Go to position auto based on
longitude and latitude settings. Spectrum screen ,with zoom and attenuation functions
Duel Bar graph display ,showing signal , strength , quality , BER,Carrier to noise and lock
indicator in one screen. Location screen display , showing picture view of , dish position
in relation to due south , azimuth calculations, elevation calculation and degrees
position in numerical figures. Very large memory. Spectrum save memory,satellite entry
memory area for 80 entries and 80 entries for saved data.
Only satcatcher allows you to Add, edit , delete and store entries at super fast speed
by using the onboard 17 digit keypad. If you have more time , then connect to the PC
and use the provided editor to build your own unique files.
Normal price £361.33 including VAT and shipping.
Special offer - Only £224.95!!!! including vat and shipping
Unbelievable value for all of this professional kit. Fantastic price exclusive to the satellite Superstore.
Note - a fast fit 3m professional meter lead (fly lead) is available below.
Spare batteries and replacement chargers are also available below.
Shipping options. Discounted shipping on all web orders.
UK - UK delivery is included in the price,
so choose "UK delivery including offshore islands (and Eire) included"
- UK shipping option No 1.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.
Order code, SACAT3S
Only £224.95

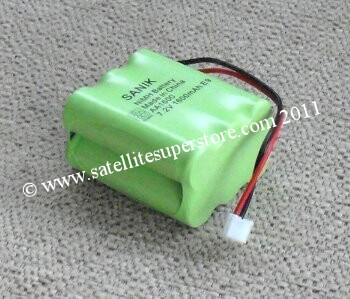

Satcatcher batteries.



The 2700 battery is a 2700mA/hr battery and is best used in the Digipro III and IIIS
The new longer life 4000 battery, introduced July 2010, is a 4000mA/hr battery
It is ideal for the Satcatcher Exel TV satellite and terrestrial meters.
Either battery will fit and work with either meter.
The 4000 battery is manufactured by either Varta or Sanyo.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option

Satcatcher battery 2700.
Order code SATBAT2
ONLY £34.95

Satcatcher battery 4000.
Order code SATBAT4
ONLY £69.95

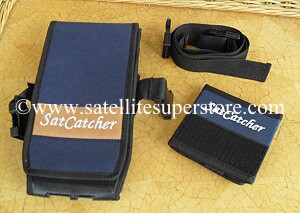

Satcatcher case kit.



For the Satcatcher Digipro III, IIIS and Exel TV satellite (and terrestrial) meters.
Includes the soft case, shoulder strap and sun visor.

Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option
Order code SATCASE
ONLY £34.95

Satcatcher 240V Mains Charger.
For the Satcatcher Digipro III, IIIS and Exel TV satellite (and terrestrial) meters.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option
Order code SAT240V
ONLY £32.50

Satcatcher car charger / inverter.
For the Satcatcher Digipro III, IIIS and Exel TV satellite (and terrestrial) meters.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option
Order code SAT12CA
ONLY £24.95

Manhattan satellite meter. DSM-4S





USB lead, LNB "fly" lead and case included.
Low cost professional meter. Identifies up to 4 satellites.
Option 1 - 28E, 19E, 16E, 13E - Ideal for setting up Sky, freesat, and a fixed dish with 3 or 4 LNBs.
Option 2 - 28E, 23.5E, 19E, 13E - Ideal for setting up Sky, freesat, and a fixed dish with 3 or 4 LNBs.
Option 3 - 28E, 19E, 13E, 9E - Ideal for setting up Sky, freesat, and a fixed dish with 3 or 4 LNBs.
Option 4 - 28E, 42E, 1W, 30W - Ideal for setting up Sky, freesat, and a motorised dish from the England & Scotland.
Option 5 - 28E, 42E, 5W, 30W - Ideal for setting up Sky, freesat, and a motorised dish from the Wales & Ireland.
Option 6 - 28E north beam, 28E south beam, 19E, 13E. - Ideal for setting up 28E Sky or freesat, in Spain. and Portugal
USB stick options Meter pre-loaded with Option 1 dataset and a USB stick provided pre-loaded with all 6 datasets.
You can choose the default dataset, 1 to 6 below and it will be loaded into the meter for you.
You can purchase a USB stick as an option with the meter and all 6 datasets will be on the stick for you. The
loader program is built into every dataset. All you have to do is double click the dataset icon and the loader opens.
Adding a new dataset to your meter is very easy. The update is done using a USB lead (included with the meter).
A (blank) USB stick has been available on our site at about £10 for over a year. We are not looking to charge
customers for the datasets.
Use with a caravan or motorhome - any of the datasets will be fine but if visiting Spain best to choose option 6.
For setting up a Sky dish or freesat any of the datasets will be fine (but use option 6 in Spain.
For a 3 or 4 sat fixed dish choose datasets 1, 2, 3 or 6
For setting up a motorised dish choose datasets 4 or 5 (You only need an eastern, a western and a centre
satellite to set up a motorised dish) For maximum capability on a wide range of satellites choose the USB
stick option. UK installers (or caravan users) would mainly need to identify Astra 2 at 28E (freesat or Sky)
for setting up a fixed dish. Also see the Battery Kit Option below
Power is provided by the satellite receiver. An LCD display says when the chosen satellite is found
Small, light weight and compact. Easy to use. Robust. Belt strap on case.
Note - a fly lead is included, however, a fast fit 3m professional meter lead (fly lead) is also available below.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option

Manhattan DSM-4S satellite meter. Option 1 - 28E, 19E, 16E, 13E
Order code MANMET1
ONLY £149.95

Manhattan DSM-4S satellite meter. Option 1 - 28E, 19E, 16E, 13E
USB stick pre-loaded with all 6 datasets included.
The USB stick, pre-loaded with data, is only available if purchased with the meter.
Order code MANMETS
ONLY £159.95

Manhattan DSM-4S satellite meter. Option 2 - 28E, 23.5E, 19E, 13E
Order code MANMET2
ONLY £149.95

Manhattan DSM-4S satellite meter. Option 3 - 28E, 19E, 13E, 9E.
Order code MANMET3
ONLY £149.95

Manhattan DSM-4S satellite meter. Option 4 - 28E, 42E, 1W, 30W.
Order code MANMET4
ONLY £149.95

Manhattan DSM-4S satellite meter. Option 5 - 28E, 42E, 5W, 30W.
Order code MANMET5
ONLY £149.95

Manhattan DSM-4S satellite meter. Option 6 -
28E North beam, 28E south beam, 19E, 13E. (Ideal for Spain and Portugal)
Order code MANMET6
ONLY £149.95

Meter option only. Battery holder for the DSM-4S meter

Batteries are not included. This kit comes with a 2m lead with a compression F connector and fast fit adapter on
one end and two wires on the other end to go into the connector block. Hook battery on dish with cable tie
during the setting up. There are two reasons why this kit may be needed 1. Once connected to the battery kit,
the meter will work without having to connect it to a satellite receiver. 2. There can be a small number of
satellite receivers that do not provide enough power for the meter to work with a loop through
connection only. This is a meter option. Only available if ordered with the meter.



Order code OPTDSM4
ONLY £7.95

Satcatcher Digipro Exel-TV Mk3
satellite meter.

Built in satellite TV and spectrum information. Identifies satellite.
This is the new Mk3 version with video output, video output lead
and other improvements. Many accessories.





Identifies the satellite, provides spectrum information and allows the checking of the satellite
with a built in satellite receiver and TV. Works on both picture and sound. Many satellites in the memory.
Case included. Mains charger and car charger included. USB lead for upgrading the software included.
The car charger is actually a small inverter and so this means that from the car, fast charging is possible.
The meter comes in a strong padded case. This meter only weighs 892 grams - light to carry!
This meter also switches a Diseqc switch and drives a Diseqc motor east and west (see below right.)



45 satellites are stored and identified between 45 east and 45 west.
Features in more detail,
SPECTRUM Analyzer FUNCTION: See the peaks of the transponder you are looking for. Save the picture
to memory for later use. Store 8 pictures of your most used satellites.
Some Engineers have used very expensive devices for many years to view the spectrum picture of the incoming satellite
signals. These devises are costing thousands of Pounds and without exception are difficult to set up and use.
Again Satcatcher has taken note of the engineers request and developed this fantastic product.
Diseqc switching included. Diseqc Motor controls... Go to zero , move left and right ,Go to position auto based on
longitude and latitude settings. Spectrum screen ,with zoom and attenuation functions. Dual Bar graph display ,showing
signal , strength , quality , BER, Carrier to noise and lock indicator in one screen. Location screen display , showing
picture view of , dish position in relation to due south , azimuth calculations, elevation calculation and degrees
position in numerical figures. Very large memory. Spectrum save memory, satellite entry memory area for 80 entries and
80 entries for saved data. Satcatcher allows you to Add, edit , delete and store entries at super fast speed by using the
onboard 17 digit keypad. If you have more time , then connect to the PC and use the provided editor
to build your own unique files. This is probably the ultimate satellite meter currently available.
Special Internet only offer a free Satcatcher meter vest and a
Lensatic compass free with internet orders.
That's an extra £77.90 worth of free extra products for on-line orders only.
Also see that the Satcatcher vest is sold separately below below.
Note - a fast fit 3m professional meter lead (fly lead) is available below.
Spare batteries and replacement chargers are also available below.



Shipping options. Discounted shipping on all web orders.
UK - UK delivery is included in the price,
so choose "UK delivery including offshore islands (and Eire) included"
- UK shipping option No 1.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.
(£476.55 + VAT)
Order code, SACATCH
£559.95

Professional Satcatcher meter installers vest.



For the Satcatcher meter. Ideal for the installer.
Availability : In stock and ready for immediate shipping.
Professional Satcatcher meter installers vest.

For the Satcatcher meter. Ideal for the installer. If you already have a meter, order here.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option
Availability : In stock and ready for immediate shipping.
Order code SATVEST
ONLY £69.95

Satcatcher Terrestrial meter





Identifies the station. Built in terrestrial receiver and TV. Works on both picture and sound.
Many transmitter in the memory. Case included. Mains charger and car charger included.
USB lead for upgrading the software included.
The car charger is actually a small inverter and so this means that from the car, fast charging is possible.
The meter comes in a strong padded case. This meter only weighs 892 grams - light to carry!
Full PC editing available.
This is probably the ultimate terrestrial meter currently available.
Shipping options. Discounted shipping on all web orders.
UK - UK delivery is included in the price,
so choose "UK delivery including offshore islands (and Eire) included"
- UK shipping option No 1.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.
(£536.12 + VAT)
In stock.
Order code, SATERRE
£629.95

Special offer

Satcatcher satellite and terrestrial meters - save £50.00

Buy both meters and save £50.00
The free vest and compass are also included with on-line orders.



These are probably the ultimate meters currently available.
Shipping options. Discounted shipping on all web orders.
UK - UK delivery is included in the price,
so choose "UK delivery including offshore islands (and Eire) included"
- UK shipping option No 1.
Please note that, although not guaranteed, many uk deliveries are getting there next day
if the order comes in before our cut off times.
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.
(£970.13 + VAT)
In stock
Order code, SATTERR
£1139.90

Satcatcher batteries.



The 2700 battery is a 2700mA/hr battery and is best used in the Digipro III and IIIS
The new longer life 4000 battery, introduced July 2010, is a 4000mA/hr battery
It is ideal for the Satcatcher Exel TV satellite and terrestrial meters.
Either battery will fit and work with either meter.
The 4000 battery is manufactured by either Varta or Sanyo.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option

Satcatcher battery 2700.
Order code SATBAT2
ONLY £34.95

Satcatcher battery 4000.
Order code SATBAT4
ONLY £69.95

Satcatcher case kit.



For the Satcatcher Digipro III, IIIS and Exel TV satellite (and terrestrial) meters.
Includes the soft case, shoulder strap and sun visor.

Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option
Availability : In stock and ready for immediate shipping.
Order code SATCASE
ONLY £34.95

Satcatcher 240V Mains Charger.
For the Satcatcher Digipro III, IIIS and Exel TV satellite (and terrestrial) meters.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option
Order code SAT240V
ONLY £32.50

Satcatcher car charger / inverter.
For the Satcatcher Digipro III, IIIS and Exel TV satellite (and terrestrial) meters.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option
Order code SAT12CA
ONLY £24.95

Teleco DSF80 satellite meter



Low cost professional meter. Identifies 8 satellites.
Astra 2 at 28E, 23E, Astra 1 at 19E, Hotbird at 13E, Sirius at 5E, Thor at 1W, Atlantic Bird at 5W, Hispasat at 30W
Most UK installers would need to identify Astra 2 for setting up a fixed dish.
This is an excellent selection right across the arc and so it would be easy to set up a motorised dish as well.
Power is either taken through a 12 volt input socket. A power leads proved. This would need a 12-volt power
supply or battery. OR pick up 12 volts from a caravan 12 volt socket. There is also an optional battery holder below
A bar graph signal level meter is included. When the correct satellite is found an OK light comes on. Simple!
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "up to 1.5 Kg by insured international post."
shipping option
PRICE BREAK Is this the first meter to ID a satellite under £250?

Teleco DSF80 satellite meter

Order code TEDSF80
ONLY £147.50

Meter option only. Battery holder for the DSF80 meter

Batteries are not included. Connect the power lead supplied with the meter to the connector block. Hook battery
pack onto dish during the setting up. This is a meter option. Only available if ordered with the meter.



Order code OPT80BA
ONLY £4.95

Maxpeak SAM-plus
DVB-S2 advanced satellite meter.



Advanced (HD) DBS-2 meter.

Works with DVB-S as the latest DVB-S2 e.g. QPSK, 8PSK, MPEG2 and MPEG 4.
C, Ku, Ka or L band, Replaceable F-connector, 75 Ohm imp 30 to 100 dBuV Up to 70 transponders
Built in audible sounder, Charged from wall or car adaptor, Meter operates while charging
Run time in excess of 4 hours (DVB-S) Backlit graphics display 128*64 pixels,
Integrated rechargeable NiMH battery, RF Level as dBm or dBuV, True MER or SNR
displayed in dB, Quality displayed in % (reverse BER / PER), Pre and Post BER / PER
in numerical value, RF, BER/PER, MER displayed together, DiSEqC switch commands and 22 K tone
Upgrade of settings, firmware and language via USB 2.0, Only 800 grams. High power long
life battery. Complete with quality leather case, car charger, mains charger and USB download lead.
Ideal for Sky or freesat at 28.2 degrees east and many other satellites. This is the instrument for the
professional installer. Many satellites in the database. LCD matrix display with backlight.
Full PC editing is also available This meter also works on the 28E south beam which is a useful
feature if used in Southern Spain and Portugal. Great price for a fully featured HD professional meter.
Identifies the satellite you are looking for - display says "satellite found" and there is an audible warning.
Special Internet Only Offer -
A "Lensatic Compass" worth £8.95 - included free only with internet orders.



Discounted shipping on all web orders.
"UK delivery is included" so choose the "UK delivery included" shipping option No 1.
Delivery is also included to UK offshore islands for this product - again choose delivery option No 1.
Southern Ireland? Shipping to Eire is included in the price. Choose delivery option No 1.
International - within the EU - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.
Order code, SAMLITP
Only £387.75
