Heavy duty motorised dish kits and larger dishes.

In exposed locations and with larger dishes it is best to use heavier duty 36-volt motors. 36-volt
motors are larger and more powerful. This extra power comes from the V Box (a type of power supply) and a 4-wire
control cable. It all works automatically with the receivers own remote control.
Our recommendations.
1. In very high wind load situations use a 36-volt motor kit.
2. In all other situations the excellent Technomate Diseqc motor shown in the kits above is fine up
to 90cm steel dishes and up to 1.0m aluminium dishes but for larger dishes, heavier 36-volt motors
must be used. Remember, with big dishes, big lumps of metal (heavy motors) are needed to withstand winds,
not software and promises!

These are 36-volt motorised dish kits.

Add a 1.2m Raven heavy duty dish.
with heavy duty 36V motor and V Box.





The Raven (Formally "Andrews" and before that "Channel Master") 1.2m dish. "Probably the best 1.2m dish in the world"
The one piece reflector is thermoset-molded glass fiber reinforced polyester for strength and rigidity and surface accuracy.
An ultimate dish system for enthusiasts. Gain 42.0 dBi at 11.95Ghz. 3dB beamwidth - 1.6 degrees. Cross polarisation - 30dB.
The new Primesat CH12MK4 heavy duty polar mount and actuator is designed for the 1.2m Raven dish.
The new Mk 4 has been completely redesigned compared to earlier versions. This mount is produced by our sister company
www.primesat.eu for the Satellite Superstore. It is designed for the 1.2m Raven dish. This mount is very
well designed. The dish does not stand a long was away from the pole. With this latest Mk 4 version, the mount is a close
and well balanced assembly. The framework is very strong and well engineered. Fine adjustment is easy with a spanner.
Primesat CH12MK4 heavy duty polar mount and actuator. The polar mount is "dipped galvanised". The "dish back plate frame"
is now also dipped galvantised. This provides a long term durable finish especially in high salt areas. All of the nuts
and bolts are made of stainless steel except the main elevation and declination adjusters which are made of brass.
The polar mount includes a frame that is designed to fit on the back of the Raven 1.2m dish using the 4 bolts which
come with the Raven dish. A genuine Superjack 18" actuator is included. This dish / polar mount motor unit is
designed to clamp onto a 76mm (3-inch) diameter pole. An ideal ground stand is the Primesat GS761FW3 stand but see a
discounted option below. An ideal wall mount is the Primesat WMS45076 mount. 4 core motor control cable for
this motor is in the free fitting kit. This heavy duty polar mount and actuator can take high wind loads.
A High Performance Primesat Platinum LNB.
This is a twin Primesat Platinum high performance 0.1dB LNB from "Primesat Professional Products".
This LNB is ideal for low signal areas. Suitable for HD. Suitable for 3D. Suitable for 4K. A very high quality product.
White is an excellent colour for an LNB for two reasons. The first is it looks better. When looking up at a satellite dish,
there is mostly a light or cloudy sky and so white against the sky blends in very well. The second reason is more technical.
White keeps the LNB's internal heat in during the winter and in the summer white reflects the external heat from the sun.
This keeps the LNB cooler and results in less extreme temperature cycling. Temperature cycling should be kept to a minimum
for performance to be maintained. A white cap is even more important as it reflects the suns heat (which can focus on the cap)
and prevent a hole from burning through the cap. If there was a hole in the cap the spiders can crawl in and block the signal.
Only the TV signal should go through the cap, not the heat. In addition, there are better connections due to gold connectors.
Using a Diseqc receiver, a V box is also needed. See more details at V Box This converts Diseqc commands to 36 volt positioning and
is fully automatic. It also introduces more power (voltage and current) to drive heavier duty 36 volt motors. See Wall mount options
and the discounted ground stand below. Also see the matched feedhorn options below. The Raven matched feedhorn options
below work very well with this dish. They should provide the best possible signal.
See the Twin, Quad, and quatro C120 LNB feedhorn options below. This kit is discounted compared to buying the items separately.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price, (VAT info.) (Stock levels.)
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7).
For "UK offshore islands including Northern Ireland by courier" choose the £15 - UK shipping option No 2.
International - To all locations choose the "International shipping quote by e-mail" option.

Add a 1.2m Raven dish, Primesat Kk 4 heavy duty polar mount, 18-inch actuator,
Primesat Platinum twin LNB with V box.
Order code ADPMRVT
Add £969.95

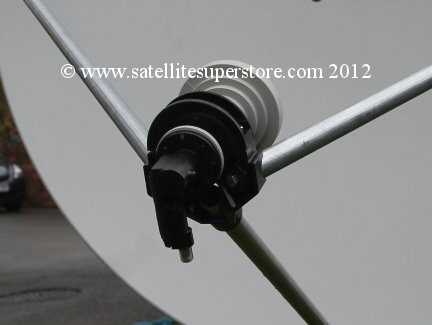

Dish option. Raven feedhorn with Inverto C120 LNB



23mm to 40mm spacers included. In stock and ready for immediate shipping. Raven feedhorn for
all Raven offset dishes. works best with the 1.2m, 1.8m and 2.4m Raven dishes. Highly recommended
with these dishes. Use this feedhorn with a C120 flange LNB for better matching & higher gain than a
40mm clamp LNB of equivalent noise level. Why buy a high quality Andrews dish and use a compromise
40mm mass market LNB where the feed is made for ANY dish?
Taking a 1.2m dish as an example - A 40mm LNB may only illuminate 1.1m of dish area or perhaps 1.3m
of dish area (i.e. including noise round the edges) but with a matched feedhorn, exactly 1.2m of dish
area is illuminated. This feedhorn is for offset dishes and can also be used on other makes of offset
dish. It comes with adapters for either 23mm or 40mm clamps and it comes with the ultimate 0.3 dB
Inverto LNB. The best combination money can buy. And YES !! We do have Andrews feedhorns in stock.
Inverto LNBs are high output LNBs and work better than Invacom LNBs when the cable run is long.
(Under 20m the performance is the same but over 20m it is better)
This is a dish Option.
NO NOT buy from this page unless you are buying an Andrews dish kit.
Include a matched Raven Feedhorn with C 120 Inverto 0.3dB LNB instead of a twin 40mm LNB
Discounted option price. To buy this feed and LNB separately, go to the Feedhorn page.

Dish Option - Raven matched feed option with twin C120 LNB.
Order code TWFTOPT
Add £109.95

Dish Option - Raven matched feed option with quad C120 LNB.
Order code QUFTOPT
Add £259.00

Dish Option - Raven matched feed option with quatro C120 LNB.
Order code QOFTOPT
Add £259.00

System option. Add a 76mm 1m high ground stand to this system.
(Discounted.)



Manufactured by the Satellite Superstore.
This option is only available if you are buying the dish kit above.
Note - ground stands are now bolt together, not fully welded.
For 1.2 - 1.5m dishes use 6 feet (studs). 6 adjustable feet are included. Discounted price when ordered with dish.
To buy this ground stand on it's own (not with a system) go to the ground stand page
Order code OPTGR76
£184.95

Add a heavy duty Raven 1.8m
motorised dish kit to my receiver.







Heavy duty Raven 1.8m motorised dish kit including a polar mount which is designed and built by the
Satellite Superstore, heavy duty actuator and Raven matched feedhorn with twin C120 0.2dB Inverto LNB.
This is a Raven (formerly Andrews and before that Channel Master) 1.8m dish.
Very high gain one piece proven design. The motor unit is a Primesat CH18MK2 polar mount and Jaeger
Superjack actuator. The polar mount is dipped galvanised with a steel back plate to fit the Raven 1.8m dish.
All of the bolts and nuts are stainless steel and the elevation adjusters are made of brass.
A 24-inch heavy duty Jaeger Superjack QARL3624 actuator is included.
The complete motor kit is also available separately on our motors page



A matched Raven feedhorn is highly recommended for this Raven 1.8m dish. Using this feedhorn with a
C120 flange LNB provides better matching and more good signal (a higher signal to noise ratio) than
a standard 40mm clamp LNB. It is best not to invest in a high quality Raven dish and use a compromise
40mm mass market LNB where the integrated feedhorn is designed for ANY dish but is not matched?
Taking this 1.8m dish as an example, a 40mm LNB may only illuminate 1.7m of dish area or perhaps
1.9m of dish area (i.e. including noise from round the edges) but with a matched feedhorn, exactly
1.8m of dish area is illuminated. A high output 0.2dB C120 Inverto LNB included
(good for longer cable runs). Twin, quad and quatro C120 LNBs are optional. The one piece reflector
is thermoset-molded glass fiber reinforced polyester for strength and rigidity and surface
accuracy. An ultimate dish system for enthusiasts.
For use with a Diseqc receiver, a V Box is also included. This converts Diseqc commands to 36-volt
positioning and is fully automatic. it also introduces more power to drive the heavier duty 36 volt motor.
We include a V box option below at a discounted price. The polar mount collar fits a 3 inch (76mm) pole
or ground stand. Also see the discounted heavy duty ground stand option below.
You can change the single c120 LNB to a quad, or a quatro C120 LNB with one of the options below.
Free fitting kit with detailed instructions included with all full motorised systems included.
It is worthwhile checking out our support page page (especially if you plan to do the fitting yourself)

Shipping options. Discounted shipping on all web orders.
UK - When you add a this dish kit to your receiver choice, mainland UK delivery is still included in the price,
so choose "Mainland UK delivery included" - UK shipping option No 1.
International - outside of the EU - choose the "International quote by e-mail" shipping option.

Add a 1.8m Raven dish, polar mount, heavy duty 18 inch actuator,
matched feed, V Box twin C120 Inverto LNB.
Order code AD1836T
Add £1679.95

Motorised dish feedhorn options.
Primesat feedhorn with Inverto C120 LNB options



When ordering the dish above which includes a matched feedhorn you may wish to change
the LNB from a single C120 LNB in your order option to a twin, a quad or a quatro LNB.
We can take out the single C120 LNB, change it and charge you the difference in price.
Buying these LNBs separately without also buying the 1.4m dish kit should only be done from the LNB page.

Dish Option - Change the twin C120 LNB to a quad Inverto C120 LNB.
Order code OPTCTMQ
Add £130.00

Dish Option - Change the twin C120 LNB to a quatro Inverto C120 LNB.
Order code OPTCTMM
Add £150.00

1.8m dish option - Ground Stand
for the 1.8m Raven motorised dish





Manufactured by the Satellite Superstore.
This is our own stand. It is 1.25m high and uses a 76mm (3.0") pole. Heavy 6mm thick angle
is used along the base and the angle dimensions are 60mm by 60mm.
There are 12 holes for fixing down to concrete or paving. 4 in each angle. See bottom right picture.
It is etch-primed and pained black. The final coat of paint is baked in an oven dried.
The stand is bolted together to make it easy to ship. A fully welded stand of this size could not
be transported with a courier and would need a (expensive) haulage company, so this stand bolts
together. Multiple bolts are used for maximim rigidity. The stand is heavy but it needs to be.
This stand is designed for our motorised version of the 1.8m Raven dish.
(Discounted price when you buy it WITH the 1.8m motorised dish kit above.)

Dish dish option only. Ground Stand for the 1.8m Raven dish.
76mm (3.0-inch) diameter pole including shim
Order code OPT18GM
£429.95

Option. 3 adjustable feet for motorised use.



This is a worthwhile option (discounted price) when ordering a 76mm (3-inch) ground stand. Feet are not included as
standard with the stand above. Using the 1.8m stand above, for motorised use, to make the pole plumb, we would
recommend at least 6 feet and preferable 9 although up to 12 can be used. It will therefore be necessary to add
this option more than once. Manufactured by the Satellite Superstore. An exclusive high quality product.
Order code EXTRAF3
Add £50.00 for 3 feet
