I want to have multiple satellite points around
the house and multiple receivers. I also want to
distrubute the TV from one receiver to all TVs how
can this be done.
There are several parts to this question.
There are several parts to this question.
To provide many satellite dish points, (e.g. Sky or freesat) around the house you either need a quatro LNB on your
dish or a quatro LNB dish kit. see dishes with quatro LNBs

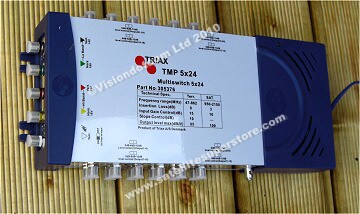

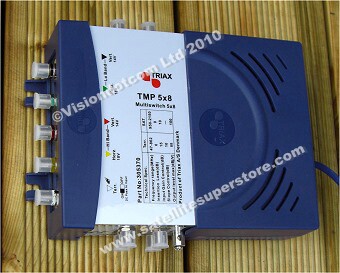

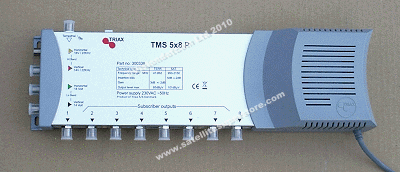

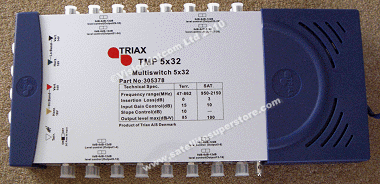

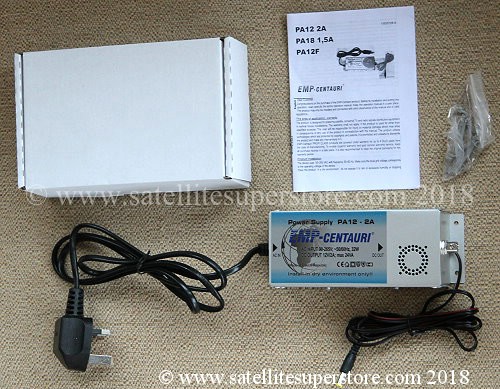

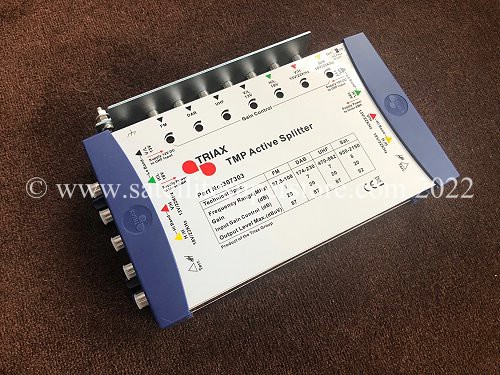

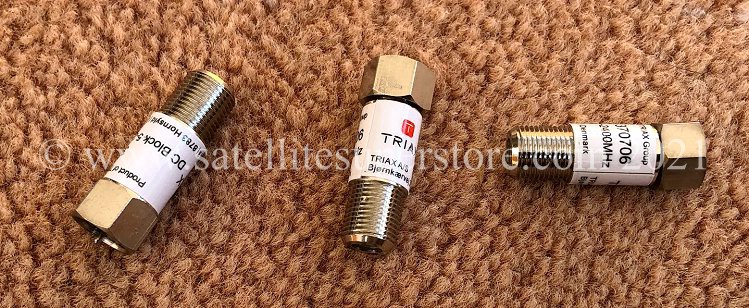

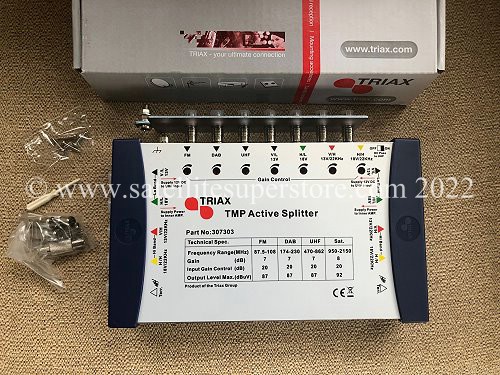

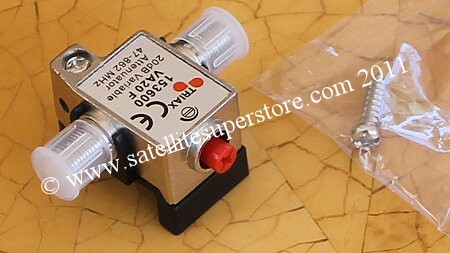

and a 5 input multiswitch
(multiswitches are usually situated in a loft or cupboard or central area.)
(Please note our latest EMP multiswitches also work with quad LNBs or 4 outputs from an octo LNB.
Most other makes only work with quatro LNBs)

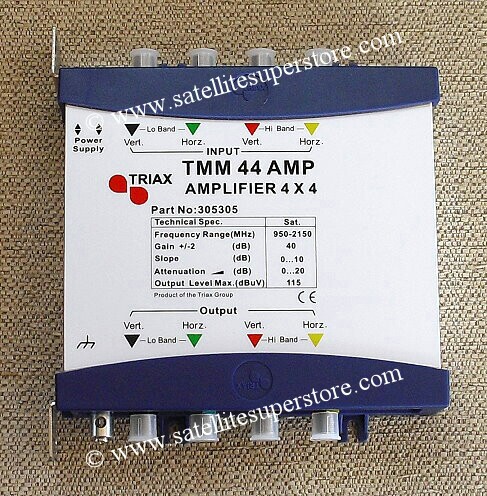

The quatro or quad LNB (with 4 outputs) feeds the multiswitch
using 4 LNB cable - see 4 LNB cable
Best to put two outlets in each room as it may be that twin tuner receivers
(record one channel and watch another) may be needed. (These are called twin tuner PVRs) If so use

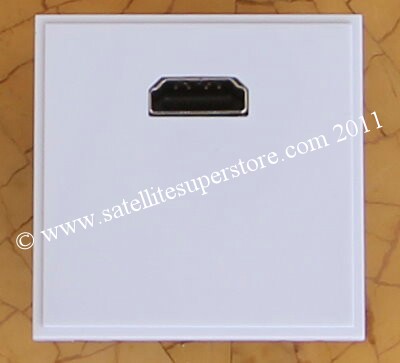

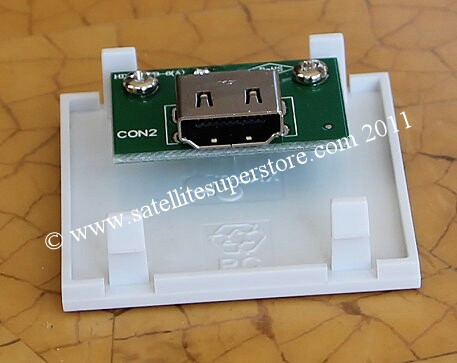

the twin wall plates see outlet plates
then scroll down to the twin units. Use twin cable to each room. see Twin cable

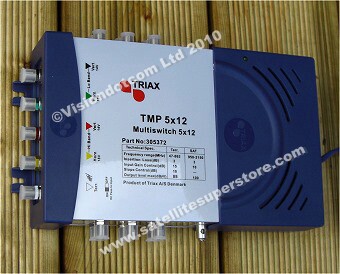

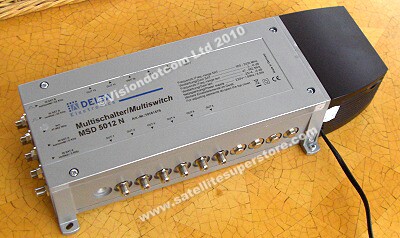

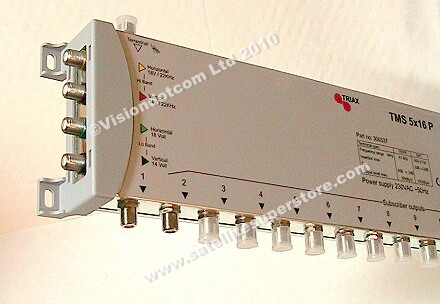

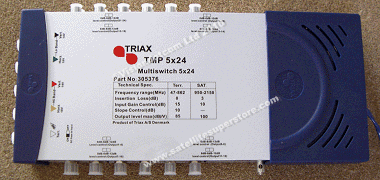

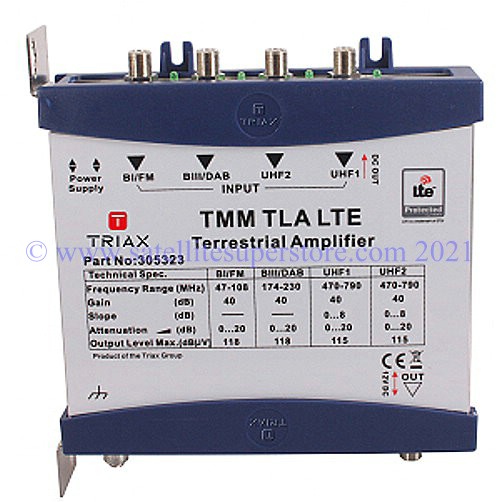

For (e.g.) 6 rooms a 12 output multiswitch would be used. Twin cable to each room. An aerial can be fed
into the 5th input of the multiswitch if required. Using a wall plate which has a diplexer built in, two
satellite points and an aerial point is available. The UHF aerial signal is added to the satellite signal
by the multiswitch and goes down the same wire as the satellite signal. If two or three aerials are required

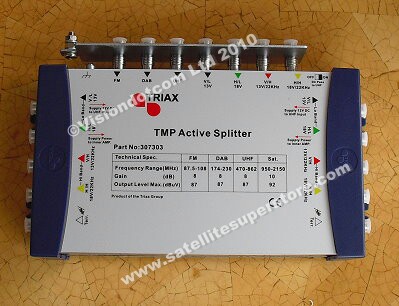

e.g. TV, FM and DAB radio, a 3 way combiner can be fitted on the roof and the one cable from that unit goes
into the 5th input of the multiswitch. Again the appropriate wall plate is needed to separate them all out
again. See multiswitch combiner
Standard Sky, Sky+ Sky HD freesat and freesat HDR and other receivers can then be connected
to the F connector wall plate. Everything you may need is on the Multiswitches Menu Page
Sky Q update October 2016.
Sky Q multiswitches are now available but it is now also possible to combine Sky Q multiswitches
multiswitches. There are three options. Use only a Sky Q multiswitch, or use a Sky Q multiswitch with a standard
multiswitch, or use a Sky Q interface with a standard multiswitch
. A Sky Q multiswitch (e.g. 5 in and 4 out) is
cascade-able. That means it has LNB loop-through. So it is really 5 in, 4 Sky Q outputs and 4 quatro LNB outputs
(the 5th output is terrestrial) which can link to a standard multiswitch. That means it can be introduced in
front of a standard multiswitch (between LNB and standard multiswitch.) Sky multiswitches will only work with
quatro LNBs and not with the quad LNBs which are on Sky mini dishes. The other option is the Sky Q interface
This is connected to the output of a standard multiswitch. 4 short cables (the interface would sit beside the
multiswitch) coming from 4 of the outputs from a standard multiswitch connect to 4 inputs in the Sky Q interface.
The interface converts these 4 inputs into the 2 Sky Q outputs. The disadvantage is that 4 outputs turn into two
outputs but if there are plenty of spare outputs, this is not a problem. Two rooms can then be supplied with a
Sky Q feed (remember Sky Q only needs one cable not two). The rest of the rooms would be fed with standard
outputs and so Sky HD, freesat and standard receivers can be used in those rooms.

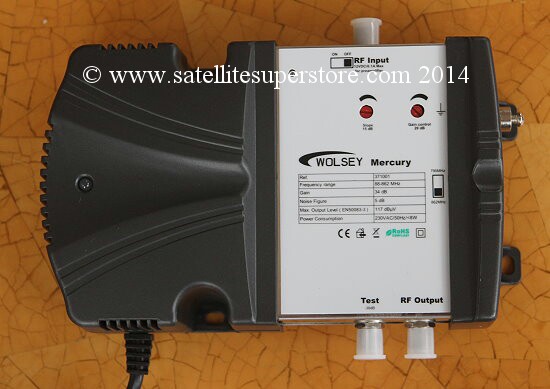

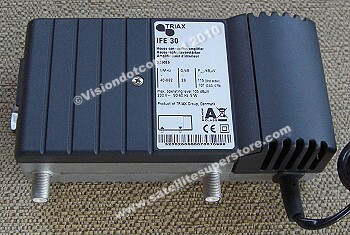

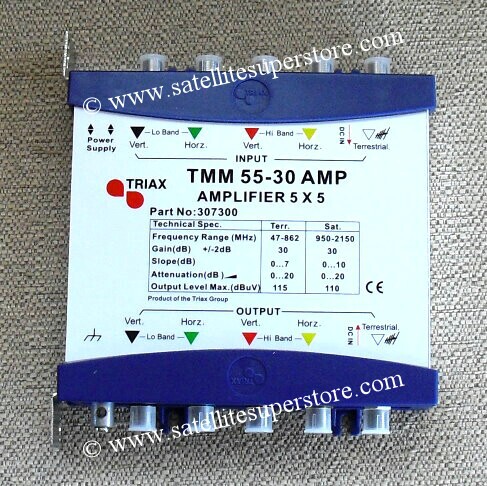

Distribution round the house needs a 2, 4, 6 amp or (preferably) professional 8 way amp and cabling.
See Professional 8 way amp
and Offer 1
but read the whole page.
This is to distribute TV from one receiver to other TVs around the house (one channel)
This can be done by feeding a cable from the room containing the sat receiver to the multiswitch location and
into the 3 way combiner then into the multiswitch. However, the problem with this method is that the multiswitch
will not permit the 9 volts to go through and the TV Eye or omni link system to work for control. It is better
therefore to have a completely separate output system with separate cabling for the distribution system
This would mean 3 cables to each room, two for the satellite and one for the distribution. TV eyes for Sky receivers
or omni link systems for freesat receivers or other receivers
see the omni link kit
(and a modulator is required - same page or use a Triax Trilink)
This will allow full control of the Sky or freesat system from all of the rooms (but only in UHF analogue).
Latest information on HD 1080p output distribution.

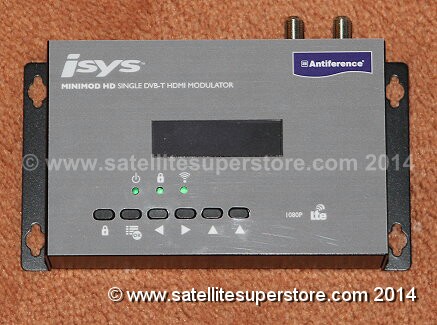

This HD Modulator
, has an HDMI input and a coaxial cable output. Many houses already have a UHF distribution system.
A similar system in the past would take the coaxial output from the UHF (RF) connection of a receiver, maybe to an existing
distribution amplifier in the loft, then cables down to the rooms. This new HD modulator will work with your existing
distribution system. Satellite receivers now have an HDMI output. Connect the HDMI output from your satellite receiver
into the HD modulator. This uses the only HDMI output and so it is now not available to go to the TV next to it. There are
two solutions of sending the HD signal to both the TV and the modulator, 1. buy an HDMI splitter
. This splitter converts
one HDMI output to two HDMI outputs. Then one HDMI cable can continue to go to the TV next to your satellite receiver and the
other to the HD modulator (optional splitter below). 2. Only connect the one HDMI lead to the modulator, the output then via
coax to the distribution amplifier. From there send the signal via coax to many TVs in many rooms and also back to the TV next
to the satellite receiver. With the second plan an HDMI splitter is not needed but a coax cable back from the distribution
amplifier is. To summarise, the coaxial output of the modulator can go direct to a second TV elsewhere in the house, or it
can go to a distribution amplifier (which may be in the loft) and then to many rooms. This coaxial cable then plugs into the
digital tuner input of your TV. All you then have to do is tune in the channels on your TV and one of the channels will be the
satellite receiver from the main room. This can be in full 1080p HD. Additional notes. The old UHF system in use for, probably
30+ years from an RF output was analogue and not very good quality. Usually there was an RF modulator built into the satellite
receiver and you had to tune in the analogue tuner of your TV set. Today many flat screen sets have both analogue and digital
tuners. Since there is no analogue TV any more the analogue tuner only tends to be used for tuning the old UHF, RF distribution
system but the new HD modulator works through the digital tuner of the TV in full HD. There have been some HD distribution
system which use CAT 5 cable but this system of HD over coax means that the old existing distribution system using coax can
be used and will it all work in full HD. There is an aerial loop through on the back of the modulator (just the same as the
old analogue loop through in the back of a satellite receiver with RF in and out) and so if the TV aerial can go into the
modulator, the aerial will then be carried with the satellite receiver signal to every TV through the distribution system in
the usual way. Please also note, for control you may also need an Omni Link kit
. Then you can change channels etc.
from any room. Also remember out dedicated telephone support line just for our customers is there to help you
How to use mutiswitches and motorised in multiple rooms.

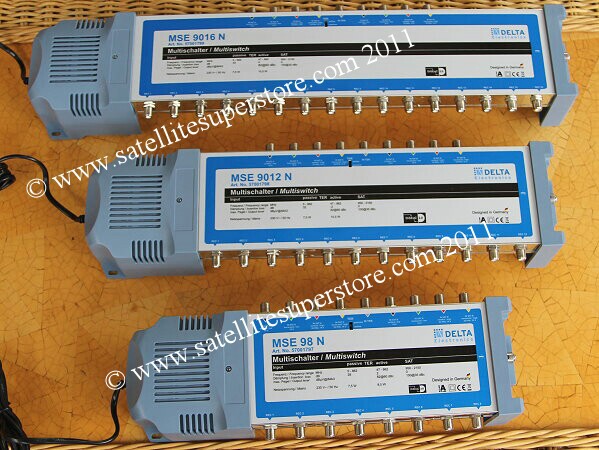

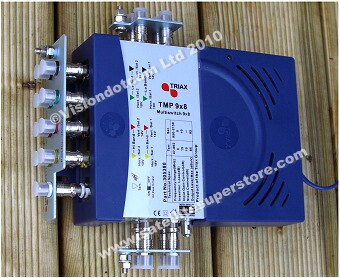

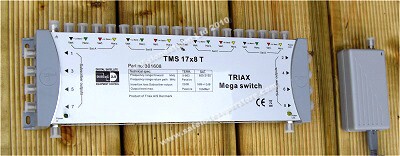

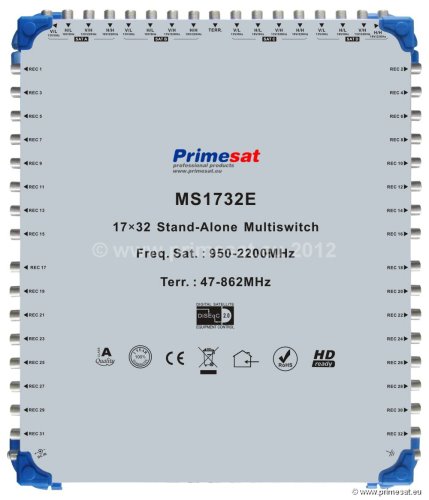

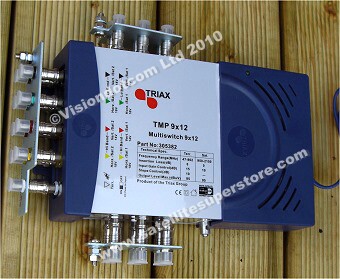

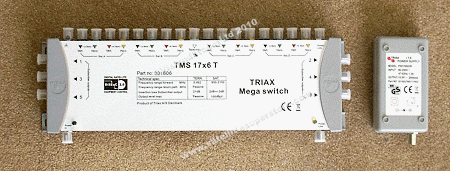

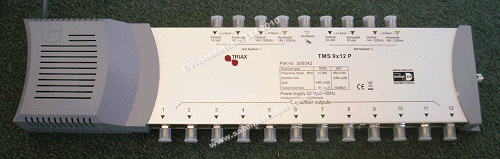

Using a 9 input EMP multiswitch,
two satellites can be made available in every room.
This multiswitch could be fed from (e.g.) a dish on 28E for sky or freesat. This dish would have a quad
(not quatro) LNB. These multiswitches are designed for quad or octo LNBs.
A good example of a dish for this purpose would be -
The Triax 60cm solid dish with quad option
see Triax 60cm. (with quad LNB option)
The Triax heavy duty 60cm or 70cm dish with quad LNB option
see Triax heavy duty 60cm or 70cm dishes (with quad LNB option)
The clear 60cm dish with quad LNB option.
see Clear 60cm dish (with quad LNB option)
This dish would be fed into input 1 of the 9 input multiswitch (this is 4 inputs), 1-4, for the quad LNB.
Input 2 (i.e. from 5-8) would be fed by a motorised dish.
The motorised dish (e.g. 90cm Triax - see Triax 90cm motorised dish (with octo LNB option)
would have an octo LNB option (8 outputs)
4 of the outputs would feed into input 2 of the multiswitch (5-8)
A 5th output would go direct to the motorised satellite receiver. (or outputs 5 and 6 to a twin tuner motorised receiver.)
This receiver would be placed in the house where it can easily be accessed as it will control which 2nd satellite
it being offered to the multiswitch.
Let us assume the 9 input multiswitch has 16 outputs. That is to say twin cable to 8 rooms so that every room has
the capability of using a twin tuner receiver.
The system would then work in the following way -
Using any receiver into a twin satellite point in a room, 28E (Sky and freesat) would be available even if the
receiver was a dedicated receiver (like a Sky receiver) and does not have Diseqc switching PROVIDING 28E goes
into input 1 of the multiswitch.
Input 1 is the "relaxed position" of the switches (Input 2 is the forced position) therefore the signal will go
through input 1 whether the receiver has Diseqc switching or not.
If the receiver DOES have diseqc switching, then the second satellite can be selected.
If the motorised dish is (e.g.) on Hotbird, the second satellite available in every room would be Hotbird at 13E
If the motorised dish is (e.g.) on Astra 1, the second satellite available in every room would be Astra 1 at 19E
this system insures that everyone in the house can easily select the main UK satellite (Astra 2 at 28E) but would
also be able to access a second satellite and that satellite would be determined by the position of the motorised dish.
This system eliminated a particular problem. Within the menu of a satellite receiver you can't select Diseqc
switching (Diseqc 1.0 or 1.1) AND motorised (Diseqc 1.2) AT THE SAME TIME. This is why an octo LNB must be
used with these special quad / octo multiswitches. This system keeps the diseqc 1.2 separate from the
multiswitches and so it all works. It would not work with quato LNBs as the motor would not work between the
LNB and the multiswitch. There has to be a 5th output
to separately route through the motor to a control receiver.
Twin wall plates are needed in every room. The motorised receiver needs it's own cables directly from it's own dish.
This system also works for a 36 volt motor, here a V Box is used in the cable from the 5th output of the octo LNB
to the main motorised control receiver otherwise everything else is the same.
- professional satellite meters - what type of meter will work with a quatro lnb and which lnb output
would I need to connect it to?
Using any professional meter
with a quatro LNB poses a few problems. In the end it is not an issue as long as you
understand the technical reasons and choose an approach which works best for you. First it is important to understand how a quatro
LNB works compared to a normal LNB like a quad. A quad LNB is simply 4 single LNBs in one package. Putting it another way, all
outputs carry all 4 components of the total signal. The total signal consists of 4 components due to there being 2 frequency bands
and 2 polarities. They are - high band vertical, high band horizontal, low band vertical and low band horizontal. Every component
carries 25% of the frequencies or channels. Every output of a quad (or a single or a twin) LNB carries every component or every
frequency and every channel. A quatro LNB does not. Here every output carries a different component - HV, HH, LV, LH This is what
is needed to make multiswitches work. (Some multiswitches will work with a quad LNB but their input circuitry converts the quad
signal to a quatro type signal). The next thing to understand is how a professional meter works and how it identifies a satellite.
The manufacturers look for a unique frequency on every satellite so that any satellite can be identified. Therefore, when looking
for a particular satellite like Astra 2, the meter might be looking for a frequency which happens to be (often it is 10,714GHz H
which is low band horizontal) "LH" (meters often have more than one (tag ID or tag frequency) frequency programmed into them
for each satellite, sometimes they have all 4 components available for selection in the menus but since finding unique frequencies
is difficult without a "cross identification conflict" (cross ID) there may be only one choice. At any rate without going into
the menu of the meter, the meter defaults to a particular frequency / component. Therefore, if a dish is being set up on a
particular satellite and the default frequency component to find that satellite is LH, if you connect to the LH output of the
quatro LNB, no problem. If you connect to any of the other outputs VH, HV, HL, it will not find anything. If you have not checked
the menus in the meter to see what the "tag" frequency and polarity is for the particular satellite you are looking for, then you
don't know which output on the quatro LNB to connect to (all outputs on a quatro LNB are marked LH, LV, HV, HL) In that situation
you have a 1 in 4 chance of connecting to the correct output and so by trial and error 1 output will find the satellite and 3
will not. This is a bit tedious although if it is mainly Astra 2 you are looking for, you would remember to connect to LH if you
had previously checked the tag frequency component in the meter was LH. A simple solution is to always carry a single LNB.
When we think back 20 years to when we used to install satellite TV, we would not go anywhere in the vans without spare LNBs.
There is no point it trying to fix a customers satellite system without parts which can be substituted in to assist the fault
finding process. Also a single LNB is cheap and so you are not tying up much money. Another alternative is to connect the quatro
LNB to the multiswitch with 4 short cables and keeping the multiswitch near the dish, connect the meter to any output of the
multiswitch. Every output carries all 4 components and is equivalent to a single LNB. Taking a multiswitch up a ladder and finding
somewhere to put it while you do all this might not be easy. To conclude, carrying a single LNB, finding the satellite, then
later fitting a quatro LNB is probably the easiest method.
This also partly explains why it is better to sell multiswitches
which work with quad LNBs as well as quatro LNBs. By fitting a
quad LNB, it makes it easier to find the satellite with a professional meter as it does not matter which output you connect to.
They will all work. In addition, it should be noted, most dishes in the UK are "Sky mini dishes" and not "standard dishes".
Sky mini dishes can only be fitted with a Sky quad LNB (or Sky Q LNB) but not a quatro LNB. This type of dish is particular
to the UK and Sky TV. Standard dishes can be fitted with either type of LNB. Therefore using mutiswitches which work with
quad LNBs, means the LNB on a Sky mini dish will work with the multiswitch and the dish does not need to be
changed for a standard dish (with 40mm clamp) and quatro LNB (which fits a 40mm clamp). In addition, and as stated
above, it makes it easier to set up any dish on a satellite with a professional meter is a quad LNB is fitted.
Further info. -
low band is 10,700GHz to 11,700GHz and high band is 11,700GHz to 12,750GHz The bands are switched
with a 22KHz tone and so tone off gives you low band and tone on gives you high band. A satellite meter (or a satellite
receiver) will insert the tone automatically depending on the (tag) frequency selected.
Problems of using more than one diseqc switch
with multiple LNBs
One our web site you will find 2, 3 and 4 LNBs on one fixed dish
See 2, 3 or 4 satellites on 1 fixed dish
You will also find options for the fitting of a twin or quad LNB as a substitution
with ONE of the 3 or 4 LNBs so that a popular satellite can go to several receivers.
e.g. putting a twin or quad in the 28E position so that a Sky digibox or Sky + can
be connected as well as the CI receiver to that LNB That means the CI receiver and the
Sky box both are connected to 28E but the CI receiver is also connected to other
satellites through ONE diseqc switch.
You will not find on our site 2.3 or 4 satellite kits with twin or quad LNBs and
more than one diseqc switch to either two receivers or a twin tuner receiver.
Whilst it should all work in theory, in practice
(depending on the combination of switch positions) you can get no signal on a
satellite when it should all work. This is because twin LNBs and Quad LNB should
be fully connected to work properly. It may be OK to connect to two outputs of a quad
but you have to experiment to find out which two. With a twin, one side has a good
connection to the internal power supply circuit and the other is almost like a passive
device and relies on power from the second receiver to work properly
If you connect two or more diseqc switches, they take power away from some of the
outputs of the twin or quad LNBs (depending on the switching at the time) and
things go wrong.
IS THERE A SOLUTION?
Yes there is - a new solution - but quite expensive. It will be on our site soon as

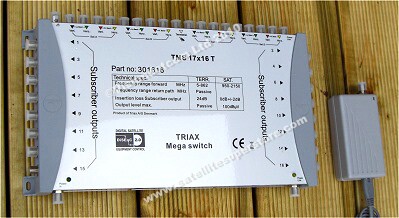

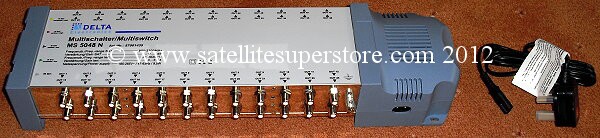

an option on all of the twin tuner receiver pages eventually but see it at multiswitches
The 9 in and 6 out and the 17 in an 6 out ...etc. This is a product designed to
do the job. Quatro LNBs must be used but all the switching is done inside the unit
and there are no power issues
Update April 2010. The twin lnb options with Discqc switches
all designed to work together do work without problems if
part of the "Inverto Multiconnect" 3 and 4 sat systems.
