Feedhorns menu page - scroll down

Raven Feehorn Raven Feehorn with single LNB Raven Feehorn with twin LNB Raven Feehorn with quad LNB Raven Feehorn with quatro LNB Raven Feehorn support boss S Band LNB 23mm to 40mm spacer for the Raven feedhorn. c120 flange to WR 75 flange waveguide transition. For offset dishes

Raven feedhorn only-

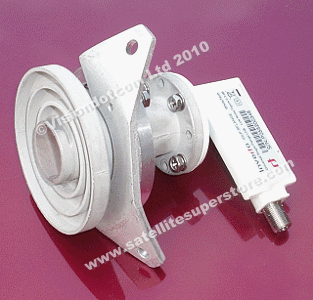

Raven feedhorn


Raven feedhorn with C120 flange LNB -

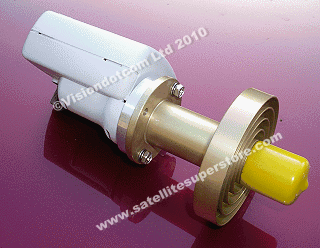

Raven feedhorn with single Invacom or Inverto Black Pro LNB


Raven feedhorn with twin Invacom or Black Pro Inverto LNB

Raven feedhorn with Invacom or Inverto Black Pro quad LNB


Raven feedhorn with Invacom or Inverto Black Pro quatro LNB


Raven feedhorn with Primesat c120 flange quatro LNB


Feedhorn supporting clamps -

Raven 40mm feed support boss


Stainless steel C Band or Ku Band (60mm or 40mm) support boss for Raven dishes

S Band LNB c120 flange to WR 75 flange waveguide transition.

Spacer -

23mm to 40mm spacer for the Raven feedhorn.

Transision -

c120 flange to WR 75 flange waveguide transition.

Primesat prime focus feedhorn

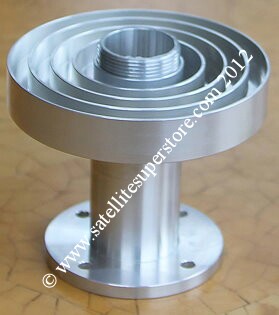

Primesat prime focus feedhorn

Primesat feed support boss

Stainless steel feed support boss

Yellow cap
For prime focus dishes

Primesat feedhorn only -

Primesat prime focus feedhorn F/D 0.41

Primesat feedhorn with C120 flange LNB -

Primesat feedhorn with single Inverto Black Pro c120 LNB

Primesat feedhorn with twin Inverto Black Pro c120 LNB

Primesat feedhorn with quad Inverto Black Pro c120 LNB

Primesat feedhorn with quatro Inverto Black Pro c120 LNB

Primesat feedhorn with quatro Primesat Platinum c120 LNB
Primesat prime focus feedhorn with c120 Primesat quatro LNB
Feedhorn supporting clamps -

Primesat feed support boss (No.1) For all 3 arm prime focus dishes.

Primesat stainless steel feed support boss all 3 arm prime focus dishes.

c120 flange to WR 75 flange waveguide transition.

Feedhorn supporting clamps -

Primesat feed support boss (No.1) For all 3 arm prime focus dishes.



Primesat stainless steel feed support boss all 3 arm prime focus dishes.



Feedhorn yellow cap

Transision -

c120 flange to WR 75 flange waveguide transition.






Primesat prime focus feedhorn
Primesat prime focus feedhorn

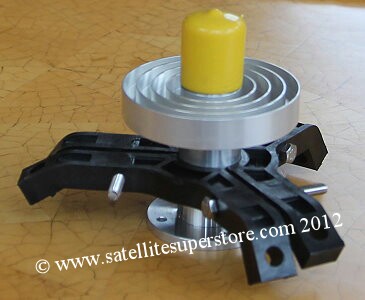

Primesat feed support boss
Stainless steel feed support boss
For prime focus dishes

Primesat feedhorn only -

Primesat prime focus feedhorn F/D 0.41

Primesat feedhorn with C120 flange LNB -

Primesat feedhorn with single Inverto Black Pro c120 LNB

Primesat feedhorn with twin Inverto Black Pro c120 LNB

Primesat feedhorn with quad Inverto Black Pro c120 LNB

Primesat feedhorn with quatro Inverto Black Pro c120 LNB

Primesat feedhorn with quatro Primesat Platinum c120 LNB

Primesat prime focus feedhorn with c120 Primesat quatro LNB
Feedhorn supporting clamps -

Primesat feed support boss (No.1) For all 3 arm prime focus dishes.

Primesat stainless steel feed support boss all 3 arm prime focus dishes.

c120 flange to WR 75 flange waveguide transition.

C Band professional dual polarity feedhorn C Band professional single polarity feedhorn C Band feed support boss C Band feed support boss Dielectric plates

C Band menu page

C Band feedhorns

C Band professional dual polarity OMT feedhorn

C Band professional dual polarity OMT feedhorn with two C Band LNBs


C Band professional single polarity feedhorn

C Band professional single polarity feedhorn with one C Band LNBs


Additional

C Band offset feedhorn with feed support boss

C Band prime focus feed support boss

Primesat C Band stainless steel feed support boss all 3 arm prime focus dishes.

Dielectric plates

C Band menu page


Primesat LNBF for prime focus dishes. Primesat LNBF for prime focus dishes. Integrated LNB with feedhorn. Universal fit. Ku Band.

Advice

Feedhorn advice



Advice. The difference between offset and prime focus dishes



LNBs

primesat Platinum single LNB Single LNBs 40mm clamp single LNBs -
Primesat Platinum LNB
Inverto Black Ultra LNB
Invacom LNB

Inverto narrow feed LNB
c120 flange single LNBs -
Inverto Black Pro C120 LNB
Invacom C120 LNB

Primesat LNBF for prime focus dishes
Primesat Platinum twin LNBs Twin c120 flange LNBs

40mm clamp twin LNBs -
Primesat Platinum twin
Inverto Black Ultra twin
Icecrypt compact twin
Invacom twin

Inverto narrow feed
c120 flange twin LNBs -
Inverto Black Pro C120 twin
Invacom C120 twin


Primesat Platinum Quad LNBs Inverto Black Ultra Quad LNBs Inverto narrow feed LNBs Inverto c120 flange LNBs 40mm clamp quad LNBs -

Primesat Platinum quad

Inverto Black Ultra quad

Icecrypt Quad

Invacom Quad

Inverto narrow feed





Sky mini dish LNB -

Sky mini dish quad





c120 flange quad LNBs -

Inverto C120 flange Black Pro quad LNB

Invacom C120 flange quad LNB

For Sky HD and Sky mini dishes.
Sky mini dish quad
Sky mini dish octo



For Sky Q and Sky mini dishes.
Sky Q twin LNB
Sky Q Hybrid LNB



For Sky Q and standard dishes. 40mm clamp.
Sky Q LNB


Sky Q interface
(Convert your existing quad LNB to Sky Q)


Primesat Platinum Quatro LNBs Inverto Black Ultra Quatro LNBs Inverto Black Ultra Quatro LNBs Primesat c120 flange  Quatro LNBs 40mm clamp quatro LNBs -



Primesat Platinum quatro LNB




Inverto Black Ultra quatro




Inverto narrow feed quatro




Invacom quatro LNB






c120 flange quatro LNBs -


Inverto C120 quatro LNB

Invacom C120 quatro LNB

Primesat C120 quatro LNB.

3 sat triple monoblock Monoblocks

Inverto 3 degree twin monoblock

brackets
3 sat triple monoblock -
Astra 2, Asta 1 and 23E or use just for Astra 2 & Astra 1

6 degree monoblocks -
Inverto White Tech single
Inverto Black Pro twin
Inverto Black Pro quad

4.3 degree monoblocks -
Inverto Black Pro single
Titanium single
Duo quad

3 degree monoblocks -
Inverto Black Pro single
Technomate single
Inverto Black Pro twin



Brackets -
3-9 degree universal kit
3-6 degree Triax TD bracket
Transparent dish bracket
Triax 20 degree TD bracket

Universal 3 sat LNB kits
Universal 4 sat LNB kits


Primesat Octo 8 output LNB Primesat Platinum Octo LNB

Sky Octo LNB

c120 flange Octo LNB

Inverto Mulitconnect system kits fit ANY dish.
Inverto 3 sat kits
Inverto 4 sat kits
3 sat 80cm dish kit
3 sat 85cm clear dish kit
4 sat 90cm dish kit
4 sat 1.0m dish kit
3/4 sat multiswitch dish kits


Triax twin KA band LNB

Twin Ka band

Triax twin KA band LNB




Inverto unicable II programmable LNB Inverto unicable SCR LNB

Single cable SCR Unicable LNBs

Inverto unicable II programmable LNB
24 user bands


Inverto unicable II programmable LNB
32 user bands








Inverto unicable SCR LNB



Click here for the Inverto LNB menu page.

Click here for every LNB and feedhorn on one long page.



What is an LNB ?

An LNB is the box of electronics on the end of the dish boom arm. It acts like a aerial masthead
amplifier. The signal (microwaves) reflect off the dish and into the feedhorn to the LNB.
Here it is amplified and the frequency is lowered. The lower the noise figure the better.
i.e. in simple terms, it pulls in the signal better. The signal is then sent down the coaxial cable to the
satellite receiver. Quality digital cable should be used. (not CT100 or RG6)
See our Satellite Cable for good digital cable.
A universal LNB covers the KU band from 10700 to 12750Ghz with LO frequencies of 9750 and 10600.
There are Single LNBs, Twin LNBs, Quad LNBs, Octo LNBs and Quatro LNBs. Single have one output,
twin - two outputs, quad - 4 outputs and Octo - 8 outputs. All outputs are the same and are equivalent to
a single LNB. A twin LNB could be used for two single tuner satellite receivers or a twin tuner satellite receiver
Quatro LNBs have 4 outputs and they are all different. Quatro LNBs can only be used with multiswitches.
There are also 40mm clamp LNBs and C120 LNBs. This refers to the way they fit on a dish. A 40mm LNB has an
integral offset feedhorn and fits to the most common types of offset dishes.
C120 flange LNBs fit on a separate feedhorn and could be used on either offset or prime focus dishes.
They are usually used on specialist high quality dishes.
Both 40mm and C120 LNBs could have single, twin, quad or quatro outputs.
At the moment only 40mm LNBs have octo outputs.
Using a quatro LNB and a multiswitch it is posible to have many more outputs. Even 32 outputs or larger.
A Sky mini dish LNB uses a fixing that is none standard and a tongue fits into the end of the boom arm
To find out more about LNBs and how the perform go to Getting More Signal.



Prime Focus and Offset Dishes.

Prime Focus Dish Prime Focus Dish

A 1.2m prime focus dish is shown above.
This type of dish is circular NOT oval. It has 3 feed support arms (some use 4 arms) and the 3 arms
converge in the centre. Each arm is 120 degrees apart. The feedhorn uses concentric scalar rings.
The concentric scalar rings reduce noise and improve signal to noise ratio with prime focus dishes.
An offset dish (See below) is oval and is higher than it is wide (some are wider than they are high).
They use either one feed support arm (at the bottom of the dish - see bottom left hand picture) or 3
feed support arms (again all in the bottom 1/2 of the dish - see bottom right hand picture).
Many offset dishes use a standard 40mm clamp LNB but some more expensive specialised offset dishes
also use a feedhorn If a feedhorn is used, a c120 flange LNB is bolted to it.

Offset dish with one support arm Offset dish with three support arm

Prime Focus Dish

As a general rule the two types of dishes are simply two ways of doing the same job, however, an offset
dish, if well engineered, usually has significantly more gain than the prime focus dish. It is never
really that simple. It is true that petalised offset dishes usually have poor gain but a one-piece
well engineered prime focus dish can be better than a poorly engineered offset dish and some very
good prime focus dishes can have the same gain as a good offset dish of the same size.
As usual you get what you pay for. Cheap prime focus petalised dishes are to be
avoided and we don't sell them.
Prime focus dishes probably look better than offset dishes as they point upwards.

Update Feb. 2011 -
See our new 1.4m prime focus dishes at fixed 1.4m prime focus dish and motorised 1.4m prime focus dish
These prime focus dishes wll soon be available with C Band LNB options using the products on this page.

Primesat 1.4m Dish Primesat 1.4m Dish



(All prices on this web site include VAT.)

Links to menu pages,

Catalogue Contents Page. A summary of all pages. More products.
ADVICE Pages. Frequently Asked Questions. (FAQs) Read and learn!

Menu pages.

Satellite receivers menu page.
Fixed satellite dishes menu page.
Motorised satellite dishes menu page.
2, 3 or 4 satellite on a fixed dish menu page.
Clear transparent dishes menu page.
Motorised satellite systems menu page.
V Box menu page.
Satellite dish motors menu page.
Satellite systems menu page.
Caravan / Motorhome / RV Satellite menu page.

Ku, Ka, Universal and programmable LNBs menu page.
feedhorns menu page.
C Band LNBs and feedhorns menu page.

Vu+ receivers menu page.
Freesat receivers menu page.
Humax receivers menu page.
Sky receivers menu page.
Sky accessories menu page.
Technomate receivers menu page.
French TV and Italian TV receivers menu page.
Edision receivers menu page.
Technisat receivers menu page.
Sab receivers menu page.
Twin tuner receivers menu page.
High definition receivers menu page.
Linux receivers menu page.

Multiswitches menu page.

Satellite finder meters menu page.
Wall mounts and ground stands menu page.
Installation equipment menu page.
Cable menu page.
Diseqc switches and motors menu page.

Optical LNBs and equipment menu page.
Satellite accessories menu page.
TV, FM and DAB aerials menu page.
cams menu page.
adult cards menu page.
Index of all products menu page.



See our other web site at- www.primesat.eu

This site includes many products that are exclusive to the Satellite Superstore.
The site contains -
• Products that we manufacture (e.g. We have manufactured heavy duty wall mounts and ground stands since 1991).
• Selected products which have our own Primesat brand name and have been prepared to our specifications.
• Selected products where we have been appointed the authorised UK or European distributor by the manufacturer.
www.primesat.eu is an information site. Here you will find full specifications and many detailed pictures.
To buy any of these products, simply order them on this web site.



Link to our own satellite museum site

Satellite Museum. A museum of vintage satellite receivers.
See
www.satellitemuseum.com

Satcom 7700 satellite receiver.

For old satellite receivers with knobs on and read about "A History Of Satellite TV".

Also see www.rewindmuseum.com. A Museum of vintage consumer electronics.
Vintage reel to reel video recorders. Vintage VHS and Betamax VCRs. Vintage video cameras. Vintage
Laser Disc. Vintage Computers. Old telephones. Old brick mobile phones. Vintage Hi Fi, Old reel
to reel audio and early audio cassette decks. Including, the history time line of vintage
consumer electronics ... and much more .....

Sony 2400 portable reel to reel video

It is well worth a visit.
Only The Satellite Superstore brings you
great products, advice and it's own museum.


Rewind Museum



You may be interested in two other web sites.

Hard tonneau cover for the 1947-53 Chevy truck. Hard tonneau cover for the 1947-53 Chevy truck.

www.1952chevytruck.com
This web site shows all of the restoration process and the modifications to this truck.
In addition, there is a hard high quality tonneau cover on a new web site
at www.classictonneaucover.com for the 1947-53 Chevy truck.


www.classictonneaucover.com



Contacting us.
Unlike many other companies we are happy to answer questions on the phone.
Tel. (UK) 01207 544664 and 01207 544224
International Tel. + 44 1207 544664.
Before sending questions via e-mail please check-out our Frequently Asked Questions as this could save time.
If you have any questions & comments regarding this site's content, or you need advice please ....
click here to go to our contact forms.



Copyright © 2019 Vision International. All rights reserved.
