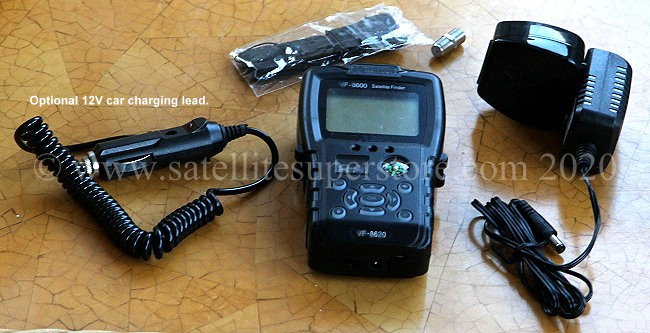

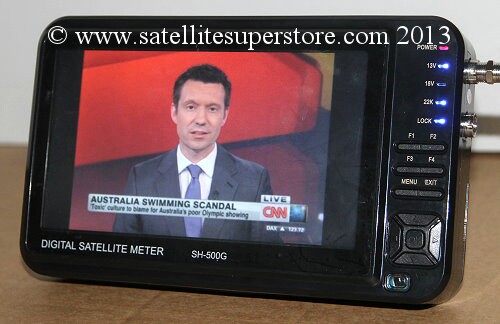

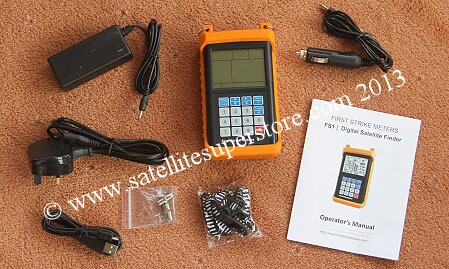

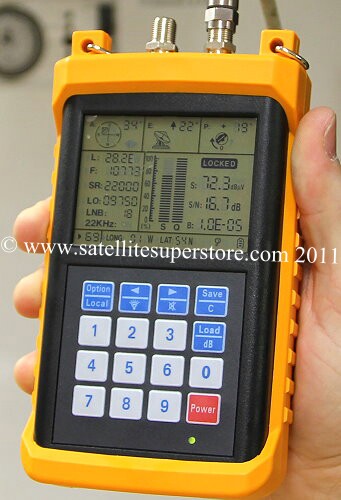

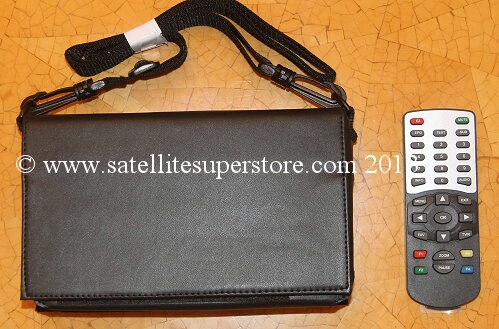

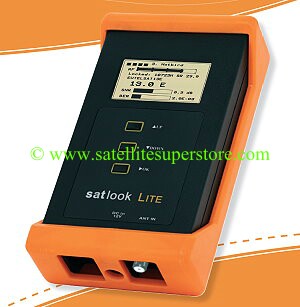

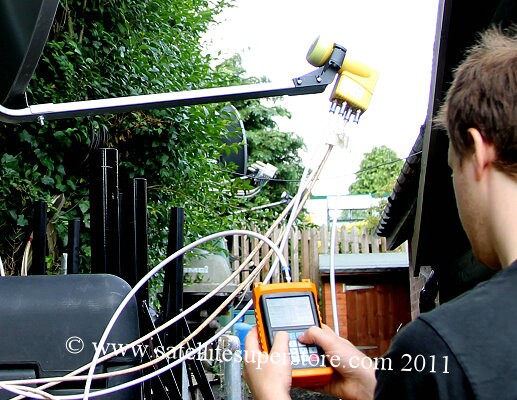

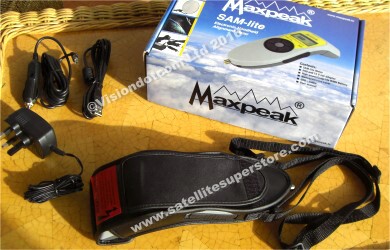

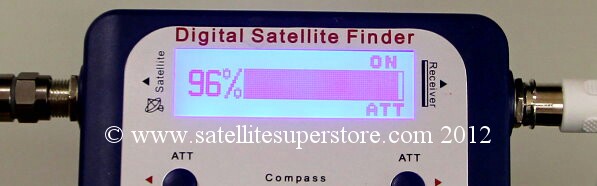

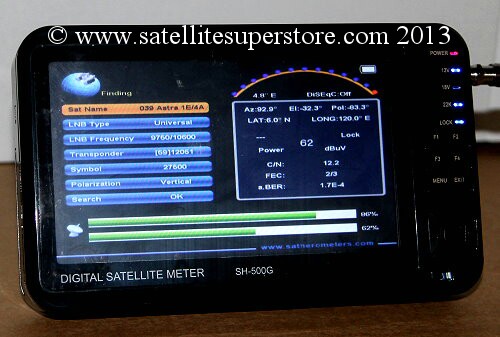

This meter is ideal for installers, mobile caravan use or DIY. Since it identifies the satellite, set up time is usually under two
minutes. Please don't mix this meter up with others you may find on the Internet which look similar. These meters are specially
built and prepared for the Satellite Superstore. This includes many satellites. This includes Astra 2 for Sky or freesat, Astra 1,
Hotbird (13E), Thor (1W), Hispasat (30W) and many others. Indeed all of the satellites we can see in our sky with a reasonable
sized dish are included. If there are changes in the future, satellites can be added or edited using the keypad. To use the meter,
you switch on using a proper on-off switch (so no battery drain while off) then select "Installation", then "Dish setting".

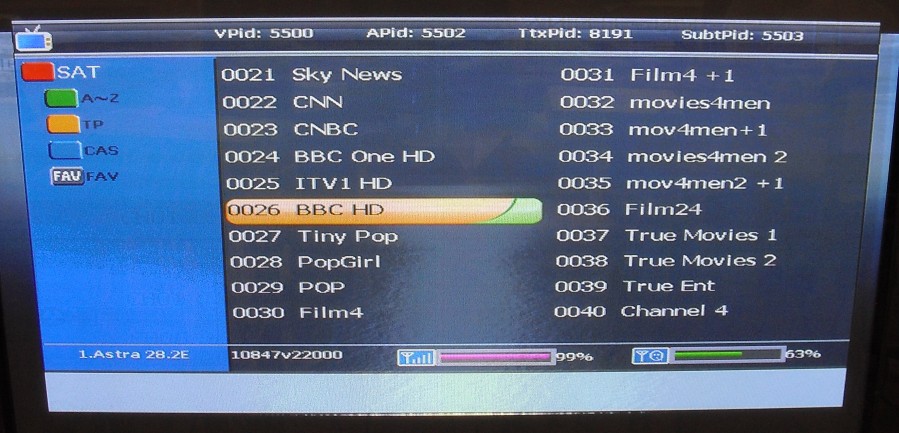

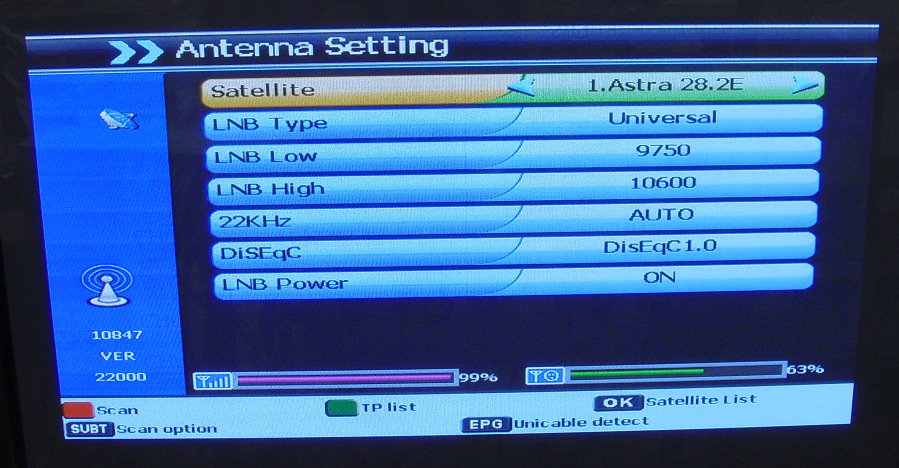

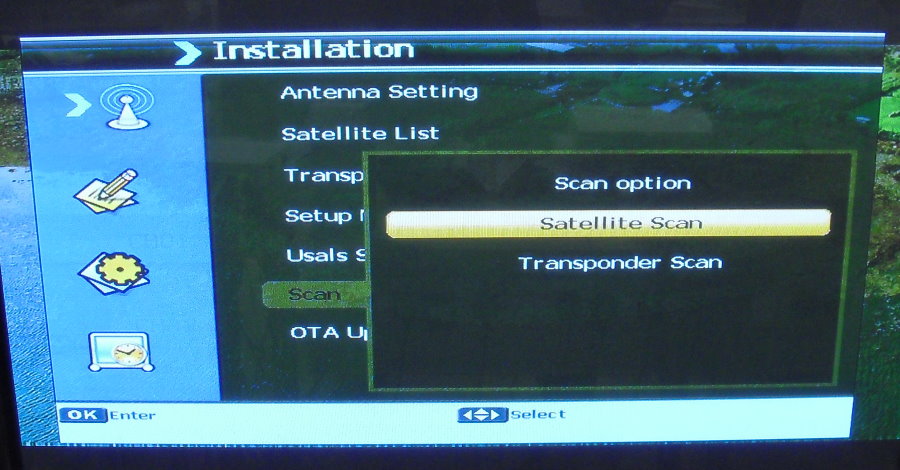

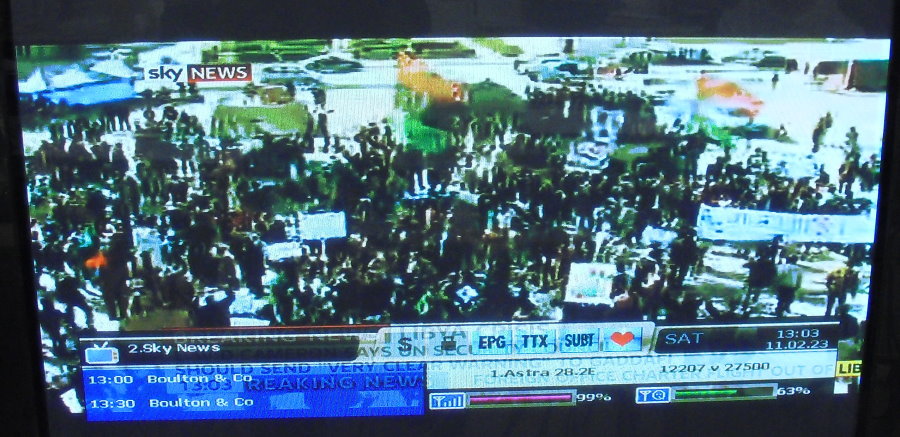

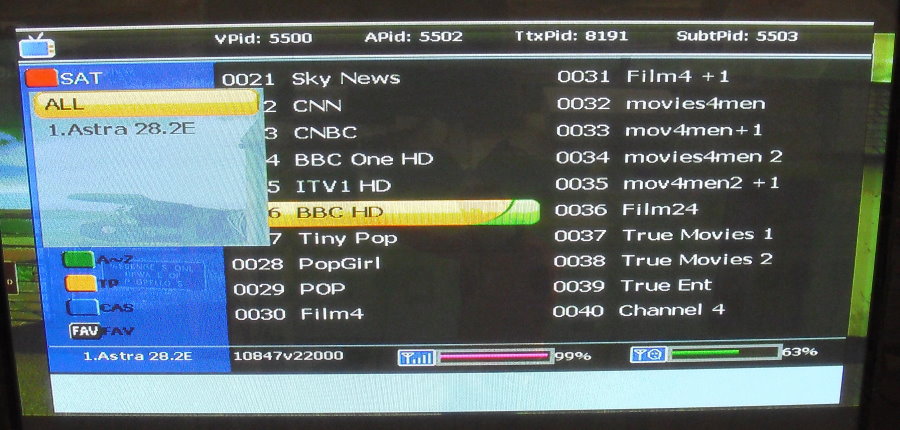

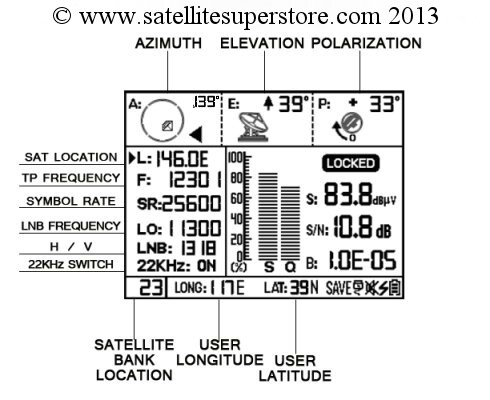

Select 28.2E Astra 2. At the bottom of the screen are the signal strength and signal quality meters and a large quality LED
display on the meter all ready to start. It could not be easier. After the first use, the meter defaults to the last satellite
chosen and so if it is only going to be used for (e.g.) Astra 2 for Sky or freesat, selecting the satellite is not required as
it is already there. All you have to do is turn on the meter, press OK twice and it is ready to use.

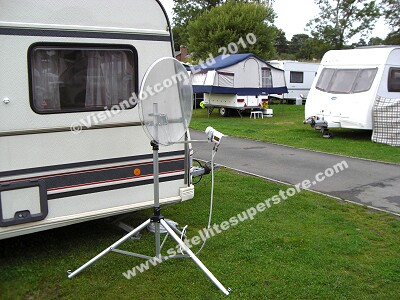

Recently is was taken abroad for use with a caravan. The tour included Amsterdam, a forest in Belgium, near Paris, La Rochelle,
Normandy and back to Amsterdam (for the ferry). The 60cm Primesat caravan kit was used. Perfect results and all channels were
received in all of those locations with this dish. The meter was fantastic. In all but one location, it found the satellite
in under 1 minute. The location which took a bit longer was in the forest. (See pictures above) Here it was necessary to find
a gap / hole in the trees about 12m away from the caravan. Using the app "sat finder lite" in an iphone, a couple of gaps were
located as possible areas for Astra 2 and Astra 1 respectively. The gap for Astra 2 was quite small. Spending 1 minute looking
for Astra 2 and not finding it, it was decided to locate Astra 1 first as this is often an easier satellite to find when abroad and
the gap in the trees was a bit bigger. This was found with 1 minute. Re-checking for Astra 2 with the app / phone and the tripod
was adjusted left about 40cm. With another few minutes Astra 2 was found. The total set up time was 5 minutes. Other regular
Dutch people nearby had previously said it was not possible in that part of the forest and they were all amazed when they saw
it all working. This meter is highly recommended. This meter is at a very competitive price. See the FS700 above.

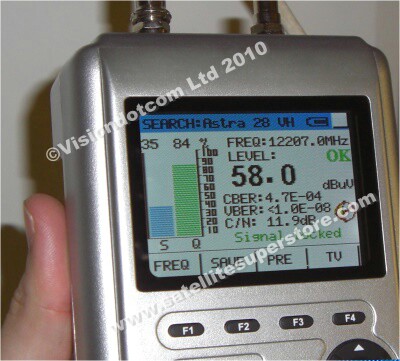

DVB-S and DVB-S2 (SD and HD). Strength, quality, BER and PWR. Audio indication of signal lock. Supports DiSEqC 1.0 and 1.1
and 22KHz tone. LNB short circuit protected. UK power supply / charger 12/18V 300mA. 7.5V 800mA battery. Shock protecting
yellow cover. USB port - software upgradeable. Integrated compass, Integrated torch. Cary strap and USB lead included.
As usual full telephone support (normal BT number) is available for all of our customers.
Dishes sold separely (scroll down).

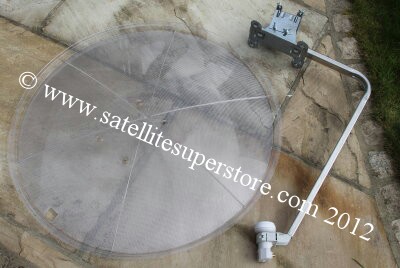

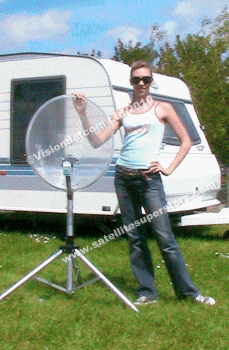

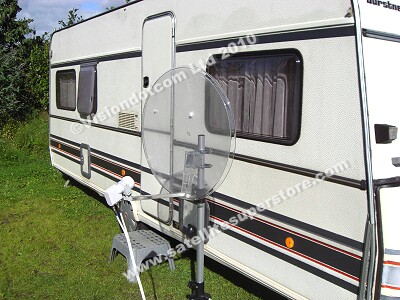

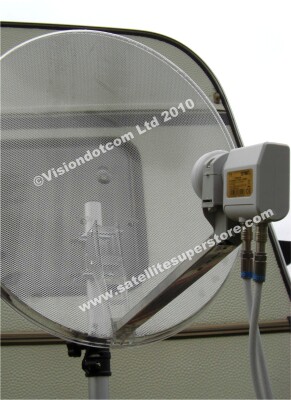

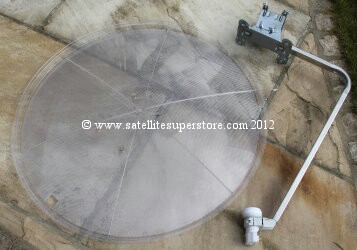

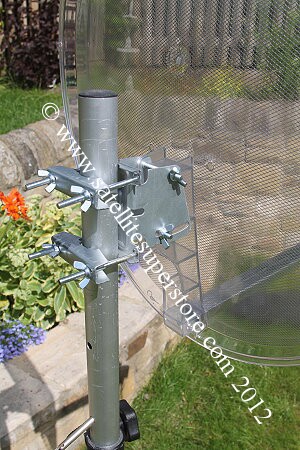

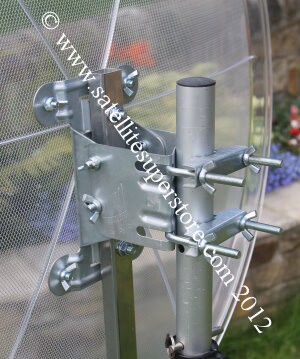

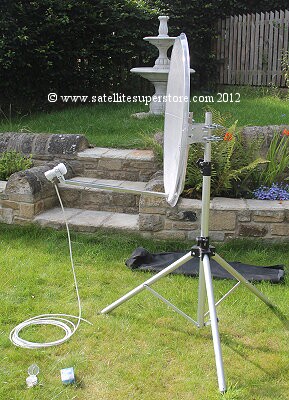

Clear transparent 85cm dish

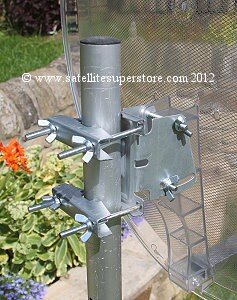

with wing nuts
Ideal for mobile / caravan use. Ideal for Freesat, Sky / BBC etc. if touring Europe, southern France etc.
This dish has been specially modified for caravan / motorhome use by the Satellite Superstore
It is a special version not the same as those on our fixed and motorised pages and it also
uses wing nuts for fast erection and adjustment.
This new 85cm dish is clearer than the older type we used to sell and is stronger with re-inforcing structures
on the back of the dish. The new dish also uses a slimmer back plate which adds to the abilty to see right
through it. - Transparent 85cm dish with or without 0.1dB Primesat LNB.
An optional single
Primesat Platinum high performance 0.1dB LNB from "
Primesat Professional Products" is available.
This LNB is ideal for low signal areas. Suitable for HD. Suitable for 3D. Suitable for 4K. A very high quality product.
White is an excellent colour for an LNB for two reasons. The first is it looks better. When looking up at a satellite dish,
there is mostly a light or cloudy sky and so white against the sky blends in very well. The second reason is more technical.
White keeps the LNB's internal heat in during the winter and in the summer white reflects the external heat from the sun.
This keeps the LNB cooler and results in less extreme temperature cycling. Temperature cycling should be kept to a minimum
for performance to be maintained. A white cap is even more important as it reflects the suns heat (which can focus on the cap)
and prevent a hole from burning through the cap. If there was a hole in the cap the spiders can crawl in and block the signal.
Only the TV signal should go through the cap, not the heat. In addition, there are better connections due to gold connectors.
It is possible to upgrade the single LNB to a
twin,
quad,
octo or
quatro LNB using the
LNB upgrade options
These upgrade options ONLY apply if you are ordering a dish with a single LNB (you pay
the difference in price - or less) They do not apply if you are ordering a dish without an LNB.
Shipping options. Discounted shipping on all web orders.
UK -
mainland UK delivery is included in the price, (
VAT info.) (
Stock levels.)
so choose "
Mainland UK delivery included" - UK shipping option No 1 (or
priority options 4-7).
For "
UK offshore islands including Northern Ireland" many items including dishes up to 1.0m choose the £15 - UK option No 2.
International - Republic of Ireland - choose the £15 "
fixed price
multiple items to Eire" shipping option
International - within the EU - choose the £38 "
up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "
International shipping quote by e-mail" shipping option.
Please note, although not guaranteed, many 1-3 day standard UK deliveries are actually arriving next day if the order
is received before our cut-off times but there is also a next day priority delivery option at only £6.50 if required

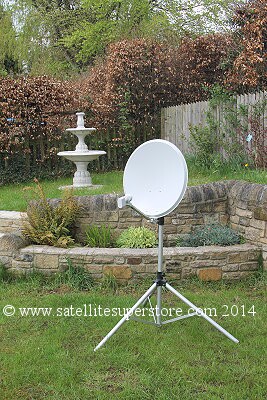

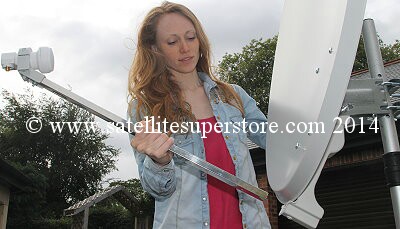

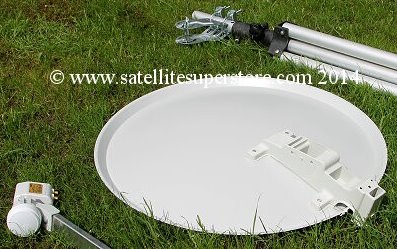

Primesat easy adjust, push on arm, 60cm dish with 0.1dB
Primesat LNB. Wing nuts. Light or dark grey.
(Stand not included)
When carried in a caravan the dish would be mostly pre-assembled and stored while travelling with the push fit arm removed.
The first time we assembled this dish it
took less than 60 seconds. It would be even faster if we had done it before.

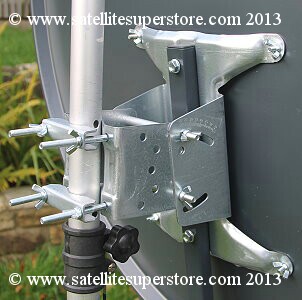

The bolts that go through the dish reflector screw into
captive threads so nuts on the back are not needed. The elevation
adjuster clips on and two nuts adjust and hold it tight. The
push fit LNB support arm takes one seconds to locate.
Corrosion protection is provided using a
Polyester RAL7035 powder coating dish reflector. The one piece back plate
is an ABS type of injection molded
strong plastic integrated design. The elevation adjuster and pole clamps are
galvanised. The LNB support arm (boom arm) is made of
aluminium. The whole dish kit is

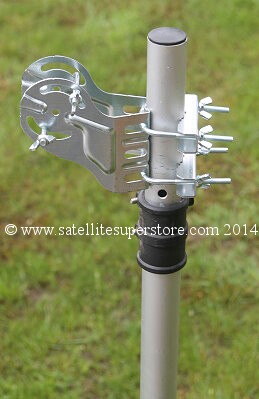

light weight. The elevation
adjuster can remain fitted to the top of the tripod. The dish just clips on and adjusts with 2 wing nuts. Usually light grey
looks best against caravans but dark grey is also available. This dish will work on Astra 2 at 28E for freesat or Sky TV
on all channels in the UK and Northern France. It will work in southern France on many channels but may lose
the weaker channels. It can also be used for Astra 1 at 19E from the UK and most of western Europe. Stand not included.
To buy the complete kit with stand
click here
An optional single
Primesat Platinum high performance 0.1dB LNB from "
Primesat Professional Products" is available.
This LNB is ideal for low signal areas. Suitable for HD. Suitable for 3D. Suitable for 4K. A very high quality product.
White is an excellent colour for an LNB for two reasons. The first is it looks better. When looking up at a satellite dish,
there is mostly a light or cloudy sky and so white against the sky blends in very well. The second reason is more technical.
White keeps the LNB's internal heat in during the winter and in the summer white reflects the external heat from the sun.
This keeps the LNB cooler and results in less extreme temperature cycling. Temperature cycling should be kept to a minimum
for performance to be maintained. A white cap is even more important as it reflects the suns heat (which can focus on the cap)
and prevent a hole from burning through the cap. If there was a hole in the cap the spiders can crawl in and block the signal.
Only the TV signal should go through the cap, not the heat. In addition, there are better connections due to gold connectors.
It is possible to upgrade the single LNB to a twin, quad, octo
using the LNB upgrade options
Shipping options. Discounted shipping on all web orders.
UK -
mainland UK delivery is included in the price, (
VAT info.) (
Stock levels.)
so choose "
Mainland UK delivery included" - UK shipping option No 1 (or
priority options 4-7).
For "
UK offshore islands including Northern Ireland" many items including dishes up to 1.0m choose the £15 - UK option No 2.
International - Republic of Ireland - choose the £15 "
fixed price
multiple items to Eire" shipping option
International - within the EU - choose the £38 "
up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "
International shipping quote by e-mail" shipping option.
Please note, although not guaranteed, many 1-3 day standard UK deliveries are actually arriving next day if the order
is received before our cut-off times but there is also a next day priority delivery option at only £6.50 if required

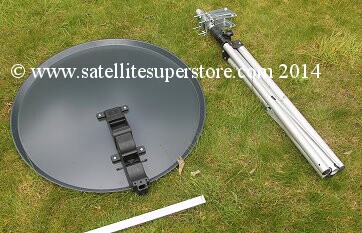

Primesat 85cm "easy adjust" light weight
high gain dish with wing nuts.
(Stand not included)
When carried in a caravan the dish would be mostly pre-assembled and stored while travelling with the push fit arm removed.
High quality high gain easy adjust. Dark grey. Light weight.
This is a quality precision light weight dish at an excellent price.
The first time we assembled this dish it
took less than 60 seconds. It would be even faster if we had done it before.

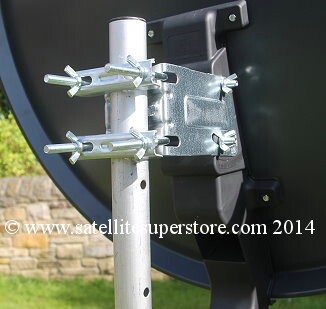

The bolts that go through the dish reflector screw into
captive threads so nuts on the back are not needed. The elevation
adjuster clips on and two nuts adjust and hold it tight. The
push fit LNB support arm takes one seconds to locate.
Corrosion protection is provided using a
Polyester RAL7035 powder coating dish reflector. The one piece back plate
is an ABS type of injection moulded
strong plastic integrated design. The elevation adjuster and pole clamps are
galvanised.
The LNB support arm (boom arm) is made of
aluminium. This
lightweight dish is only
1.9Kg. Gain 36.4dB. The elevation
adjuster can remain fitted to the top of the tripod. The dish just clips on and adjusts with 2 wing nuts. Usually light grey
looks best against caravans but dark grey is also available. This dish will work on Astra 2 at 28E for freesat or Sky TV
on all channels in the UK and Northern France. It will work in southern France on many channels but may lose
the weaker channels. It can also be used for Astra 1 at 19E from the UK and most of western Europe.
An optional single
Primesat Platinum high performance 0.1dB LNB from "
Primesat Professional Products" is available.
This LNB is ideal for low signal areas. Suitable for HD. Suitable for 3D. Suitable for 4K. A very high quality product.
White is an excellent colour for an LNB for two reasons. The first is it looks better. When looking up at a satellite dish,
there is mostly a light or cloudy sky and so white against the sky blends in very well. The second reason is more technical.
White keeps the LNB's internal heat in during the winter and in the summer white reflects the external heat from the sun.
This keeps the LNB cooler and results in less extreme temperature cycling. Temperature cycling should be kept to a minimum
for performance to be maintained. A white cap is even more important as it reflects the suns heat (which can focus on the cap)
and prevent a hole from burning through the cap. If there was a hole in the cap the spiders can crawl in and block the signal.
Only the TV signal should go through the cap, not the heat. In addition, there are better connections due to gold connectors.
It is possible to upgrade the single LNB to a twin, quad, octo
using the LNB upgrade options
These upgrade options only apply if you are ordering a dish with a single LNB (you pay the difference in price - or less)
They do not apply if you are ordering a dish without an LNB. To buy the complete kit with stand
click here
Shipping options. Discounted shipping on all web orders.
UK -
mainland UK delivery is included in the price, (
VAT info.) (
Stock levels.)
so choose "
Mainland UK delivery included" - UK shipping option No 1 (or
priority options 4-7).
For "
UK offshore islands including Northern Ireland" many items including dishes up to 1.0m choose the £15 - UK option No 2.
International - Republic of Ireland - choose the £15 "
fixed price
multiple items to Eire" shipping option
International - within the EU - choose the £38 "
up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "
International shipping quote by e-mail" shipping option.
Please note, although not guaranteed, many 1-3 day standard UK deliveries are actually arriving next day if the order
is received before our cut-off times but there is also a next day priority delivery option at only £6.50 if required

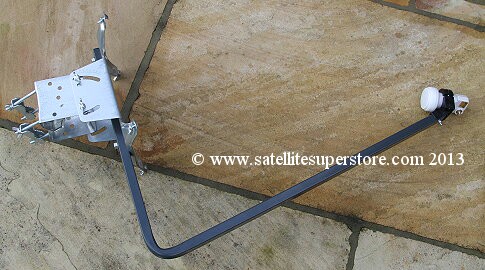

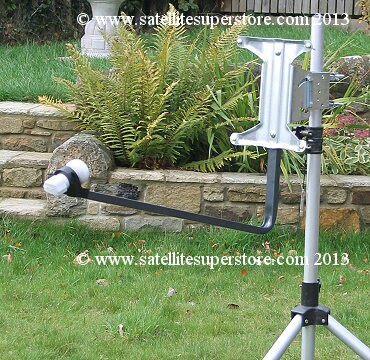

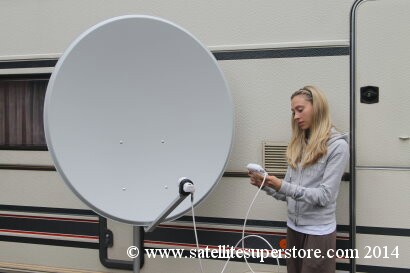

Primesat 1.0m aluminium dish. Low
cost, high quality, high gain. Wing nuts.
High Gain. Aluminium. Easy adjust. Wing nuts included for fast erection.
This is the kit you need when you are touring in Europe! Gain 40.3dB
Lightweight aluminium. The ultimate dish for long distance touring. Total weight of only 6.1Kg. (A steel 1.0m weighs 9.3Kg.)

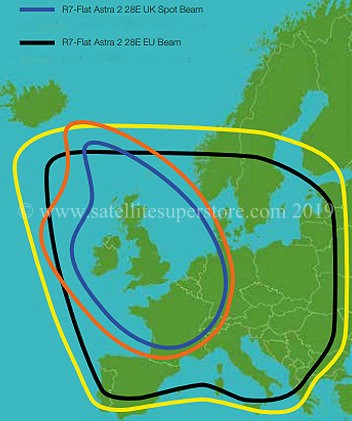

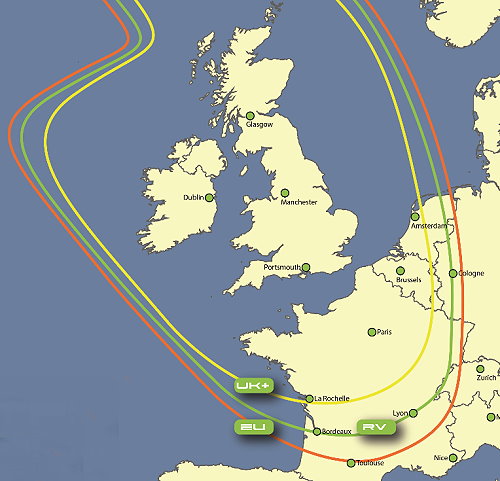

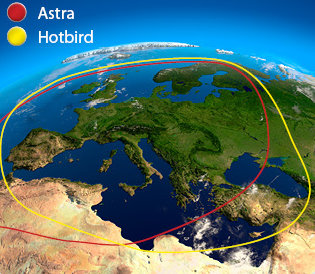

It you draw a line between Bordeaux and Lyon, above that line a 60-85cm dish will be fine for all of the UK channels from
Astra 2 at 28E, however, below that line a larger dish is needed. If a 60-85cm dish is used below that line, a percentage
of channels can still be received but the weaker channels like the BBC and ITV need a 1.0m dish in the south of France.
The 1.0 is also ideal for many other countries and in Spain this dish will work well in many areas but some channels will be
lost even with a 1.0m dish in other areas. The 1.0m dish is really the largest dish that can be easily carried in a caravan
or motorhome so when crossing the Bordeaux and Lyon line, this is the kit to buy. This dish can be erected quickly using the
10 wing nuts provided. Shown in the pictures is one way to carry the dish, just remove the reflector and everything is then flat
pack-able. Alternatively by removing 2 more bolts the dish arm holding the LNB can also be easily removed. Everything is fast
and easy to erect and set up using the wing nuts. This dish weighs only 6.1Kg. (A steel 1.0m dish weighs 10Kg!). The finish
is Polyester RAL7035
powder coating. Contents - Primsat lightweight high gain aluminium dish. Included is the high
performance
Primesat 0.1dB LNB This LNB is ideal for low signal areas. It has the gold connections and is very low
noise. An
ultimate performance LNB. It is possible to upgrade the single LNB to a
twin,
quad or
octo
using the
LNB upgrade options These upgrade options only apply if you are ordering a dish with a
single LNB (you pay the difference in price - or less) They do not apply if you are ordering a dish without an LNB.
Shipping options. Discounted shipping on all web orders.
UK -
mainland UK delivery is included in the price, (
VAT info.) (
Stock levels.)
so choose "
Mainland UK delivery included" - UK shipping
option No 1 (or
priority options 4-7).
For "
UK offshore islands including Northern Ireland by courier" dishes up
to 1.0m choose the £15 - UK shipping option No 2.
International - Republic of Ireland - 1.1m dishes - choose the £15 "
fixed price
multiple items to Eire" shipping option
International - within the eu choose the £89.00 option. Outside of the eu - the "
International shipping quote by e-mail" option.
Dark grey Primesat 1.0m high gain aluminium dish (with wing nuts).
In stock and ready for immediate shipping.
Order code CAP11WNW
Only £104.95
Primesat 1.1m aluminium dish. Low
cost, high quality, high gain. Wing nuts.
High Gain. Aluminium. Easy adjust. Wing nuts included for fast erection.
Optional 0.1dB
Primesat Platinum LNB. Wing nuts included for fast erection. Now light grey (looks best against light caravans.)
This
aluminium dish has a total weight of only 7.4Kg. (A steel 1.1m weighs 10.7Kg.) The
gain is a massive 41.2dB at
12.75GHhz and the coating is Polyester RAL7035
powder coating. It is available in light grey or very dark grey (almost black).
The
easy adjust AZEL mount on the back of the dish (where elevation is adjusted) is
galvanised. It will clamp to poles
from 35mm to 60mm diameter.
An optional single
Primesat Platinum high performance 0.1dB LNB from "
Primesat Professional Products" is available.
This LNB is ideal for low signal areas. Suitable for HD. Suitable for 3D. Suitable for 4K. A very high quality product.
White is an excellent colour for an LNB for two reasons. The first is it looks better. When looking up at a satellite dish,
there is mostly a light or cloudy sky and so white against the sky blends in very well. The second reason is more technical.
White keeps the LNB's internal heat in during the winter and in the summer white reflects the external heat from the sun.
This keeps the LNB cooler and results in less extreme temperature cycling. Temperature cycling should be kept to a minimum
for performance to be maintained. A white cap is even more important as it reflects the suns heat (which can focus on the cap)
and prevent a hole from burning through the cap. If there was a hole in the cap the spiders can crawl in and block the signal.
Only the TV signal should go through the cap, not the heat. In addition, there are better connections due to gold connectors.
This 1.1m dish is ideal for many satellites when used in the UK.
Extensive testing shows this dish to work very well for the Sky or freesat channels from Astra 2 when tested by customers in
the south of France where signal levels are weak. If you draw a line between Bordeaux and Lyon, above that line a 60-85cm
dish will be fine for all of the UK channels from Astra 2 at 28E, however, below that line a larger dish is needed.
If a 60-85cm dish is used below that line, a percentage of channels can still be received but the weaker channels like
the BBC and ITV need a 1.1m dish in the south of France. The 1.1 is also ideal for many other countries and in Spain this dish
will work well in many areas but some channels will be lost even with a 1.1m dish in other areas. Please note that since further
changes occurred on the Astra 2 satellite on the 5th Feb. 2014 some channels in some parts of southern France may be
temporarily lost in bad weather even with a 1.1m dish. Larger dishes (e.g. 1.2m+) are available if required.
Stand not included. To buy the complete kit with stand
click here
It is possible to upgrade the single LNB to a twin, quad, octo
using the LNB upgrade options
These upgrade options only apply if you are ordering a dish with a single LNB (you pay the difference in price - or less) They do
not apply if you are ordering a dish without an LNB.
Shipping options. Discounted shipping on all web orders.
UK -
mainland UK delivery is included in the price, (
VAT info.) (
Stock levels.)
so choose "
Mainland UK delivery included" - UK shipping
option No 1 (or
priority options 4-7).
For "
UK offshore islands including Northern Ireland by courier" dishes up
to 1.0m choose the £15 - UK shipping option No 2.
International - Republic of Ireland - 1.1m dishes - choose the £15 "
fixed price
multiple items to Eire" shipping option
International - within the eu choose the £89.00 option. Outside of the eu - the "
International shipping quote by e-mail" option.
Using 12 volts.

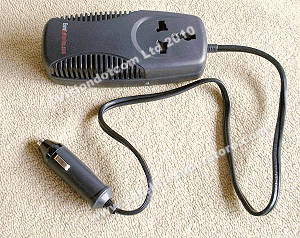

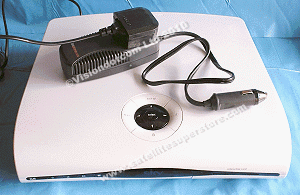

12 Volt inverter.
Plugs into 12V accessory socket. A very compact unit.
Converts a 240 volt satellite receiver for use with a 12 volt supply.
The inverter takes appliances up to 75W and so since satellite receivers use only 30W
(or 40 watts if they are twin tuner with a hard drive)
there is no problem - it is more than capable of running continuously.
Shipping options. Discounted shipping on all web orders.
Small orders - UK delivery is included in the price (includes offshore islands) - so choose,
"
UK - small items - delivery included." - UK shipping option No 3.
All Internationals - EU or outside of the EU - choose the £15 "
up to 1.5 Kg by insured international post."
shipping option
Availability : In stock and ready for immediate shipping.
Order Code INVERTE
Only £24.95
Satellite receivers.
Edision Proton S2 Mk2 HD mini satellite
receiver with remote sensor.
The Edision Proton S2 Mk2 includes a wired remote sensor and a short HDMI lead
so that the receiver can, if required, be stuck on the back of a TV using the
adhesive pads included and controlled from the sensor at the front of the TV
Note. All receivers are sent out in outer packaging to fully protect the manufacturers box. We want the product
to arrive in perfect condition. We are authorised Edision dealers and deal direct with the manufacturer.
Low cost HD free to air receiver with very easy to use menus. Ideal for all satellites.
Full HD Receiver for DVB-S2 Receiving via satellite from free-to-air programs (FTA)
Supports 480i, 480p, 576i, 576p, 720p, 1080i, 1080p DiSEqC 1.0, 1.1, 1.2, 13 / 18V, 0 / 22K LNB Control
DiSEqC Standard, User, Universal, Unicable 4000 TV and Radio Program Places Channel and Favorite Lists
EDIVISION Electronic Program Guide Easy-to-Use Menu System Manual / Automatic Channel Search
1 x HDMI Output for High Definition Audio / Video 1 x SCART Output for audio / video 1 x LED display
1 x USB port, DC12V Software update via USB possible
See below for the fixed and motorised dish options and full channel data programming options.
For a complete system, add the dish kit of your choice by clicking in one of the following links -
Add a 1 sat dish -
60cm Easy Fit
85cm Easy Fit
85cm transparent
60,70,90cm heavy duty
90cm
1.0m
1.1m
1.3m
Add a 2 sat dish -
6 degree 19E & 13E
4.3 degree 9E & 13E
3 degree 16E & 13E or 19E & 13E
20 deg. e.g. 28E & 13E or 19E
Add a 3-sat dish -
85cm Easy Fit
85cm transparent
1m aluminium
90cm heavy duty
85cm Easy Fit with multiswitch
Add a 4-sat dish -
1m aluminium
90cm heavy duty
1.0m aluminium with multiswitch
Add a motorised dish kit -
85cm EasyFit
85cm transparent
90cm
90cm heavy duty
aluminium-
1.0m
1.1m
1.2m
1.4m
1.5m
1.8m
We can scan / load detailed channel data for you -
1 sat
2 sat
3 sat
4 sat
motorised all sats.
It is very worthwhile checking out an
HD Modulator. An HD modulator distributes full
HD via normal coax using an existing
distribution system. Just tune your TV to the satellite channel in 1080p. Also check out
HDMI leads up to
20m long.
Shipping options. Discounted shipping on all web orders.
UK -
mainland UK delivery is included in the price, (
VAT info.) (
Stock levels.)
so choose "
Mainland UK delivery included" - UK shipping option No 1 (or
priority options 4-7).
For "
UK offshore islands including Northern Ireland" many items including dishes up to 1.0m choose the £15 - UK option No 2.
International - Republic of Ireland - choose the £15 "
fixed price
multiple items to Eire" shipping option
International - within the EU - choose the £38 "
up to 5Kg by courier to EU countries" shipping option
International - outside of the EU - choose the "
International shipping quote by e-mail" shipping option.
Please note, although not guaranteed, many 1-3 day standard UK deliveries are actually arriving next day if the order
is received before our cut-off times but there is also a next day priority delivery option at only £6.50 if required
Edision Proton S2 Mk2 HD mini satellite
receiver with remote sensor.
In stock and ready for immediate shipping
Order code, EDISS22
Only £59.95

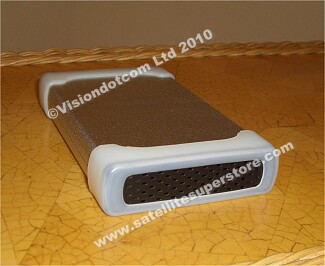

Add a fully prepared 1Tb USB hard drive. (Receiver option).
Attractive matching hard drive enclosure. These hard drives have been specially prepared to work with these satellite receivers
(buying a computer hard drive from a shop is unlikely to work without installing special preparation software.) These are fast
AV hard drives ideal for SD and HD recordings and are fully formatted and tested. Large capacity. USB lead included. Plug
in and use. This is a receiver option only. To buy this item without a receiver go to "
1Tb USB hard drive sold separately".
This hard drive has a £10 discount compared to the "sold separately" price.
In stock and ready for immediate shipping.
Order code OPT1TUSB
Add £89.95

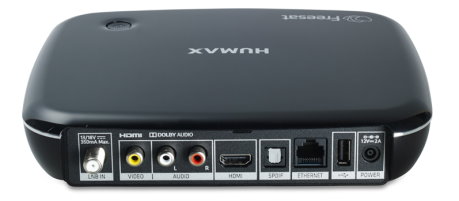

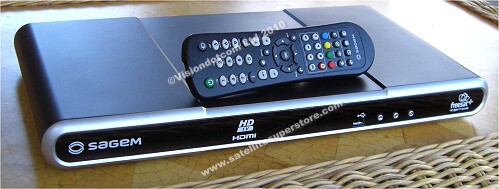

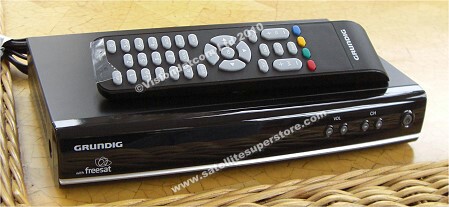

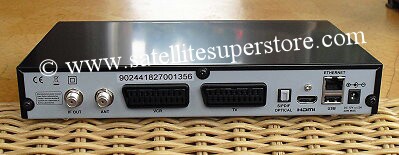

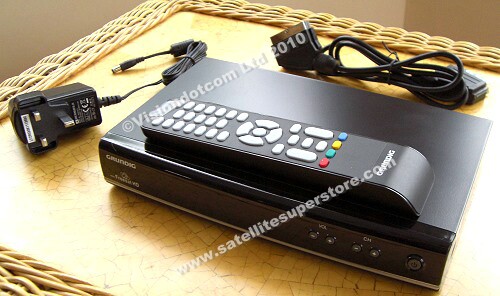

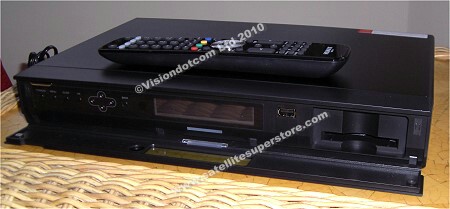

Freesat satellite receivers.
Freesat twin tuner recordable 4K
high definition satellite receivers.
500Gb, 1Tb and 2Tb recordable versions.
Recording up to 1,000hrs in SD (2TB box required). Recording capacity depends on which box you buy, and whether
content is SD or HD. Series Link, Pause and Rewind Live TV, On Demand Players BBC iPlayer, ITV Hub, Netflix,
My5, YouTube, ErosNow, France 24, Pop Fun, UKTV Play, STV Player, Note: On Demand players correct at time,
of publication. May be subject to change. Quick access to On Demand from Remote Yes - BBC iPlayer, ITV Hub,
and Netflix Programme Reminders, TV Tuner Freesat HD and 4K, LNBs Supported Standard / Wideband / Hybrid,
Connectivity Wireless Network and Ethernet, Accessibility Features Audio Description & Subtitles,
Video Output HDMI 2.0, Audio Output HDMI / Digital Optical Audio - TOSLINK
Note - use a
twin LNB or a
twin wideband LNB or a
hybrid LNB (assumes a "standard" dish).
500Gb Freesat twin tuner recordable 4K satellite receivers.
Order code FREE500
Click here to order
1Tb Freesat twin tuner recordable 4K satellite receivers.
Order code FREE1TB
Click here to order
2Tb Freesat twin tuner recordable 4K satellite receivers.
Order code FREE2TB
Click here to order

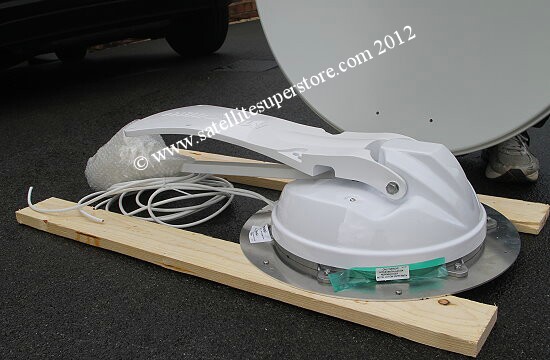

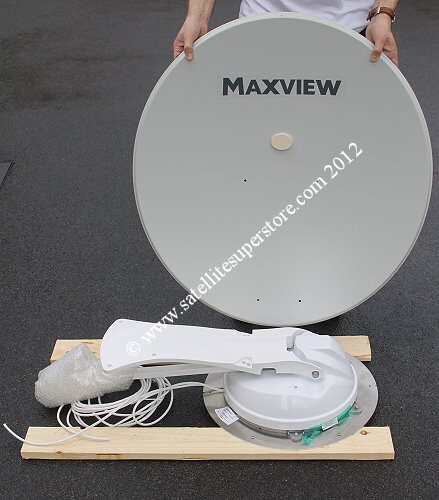

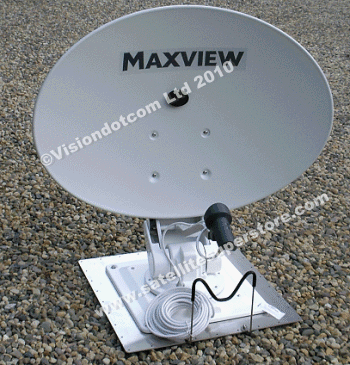

Maxview Mark 3 B2590 Crank-up roof mounting dish kit.
Ideal for Caravans or Motor Homes. Now with twin LNB as standard.
Mk 3 Model. Improved design. Streamlined. Twin LNB.
Please note, this is not an automatic roof folding dish but it is quick and easy to set up.
Low profile, height of kit when folded down : 17cm. Weight of system : 65cm 9 Kg, 85cm 10Kg. Mounting Plate : 50cm x 50cm.
Maxview Omnisat 65cm and 85cm 'Crank Up' satellite dish kit system. Comes with 3 years Maxview guarantee.
Customer Quotes "The ease of the fitting and operation, combined with excellent value
for money, make the Crank Up an obvious choice for any leisure vehicle" Bill, RDH Motorhome Centre.
E-mail - "Hi David, Maxview Crank-up system turned up this afternoon. 2 hours later after reading the manual twice
and having to go out to buy a hole saw & allen key, it was all installed & working fine,
thanks for a great price and service, regards, Bob"
Maxview Mark 3 B2590 Crank-up roof mounting 65cm folding dish kit.
Order code MXCRAT6
Click here to order

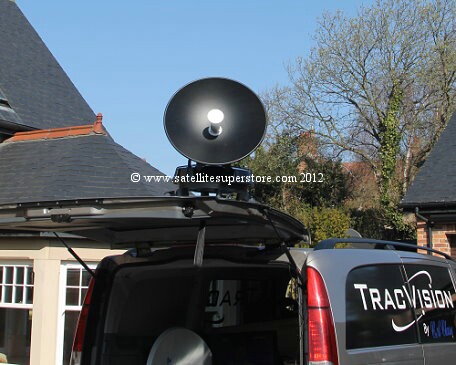

Long page. Scroll down for automatic self-seeking and tracking domes

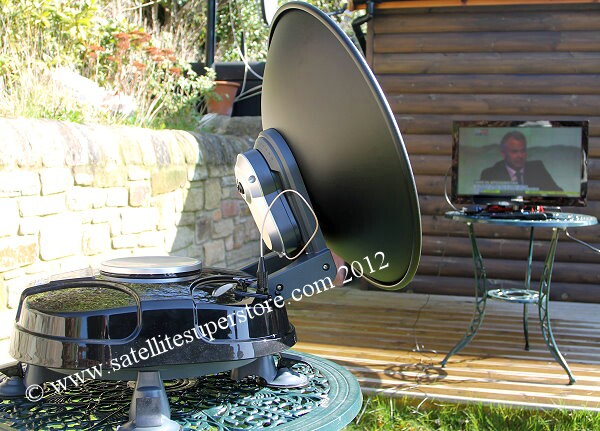

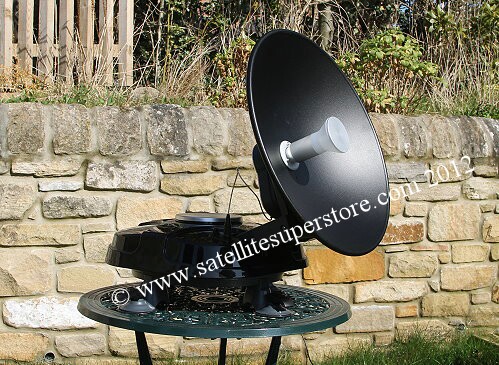

and further down the page, self-seeking automatic folding dishes -

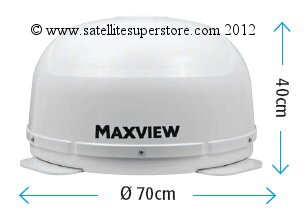

New Maxview VuQube II Automatic.
Twin LNB. MXL023. Roof top or carry.
Fully automatic, twin LNB. Ideal for Caravans, Motor Homes, boats ...
Please note - all VuQube are available in white or dark grey.
Dual Purpose. Carry or roof mounted dome. Strong carry handle.
This is the new fully automatic dual purpose VuQube II. Carry like the VuQube 1 or fit on the roof * like the Maxview MXL011 dome.
Indeed this new product replaces both of the older products. As a roof fitted dome and with twin LNB it is at a very good price
compared to other domes. As a carry around product it is light and very easy to carry and store. It will automatically find the satellite.
Very fast and easy to use. The dish size is equivalent in performance to a 50cm dish. This makes it ideal for the UK and northern France.
(Further south in France there will still be a good spread of channels but you may lose the weaker channels with a dish of this size.)
*Please note the optional roof mounting kit is needed if the VuQube is to be fitted to a roof. This is the first ever dual purpose carry or
roof mount dome. Dimensions - Height (profile) 330mm. Diameter (footprint on roof) 430 (min or width) 490mm (max or length). Weight only
3.5Kg. Powered by a 12 volt control box. Complete with all cables and instructions. Press and go, the convenience of having all your channels
ready to watch in an instant. Clear and easy to use LED control box. Dimensions of compact control box -W130 x D95 x H30mm Due to
the compact size of the control box it will easily go into a cupboard space. Compatible with all satellite receivers - SD, HD, 3D, 4K, Sky,
Freesat, Sky + HD, free to air, all types and makes. Can be placed on the ground, or a table. For permanent roof mounting you need the
roof mounting kit. The controller permits selection of up to 4 satellites. Astra 2 at 28E for Freesat / Sky / English channels. Astra 1 at 19E,
Astra 3 at 23.5E and Hotbird at 13E. TV and Radio coverage throughout the UK and Europe. Maxview package the dome with only a single
cable, however, if you plan on using the twin LNB for 2 receivers or a twin tuner receiver, you will need the extra cable
option.
The Qube comes with our own additional instructions explaining how to
fit the dome onto a roof. Important tips on how to do a good job!
Also note, we are not just a company shifting boxes, we are an automatic system repair centre. You can bring your caravan or
motorhome here if the system needs servicing. Our normal BT phone number help-line is also available to assist all of our customers.
Maxview VuQube II automatic carry or roof mount dome. Twin LNB. MXL023
White
Order code VUQUBE2
Click here to order
Maxview VuQube II automatic carry or roof mount dome. Twin LNB. MXL023
Dark Grey
Order code VUQUBE2B
Click here to order
Maxview cable entry cover. MXL018
This kit is included when you buy a Maxview VuQube, but might be useful for other domes or projects.
It comes with our own additional instructions on how to fit it all correctly (cables and trunking not included).
Order code QUBECAB
Click here to order
SATFI UK+ compact self-seeking dome.
Twin LNB.
Please note we are an authorised Satfi, dealer, service and repair centre.
Compared to the standard SATFI above this "+" offers some more features and is a more streamlined shape.
Features: Simple operation with unique power on demand feature compatible with any satellite receiver or satellite
built-in TV Ultra slimline and low profile design using the very latest high gain Cassegrain antenna, Future proof,
firmware and tracking frequencies easily updateable via USB, Multi satellite capable, DiSEqC controlled automatic
satellite switching, Optional surface mounted controller, Twin LNB for use with 2 TVs or PVR receivers (Sky+/Freesat+)
Fully automatically finds the satellite while stationary. This is a low profile, slimline dome. Designed for use
in the UK but will also work on every channel in Northern France. Further south you may lose some channels. Can be
used on Astra 2 for Sky HD or freesat and 2 on other satellites, Astra 1 and Hotbird where "BBC World" is available.

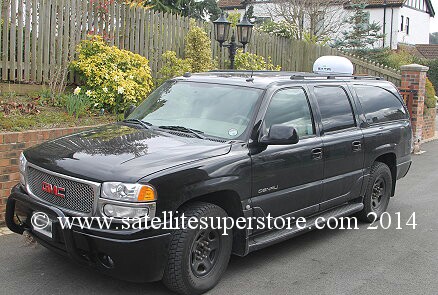

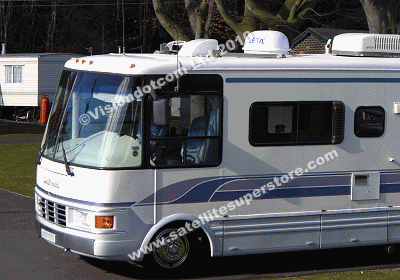

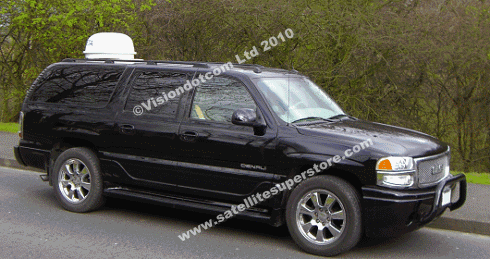

Normally this dome would be fitted to a Motorhome, RV or caravan but the pictures above show it on an SUV. There is
no reason why it could not be used on an SUV but this is mainly to show the size and low profile on the roof of a vehicle.
Dome diameter (footprint on the roof) 70cm. Dome height. Only 26cm. Dome weight Only 9Kg. Fully automatic.
Single cable connection. Ultra compact. Compatible with Sky receivers. Compatible with Freesat receivers.
Compatible with standard free to air receivers. Display panel is included. Tested in Northern Scotland so
suitable for use in all of the UK. If used in Northern France all or most Astra 2 channels will work but further south
a larger dome like the SatFi RV below would be needed. All satellite systems are dependant on "line of site" therefore
(e.g.) parking under trees would result in no signal. As with any satellite system pick your spot on a camp site with
no tall buildings or tall tries close and to the south of you. Remember all satellites are in the southern sky.
Twin LNB. (Ring us for advice on fitting.) The ability to receive all Astra 2 channels is shown in the map, however,
this can change if the satellite provider alters the power levels. The Satfi EU is listed below.
SATFI UK+ self-seeking automatic dome. Twin LNB.
Order code SATFITWP
Click here to order
Satfi EU self-seeking dome. Twin LNB
Includes GPS aided autoskew to peak max signal.
Please note we are an authorised Satfi, dealer, service and repair centre. Also note a Sky Q version of
the satfi EU is available below. (Please note - "Sky Q" is a trade mark of Sky Television).
NEW Quadsat 28E, 19E, 13E & 5W, Weighs Only 12KG, Combined Controller & Receiver,
Simple Operation, Sky & Freesat SD/HD Compatible, High gain EU capable, GPS Autoskew.
Fully automatic. Features: Simple easy to use operation with integrated FTA receiver and antenna controller.
Full remote control operation with magic eye. Ultra compact and lightweight Future proof easily updateable,
2 year RTB manufacturers warranty, All weather operation. Enclosed and protected electronics and mechanics,
(Ring us for advice on fitting.) Compatible with Freesat, Sky HD, standard free to air receivers.
This twin LNB version will allow one channel to be watched while another is recorded when used with twin tuner
receivers. This larger dome will work on all UK channels as far south as the Bordeaux to Lyon
line but south of this line some of the weaker channels will be lost. However, since it is possible to switch to
other satellites, some UK based channels can be found when further away from the UK. e.g. BBC World. Many foreign
channels can also be received. This may not at first seem important but consider the wide range of music channels
that are available or programs with English sound tracks from other countries. Dome height still only 36cm.
Dome weight 12Kg. Dome diameter 83cm (footprint on the roof). Single cable (or twin cable) connection.
The ability to receive all Astra 2 channels is shown in the map, however, this can change if the satellite
provider reduces power levels. The red line is for the Satfi EU. The Satfi UK+ is also listed above.
Also note the Satfi EU has Diseqc control for automatic selection of satellites from the satellite receiver.
Satfi EU self-seeking dome. Auto Skew / GPS. Twin LNB
Order code SATFIEUT
Click here to order
Satfi EU for Sky Q self-seeking dome
(Please note - "Sky Q" is a trade mark of Sky Television).
Includes GPS aided autoskew to peak max signal. Works with Sky Q and freesat.
Also note we are an authorised Satfi, dealer, service and repair centre.
NEW Quadsat 28E, 19E, 13E & 5W, Weighs Only 12KG, Combined Controller & Receiver, Simple Operation,
Sky Q & Freesat SD/HD Compatible, Quad LNB, High gain EU capable, GPS Autoskew.
Fully automatic. Features: Simple easy to use operation with integrated FTA receiver and antenna controller.
Full remote control operation with magic eye. Ultra compact and lightweight Future proof easily updateable,
2 year RTB manufacturers warranty All weather operation. Enclosed and protected electronics and mechanics,
(Ring us for advice on fitting.) Please note - works with Sky Q, Sky HD, freesat and free to air receivers.
With Sky Q you can record several channels while watching another, with freesat 4K twin tuner receivers, you can
watch one channel while recording another channel. The LNB has 4 outputs and so up to 4 satellite receivers can
be used. This larger dome will work on all UK channels as far south as the Bordeaux to Lyon line but south of
this line some of the weaker channels will be lost. However, since it is possible to switch to other satellites,
some UK based channels can be found when further away from the UK. e.g. BBC World. Many foreign channels can
also be received. This may not at first seem important but consider the wide range of music channels
that are available or programs with English sound tracks from other countries. Dome height still only 36cm.
Dome weight 12Kg. Dome diameter 83cm (footprint on the roof). Quad cable connection.
The ability to receive all Astra 2 channels is shown in the map, however, this can change if the satellite
provider changes the power levels. The red line is for this Satfi EU. The Satfi UK+ is listed above.
Also note the Satfi EU has Diseqc control for automatic selection of satellites from the satellite receiver.
Satfi EU for Sky Q self-seeking dome. Auto Skew / GPS. Twin LNB
Order code SATFIEUQ
Click here to order
Traxsat 3220 tracking dome.
This tracking dome has a gain of 31.5dB and is only 20cm high.
Ideal for motorhomes and narrowboats. Low profile.
Tracks the satellite while moving. Fully automatic.
Please note we are an authorised Traxsat distributer, dealer, service and repair centre.
Features: Installed satellites - 28E, 19E, 13E and 27.5W. Fast tracking as you move.
High gain EU capable. Tracks and locks onto the satellite when either moving or stationary.
Compatible with Sky receivers and with freesat and standard free to air receivers. HD and 4K compatible.
High gain. Weighs Only 12.5KG, Height 200mm, Diameter 780mm.
Narrowboats - Very low profile compared to other domes. This gives it an additional application for narrow
boats where low bridges are a problem. When the boat moves, even small movements when tied to the dock,
the dome tracks and stays on satellite.
Motorhomes, RVs and caravans -The low profile of this dome when fitted to a motorhome is better for streamlining
(lower wind drag). On site it is less likely to be seen from the ground. It may even be a lower profile
that an air conditioning unit on the roof.
Reception in the UK - this dome will work on all Astra 2 channels from the north of Scotland to the south coast of England.
Reception in Europe - this larger type dome will work on all UK channels from Astra 2 as far south as the
Bordeaux to Lyon line but south of this line some of the weaker channels may be lost. However, since it is possible
to switch to other satellites, some UK based channels can be found when further away from the UK. e.g. BBC World.
Many foreign channels can also be found. This may not at first seem important but consider the wide range of music
channels that are available or programs with English sound tracks from other countries. Since 27.5 degrees west
is also a satellite which is programmed into the dome, (most domes do not have this feature) with the appropriate
equipment it may be possible to receive the BBC and ITV in Spain and Portugal from this satellite.
Click here to order.

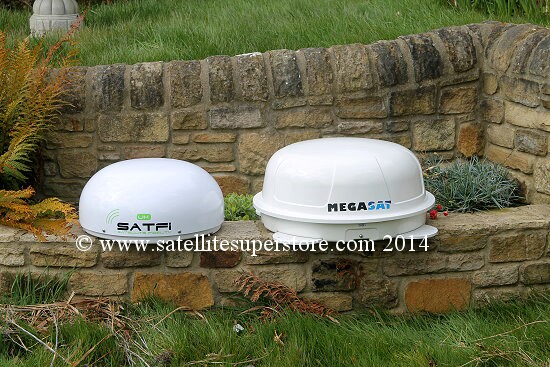

Small and large domes
This picture above showes the difference in size between a dome on the left for the UK and northern France and
larger models for the UK
and Europe on the right. For exact details of coverage please email or phone.
Long page. Scroll down for self-seeking automatic folding dishes -

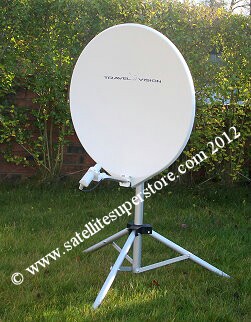

Travel Vision TVA80 twin LNB
Self-seeking dish with autoskew.
Ideal for Caravans or Motor Homes. Twin LNB included
Please note we are an authorised Travel Vision dealer, service and repair centre.
The TVA80 is the ideal companion for all who enjoy the best in Europe radio and television quality. The 80 cm
reflector is ideal for low reception weak signal conditions, even in weak signal. Another advantage is the low height
of only 21cm when folded. This allows installation on high vehicles with minimal effect on the headroom.

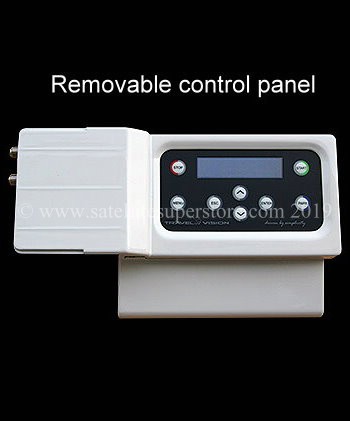

Controller included, the touch of a button quickly finds the selected satellite and it is all fully automatic.
The only automatic dish with "autoskew". This maximises the signal levels from the LNB. Ideal in low signal areas.
Profile (stowed height) only 21cm, Weight: 15kg Simple operation USB updateable
Pre-programmed for 8 satellites Including Astra 1, 2,3 and 4, Hotbird, Thor, Hispasat and Turksat.
Travel Vision TVA80 twin LNB self seeking dish with autoskew
Order code TVA85TW
Click here to order
Maxview MXL003 Omnisat Seeker. Latest Autoskew / GPS model
Wireless Automatic Twin LNB automatic dish.
Latest Autoskew/GPS model. Ideal for Caravans or Motor Homes. Twin LNB included.
As soon as you turn it on, the dish rotates and searches. It finds the satellite automatically. Weight only 11Kg. Quick and
easy. Easy to install. (Motorised). Set it so that the default satellite is 28E Sky and as soon as you turn it on it finds
freesat or Sky. Pre-programmed for 28E and 19E. Stores up to 15 satellites. Available in two dish sizes, 65cm and 85cm. Twin
LNB as standard. Designed for use with SKY+ HD receiver or freesat twin tuner free to air receiver with hard drive recording.
Alternatively can be used to feed two separate receivers for independent working.
Profile only 17cm. Wireless control panel.
to be connected. Gain - 65cm 36dB, 85cm 38.1dB Average search time: 30-60 seconds typical. The unique wireless backlit LCD
control panel features animated display icons feeding back antenna status to the user at all times. The wireless feature allows
unlimited mounting options and easy installation, making unsightly cable runs and fixing problems a thing of the past.
65cm Maxview MXL003 Omnisat Seeker Wireless Automatic Dish.
Twin LNB
Order code MXL0036
Click here to order
85cm Maxview MXL003 Omnisat Seeker Autoskew GPS Wireless Automatic Dish.
Twin LNB
Order code MXL0038
Click here to order
Maxview Target MXL017 Automatic Self Seeking Dish. TWIN LNB.
Standard model and Autoskew/GPS model.
Ideal for Caravans or Motor Homes. Twin LNB included
As soon as you turn it on, the dish rotates and searches. It finds the satellite automatically. Weight - 65cm 12Kg, 85cm 13Kg.
Quick and easy. Easy to install. (Motorised). Set it so that the default satellite is 28E Sky and as soon as you turn it on and
it finds freesat or Sky. Pre-programmed for 28E. Programmed for 5 satellites - ASTRA 1, 2, 3, Hotbird & Thor. Available in two
dish sizes, 65cm and 85cm. Twin LNB. Designed for use with SKY+ HD receiver or freesat twin tuner with hard drive recording or
single tuner receivers or free to air receiver. Alternatively can be used to feed two separate receivers for independent working.
Profile only 17cm.
Average search time: 30-60 seconds typical. Automatic lowering ignition safety system, Gain - 65cm 38dB, 85cm 39dB
Average search time: 30-60 seconds typical.
65cm Maxview MXL017 Target Automatic Dish. Twin LNB standard model
Order code MXL0176
Click here to order
65cm Maxview MXL017 Target with autoskew / GPS automatic dish. Twin LNB
Order code MXL0176H
Click here to order
85cm Maxview MXL017 Target. Twin LNB standard model
Order code MXL01768
Click here to order
85cm Maxview MXL017 Target with autoskew / GPS automatic dish. Twin LNB
Order code MXL017L8
Click here to order
Maxview Target MXL017 Automatic Self Seeking Dish. Quad LNB
Ideal for Caravans or Motor Homes. Quad LNB included
Run two twin tuner receivers, four single tuner receivers, or a multiswitch.
As soon as you turn it on, the dish rotates and searches. It finds the satellite automatically. Weight - 65cm 12Kg, 85cm 13Kg.
Quick and easy. Easy to install. (Motorised). Set it so that the default satellite is 28E Sky and as soon as you turn it on and
it finds freesat or Sky. Pre-programmed for 28E. Programmed for 5 satellites - ASTRA 1, 2, 3, Hotbird & Thor. Available in two
dish sizes, 65cm and 85cm. Quad LNB. Designed for use with SKY+ HD receiver or freesat twin tuner with hard drive recording or
single tuner receivers or free to air receiver. Alternatively can be used to feed four separate receivers for independent working.
Average search time: 30-60 seconds typical. Automatic lowering ignition safety system, Gain - 65cm 38dB, 85cm 39dB
Average search time: 30-60 seconds typical.
Profile only 17cm.
65cm Maxview MXL017QUAD Target Automatic Dish. Quad LNB
Order code MXL01765Q
Click here to order
85cm Maxview MXL017QUAD Target Automatic Dish. Quad LNB
Order code MXL01785Q
Click here to order
Maxview MXL028 Connect. Latest Autoskew / GPS model
Twin LNB automatic dish.
Latest Autoskew/GPS model. Ideal for Caravans or Motor Homes. Twin LNB included.
As soon as you turn it on, the dish rotates and searches. It finds the satellite automatically. Weight only 11Kg. Quick and
easy. Easy to install. Available in two dish sizes, 65cm and 85cm. Designed for use with SKY+ HD receiver or freesat twin
tuner free to air receiver with hard drive recording. Alternatively can be used to feed two separate receivers.
The Connect brings smart technology to your satellite system, offering the ultimate convenience. The free Connect app
offers full control of your system, with the additional benefit of automatic software updates ensuring uninterrupted
viewing and a greater range of satellites. Wherever you travel, Connect ensures you can stay connected.
Automatic Skew - If you plan to travel into Southern Europe, we would recommend you consider the addition of
Automatic Skew which will allow you to receive your favourite channels further from home. The Skew automatically rotates
the LNB to maximise satellite reception, a necessary addition when travelling at the edge of you chosen satellite footprint.
Control with your smart phone.
Average search time: 30-60 seconds typical. Automatic lowering ignition safety system Control Box allows any satellite receiver
to be connected. Gain - 65cm 36dB, 85cm 38.1dB Average search time: 30-60 seconds typical. The unique wireless backlit LCD
control panel features animated display icons feeding back antenna status to the user at all times. The wireless feature allows
unlimited mounting options and easy installation, making unsightly cable runs and fixing problems a thing of the past.
65cm Maxview MXL028/65TWINSKEW Connect Automatic Dish. Twin LNB
Order code MXL0286
Click here to order
85cm Maxview MXL028/65TWINSKEW Connect Automatic Dish. Twin LNB
Order code MXL0288
Click here to order
Automatic Self Seeking Dish for Sky Q
(Please note - "Sky Q" is a trade mark of Sky Television).
Ideal for Caravans or Motorhomes.
It finds the satellite automatically. Weight - 65cm 12Kg, 85cm 13Kg. Quick and easy. Easy to install. (Motorised).
The Target is a fully automatic roof mounted satellite system designed to receive satellite TV and radio in the UK
and Europe at the press of a button, using a wired control box. The Target Sky Q variant is fitted with a
Wide Band 10.41 GHz LNB allowing the system to be used with SKY Q receivers only
Click here to order
Maxview Target MXL017/65QFTA
automatic Sky Q, Freesat & free to air dish
(Please note - "Sky Q" is a trade mark of Sky TV).
Ideal for Caravans or Motorhomes. Desgned for use with Sky Q & free to air receivers
The Target finds the satellite automatically. Weight - 65cm 12Kg, 85cm 13Kg. Quick and easy. Easy to install. (Motorised).
The Target is a fully automatic roof mounted satellite system designed to receive satellite TV and radio in the UK and
Europe at the press of a button, using a wired control box. This Target SKY Q variant is fitted with a Quad LNB and
supplied with a SKY Q Adapter allowing the system to be used with SKY Q Receivers or Free to Air (FTA) Receivers.
Please note, the Sky Q adapter requires 240V (it runs on 20V but comes with a 240 volt power supply) to work with
Sky Q but Sky Q receiver also require 240V. To use this kit on 12V the adapter and Sky Q receiver could be
plugged into a 12V to 240V interter (not included).
Maxview MXL017/65QFTA 65cm automatic self seeking dish for
Sky Q and Freesat and free to air dish
Order code QFAUT65
Click here to order
Maxview MXL017/85QFTA 85cm automatic self seeking dish for
Sky Q and Freesat and free to air dish
Order code QFAUT85
Click here to order

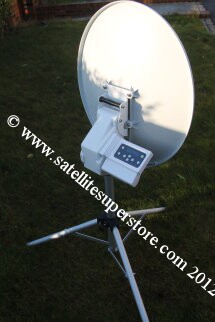

Travel Vision R7-Flat automatic satellite
antenna with tripod & carry bag. Twin LNB
Ideal for Caravans or Motor Homes. Twin LNB. Bag included.
Please note we are an authorised Travel Vision dealer, service and repair centre.

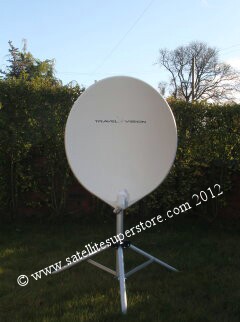

This is a fully automatic satellite flat plate antenna on a tripod. First select the satellite you want to find on the control panel,
e.g. Astra 2 for freesat or Sky TV and the dish will automatically turn, adjust and find the satellite.
Once the satellite is found, the control panel can be unplugged and put away for safe keeping (in your car,
caravan or motorhome). This is a very fast way of having satellite TV with full automation and ease of use.

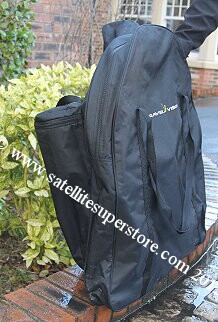

The antenna unit, control panel and tripod all pack away into a strong canvas bag for easy transport. Compact and easy.
The right hand picture / satellite black and blue lines / footprint above shows the excellent coverage across Europe.
16 pre-programmed satellites. Weight 8.5Kg, Software upgradable by USB Power adapter 240v to 24V
Please note, many dealers do not include the canvas carry bag above but when you buy an R7 from us the bag is included.
A canvas carry bag for the controller is also included - see pictures below.
Travel Vision R7-Flat automatic satellite antenna with tripod and carry bag.
Since our FlatR7
INCLUDES the canvas bag, the price is discounted by £20.00 as we are only adding £49.95 for the bag
Order code TRAFLAT
Click here to order
TracVision RV1 tracking dome.
Watch satellite TV while moving. Single cable solution tracking dome.
KVHs ultra-compact TracVision RV1 is the smallest and lightest in-motion satellite TV system on the market,
bringing you premium satellite TV entertainment throughout the UK. Enjoy standard-definition and high-definition
programming from Freesat and Sky TV, whether youre parked or cruising down the motorway. Thanks to KVHs RingFire
technology, the RV1-series offers a 32 cm diameter antenna with the highest gain in its class, delivering
crystal-clear satellite TV programming wherever you go, even in poor weather. Best of all, the single-cable
design makes installation a very easy! Profile - 34.3cm Diameter / footprint - 33cm. Weight 3.5Kg.
32 cm (12.5-inch) diameter antenna features proprietary RingFire technology for stronger signals, wider
geographic coverage, and better reception, DVB-S2 compatible, Advanced inertial-based stabilized search
for fast satellite acquisition. High performance tracking with advanced algorithms for crystal-clear television
picture in all conditions Built-in worldwide satellite library World-class warranty coverage and support
Using an app, this dome can be updated quickly and easily when necessary. Power - 12Vdc, 3A (max) 0.1A - sleep
Single cable design. Get your favourite satellite TV programs from Freesat or Sky TV on the road!
TracVision RV1 tracking dome.
Order code TRACRV1
Click here to order

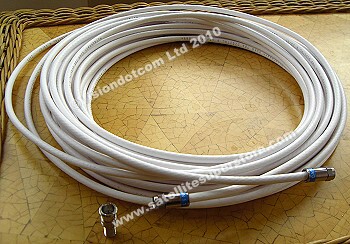

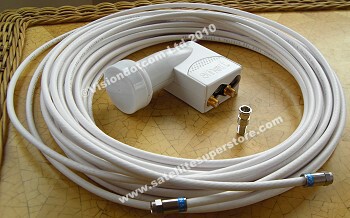

Ultimate Digital Cable
High digital specification cable. Made in Germany to very high standards.
Made up lengths of this digital cable (as used in our caravan dish kits)
is available on the Satellite cable page.
This page also includes F connectors etc.
Dish sizes disclaimer.
Please not that dish sizes vary.
Manufactures quote a particular size of dish, however, dishes are not circular, they are
oval and the dish diameter referred to in their literature and on our site is an
approximation and should not be taken as an exact dimension.
See our other web site at-
www.primesat.eu
This site includes many products that are exclusive to the Satellite Superstore.
The site contains -
Products that we manufacture (e.g. We have manufactured heavy duty wall mounts and ground stands since 1991).
Selected products which have our own Primesat brand name and have been prepared to our specifications.
Selected products where we have been appointed the authorised UK or European distributor by the manufacturer.
www.primesat.eu is an information site. Here you will find full specifications and many detailed pictures.
To buy any of these products, simply order them on this web site.
Link to our own satellite museum site
Satellite Museum. A Museum of vintage satellite receivers.
See www.satellitemuseum.com
For old Satellite receivers with knobs on and the history of satellite TV.
Also see
www.rewindmuseum.com. A Museum of vintage consumer electronics.
Vintage reel to reel video recorders. Vintage VHS and Betamax VCRs. Vintage video cameras. Vintage
Laser Disc. Vintage Computers. Old telephones. Old brick mobile phones. Vintage Hi Fi, Old reel
to reel audio and early audio cassette decks. Including, the history time line of vintage
consumer electronics ... and much more .....
It is well worth a visit.
Only The Satellite Superstore brings you
great products, advice and it's own museum.
You may be interested in two other web sites.
www.1952chevytruck.com
This web site shows all of the restoration process and the modifications to this truck.
In addition, there is a hard high quality tonneau cover on a new web site
at www.classictonneaucover.com for the 1947-53 Chevy truck.
Contacting us.
Unlike many other companies we are happy to answer questions on the phone.
Tel. (UK) 01207 544664 and 01207
544224
International Tel. + 44 1207 544664.
If you are ringing us about a product you have already purchased, you should ring the support line on your invoice.
Before sending questions via e-mail please check-out our
Frequently asked questions as
this could save
time.
If you have any questions & comments regarding this site's content, or you need advice please ....
click here to go to our contact forms.
Copyright © 2017 Vision International. All rights reserved.
