Sky Technomate 8 output LNB.
Technomate 0.2dB 8 output LNB
with Sky mini dish fitting.

The adapter on the left means this LNB will fit all types of mini dish.
Ideal for use with a number if Sky receivers
The adapter fits either type of Sky Mini dish boom arm.
For UK delivery, choose the £3.95 standard delivery option or the £7.50 priority option
Delivery to S IRELAND is £10. Choose the £10 option.
Order Code SKYTEL8£64.95
Astra and Hotbird upgrade kits
6 degree LNB block with built in Diseqc switch

Ideal for Astra and Hotbird at 19E and 13E. 2 way diseqc switch built in.
0.3dB This block is very neat and uses the 40mm clamp of the dish to hold the centre LNB. A good design.
Very quick and easy to fit and set up.
For UK delivery, choose the £7.50 delivery option
Order Code MONOBLSW
Only £19.95
Astra 19E and Hotbird 13E LNB universal kit.

Kit includes, two Triax 0.3dB LNBs (shown right), universal 6 degree bracket,
2 way diseqc switch, 2m digital cable, 4 F connectors, and waterproof tape.
For UK delivery, choose the £7.50 delivery option
Order Code 1913UKIAll for only £44.95
Astra 19E and Hotbird 13E LNB Triax kit.

For fitting on the Triax TD range of dishes.
Kit includes, two Triax 0.3dB LNBs (shown right), Triax 6 degree bracket,
2 way diseqc switch, 2m digital cable, 4 F connectors, and waterproof tape.
For UK delivery, choose the £7.50 delivery option
Order Code 1913TKIAll for only £44.95

Triax 20 degree Multi Bracket,
LNBs, switch kit.

For fitting on the Triax TD 78, 88 or 1.1 dishes. (Dishes not included).
Kit includes, 4 LNBs, Triax perfect fit rigid multi bracket, 4 way diseqc switch, instructions.
Unlike flexible difficult to set up, universal fit brackets, this is a dream to use as it is
well engineered and designed by Triax for their own TD dishes.
20 degree look angle means that on one dish, Astra 2 (28E), Astra 1 (19E), Hotbird (13E)
can be received.
Narrow feedhorn LNBs are used so that satellites that are only 3 degrees apart can be received.
To summarise, it is possible to receive from Astra 2 to the Hotbird on one fixed dish.
(Could also be used for other combinations of satellites)
We have tested this ourselves. Using a Lacuna / Wolsey meter, a groundstand and Triax TD 78 with the Multi LNB kit.
They were set up it our testing area. It took 10 minutes to get prefect results from all 3 satellites including
setting up the stand and dish! (Testing was done with the Fortec star 5100 receiver) Location - Newcastle - UK
The kit with a Triax dish is available from the
fixed dishes page.
UK, If ordering only the kit, choose the £7.50 delivery option.
If you are buying the bracket AND a dish and wall mount from the fixed dishes page,
select the standard £10 delivery option, or the £12.95 priority delivery option.
Order Code MULTIBRAll for only £79.95

Feedhorns (Ku Band)

Channel Master offset feedhorn
The 23mm to 40mm spacers are included.
Channel Master feedhorn for all Channel Master offset dishes
from 90cm to 1.8m. Highly recommended for Channel Master
1.2m & 1.8m dishes. Use this feedhorn with a C120 flange LNB
for better matching & higher gain than a 40mm clamp LNB of
equivalent noise level.

Why buy a high quality Channel Master dish and use a compromise
40mm mass market LNB where the feed is made for
ANY dish?
Taking a 1.2m dish as an example.
A 40mm LNB may only illuminate 1.1m of dish area or perhaps 1.3m of dish area
(i.e. including noise round the edges)
But with a matched feedhorn, exactly 1.2m of dish area is illuminated.
This feedhorn is for offset dishes and can also be used on other makes of offset dish.
It comes with adapters for either 23mm or 40mm clamps.
Can be used with the range of C120 universal LNBs above. OR,
This feedhorn can be purchaced with a C120 flange LNB at a special package price
on the
Feedhorns page.
Order Code CMFEEDH
£59.95

Channel Master feed support boss.

This is the plastic feed support clamp that takes the Channel Master
feedhorn and fits on the end of the three feed support arms.
This is a 40mm clamp.
Order Code CMFEESB
IN STOCK £39.95
Universal offset feedhorn

Ideal for offset dishes of 80cm to 90cm.
The feed has a 23mm neck and so it fits many older types of offset dishes as well
C120 flange. Boxed with screws and instructions.
Can be used with the range of C120 universal LNBs above. OR,
This feedhorn can be purchaced with a C120 flange LNB at a special package price
on the
Feedhorns page.
Order Code UNOFFSE£39.95

Universal feedhorn Kit for
Prime Focus dishes including boss.

Feedhorn kit for prime focus dishes.
Can be used with the range of C120 universal LNBs above
This kit includes three items,
1. Prime focus feehorn with scalar rings.
2. Feehorn boss which holds the feed and alows for rotation for setting polarity.
3. Triangular mounting plate.
Ideal for prime focus dishes where the make of dish is not known
or the dish has been discontinued. For example the kit could be used
with "Trac" dishes that are being converted from a combined feed,
polariser & block type LNB to a C120 flange universal LNB.
This is a complete kit of feedhorn, boss & feed support mounting
bracket. As long as you have three support arms with threads and
nuts at the end this whole assemble can be fitted to the end of
the three arms. The dish can then have a C120 flange universal LNB
fitted to this conversion kit. The assembled kit is shown below,

This feedhorn can be purchaced with a C120 flange LNB at a special package price
on the
Feedhorns page.
Order Code UNIFEED
£39.95

Invacom Feedhorn

The Invacom feed comes from Invacom with no cap or cover and so the spiders can get in and lay their nests.
The result is that they block the signal. We fit a yellow cap on the end. This is better than a flat cover
as flat covers are burnt through by the sun. Using a cap rather than a cover means that it is not at the
focal point and is much less likely to be burnt by the sun. This cap is included with all Invacom feedhorns
and is exclusive to the Satellite Superstore. The Invacom feedhorn has a 23mm neck and a C120 flange
It is made of aluminum and has scalar rings. It is designed for prime focus dishes. OR,
This feedhorn can be purchaced with a C120 flange LNB at a special package price
on the
Feedhorns page.
Order Code INVFEED
£29.95
C Band equipment.
The following LNBs are NOT Universal LNBs.
Ku Band block type quad band LNB.

0.5 dB Ku Quad Band LNB
Digital compatible block type Ku Band LNB. (Fits a Co-Rotor)
Order Code KUBAND£99.95
Astrotel Co-rotor.
The co-rotor allows a C band LNB and a Ku band block type LNB to be fitted to one prime focus dish
A receiver to work with this might be an Echostar 3600
Order code COROTOR
£195.00
C Band Voltage switching LNB.
20K C Band LNB Voltage switching LNB with feed

"Astrotel" integtated C band LNB and feedhorn.
Fits the Unicorn conversion kit below (if required).
Order Code CBAND20£69.95
Unicorn Co-rotor conversion kit
(Used to be fitted to the (now discontinued) 1.5m Unicorn dish with C band and Ku band.)
This kit allows a Co-rotor to be fitted to a standard Unicorn dish.
The Ku band feed support boss is removed and this kit is then fitted.
Could be used on other prime focus dishes.
Alows a Co Rotor to be fitted the the 3 feed support arms
With other makes of dish the holes or dish bolts to take the arms my need modifying.
Order code CORBOSS
£29.95
Feedhorns with Universal LNBs.

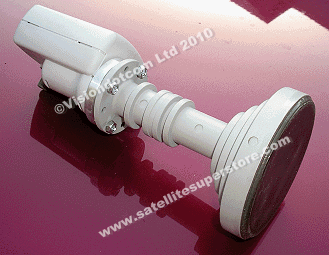

Andrews offset feedhorn
with C120 LNB
The 23mm to 40mm spacers are included.
Andrews feedhorn for all Andrews (Channel Master) offset dishes
from 90cm to 1.8m. Highly recommended for Andrews (Channel Master) 1.2m & 1.8m dishes.
Use this feedhorn with a C120 flange LNB
for better matching & higher gain than a 40mm clamp LNB of equivalent noise level.
Why buy a high quality Andrews (Channel Master) dish and use a compromise
40mm mass market LNB where the feed is made for
ANY dish?
Taking a 1.2m dish as an example. A 40mm LNB may only illuminate 1.1m of dish
area or perhaps 1.3m of dish area (i.e. including noise round the edges)
But with a matched feedhorn, exactly 1.2m of dish area is illuminated. This feedhorn
is for offset dishes and can also be used on other makes of offset dish.
It comes with adapters for either 23mm or 40mm clamps.
Included is either a 0.3dB Invacom or Inverto LNB
Use the Invacom LNB when the cable length is less than 25m and the Inverto when it is more than 25m
(Sometimes Invacom put their LNB in a white cover and sometimes a dark grey cover but it is the same LNB)
Andrews feedhorn with Invacom 0.3dB C120 LNB

23mm to 40mm spacers included.
In stock and ready for immediate shipping.
Order Code CMFINVA
IN STOCK £94.95
Andrews feedhorn with Inverto 0.3dB C120 LNB

23mm to 40mm spacers included.
In stock and ready for immediate shipping.
Order Code CMFINVE
IN STOCK £79.95

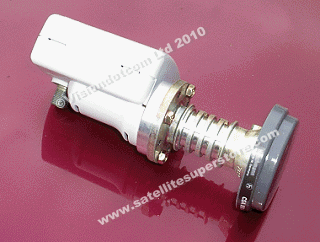

Universal offset feedhorn with C120 LNB

Ideal for offset dishes of 80cm to 90cm.
The feed has a 23mm neck and so it fits many older types of offset dishes as well
C120 flange. Boxed with screws and instructions.
Included is either a 0.3dB Invacom or Inverto LNB
Use the Invacom LNB when the cable length is less than 25m and the Inverto when it is more than 25m
(Sometimes Invacom put their LNB in a white cover and sometimes a dark grey cover but it is the same LNB)
Universal offset feedhorn with Invacom 0.3dB C120 LNB

In stock and ready for immediate shipping.
Order Code UNINVA
£74.95
Universal offset feedhorn with Inverto 0.3dB C120 LNB
In stock and ready for immediate shipping.
Order Code UNINVE
£59.95

Universal feedhorn Kit for
Prime Focus dishes including boss.
with C120 LNB.

Feedhorn kit for prime focus dishes.
This kit includes three items,
1. Prime focus feehorn with scalar rings.
2. Feehorn boss which holds the feed and alows for rotation for setting polarity.
3. Triangular mounting plate.
Ideal for prime focus dishes where the make of dish is not known
or the dish has been discontinued. For example the kit could be used
with "Trac" dishes that are being converted from a combined feed,
polariser & block type LNB to a C120 flange universal LNB.
This is a complete kit of feedhorn, boss & feed support mounting
bracket. As long as you have three support arms with threads and
nuts at the end this whole assemble can be fitted to the end of
the three arms. The dish can then have a C120 flange universal LNB
fitted to this conversion kit. The assembled kit is shown below,
(Sometimes Invacom put their LNB in a white cover and sometimes a dark grey cover but it is the same LNB)

Included is either a 0.3dB Invacom or Inverto LNB
Use the Invacom LNB when the cable length is less than 25m and the Inverto when it is more than 25m
Universal prime focus feedhorn with boss with Invacom 0.3dB C120 LNB

In stock and ready for immediate shipping.
Order Code UNPINVA
£74.95
Universal prime focus feedhorn with boss with Inverto 0.3dB C120 LNB
In stock and ready for immediate shipping.
Order Code UNPINVE
£59.95

Invacom Feedhorn with C120 LNB

The Invacom feed comes from Invacom with no cap or cover and so the spiders can get in and lay their nests.
The result is that they block the signal. We fit a yellow cap on the end. This is better than a flat cover
as flat covers are burnt through by the sun. Using a cap rather than a cover means that it is not at the
focal point and is much less likely to be burnt by the sun. This cap is included with all Invacom feedhorns
and is exclusive to the Satellite Superstore. The Invacom feedhorn has a 23mm neck and a C120 flange
It is made of aluminum and has scalar rings. It is designed for prime focus dishes.
(Sometimes Invacom put their LNB in a white cover and sometimes a dark grey cover but it is the same LNB)
(Invacom feehorns are sometimes silver and sometimes gold)
Included is either a 0.3dB Invacom or Inverto LNB
Use the Invacom LNB when the cable length is less than 25m and the Inverto when it is more than 25m
Invacom feedhorn with yellow cap and Invacom 0.3dB C120 LNB
In stock and ready for immediate shipping.
Order Code INVINVA
£64.95
Invacom feedhorn with yellow cap and Inverto 0.3dB C120 LNB

In stock and ready for immediate shipping.
Order Code INVINVE
£49.95


Satellite Superstore for all of your LNB and feedhorn requirements including,
LNB, LNBs, Low Noise Block, Invacom, LNB, MTI Blue Line LNB, Syntec LNB, Sky LNBs, Sharp LNB, Alps,
Grundig, Cambridge, Skywear, Triax, Edison, Sky LNBs, Universal LNBs, Universal LNB, C120, C120 flange,
C120 flange LNBs, 40mm, 40mm clamp LNBs, Quad, Twin, LNBs, Quatro, monoblock, 0.3dB, 0.2dB, 0.3 dB 0.2 dB,
C Band LNB, C Band feed, Co-rotor, Block type, Voltage switching, polariser, feedhorn, feedhorns,
feed, Channel Master feedhorn, Invacom feedhorn, Andrews feedhorn, universal fit feedhorns,
universal feedhorn, Prime focus feedhorn, Offset feedhorn, Astra, Hotbird, LNB, Invacom LNB,
MTI Blue Line LNB, Syntec LNBs, Sharp, Alps, Grundig, Cambridge, Skywear, Triax, Sky LNB, Sky dish LNB,
Sky LNBs, Universal LNB, Universal LNBs, Twin LNBs, Multiswitch, Multiswitches, quatro, quad,
4 output, C120, C120 flange, C120 flange LNBs, 40mm, 40mm clamp LNBs, C Band LNB, 15C, C, Band,
C Band feed, Co-rotor, Block type, Voltage switching, polariser, feedhorn, feedhorns, feed, Andrews,
Channel Master feedhorn, Invacom feedhorn, Andrews feedhorn, universal fit feedhorns, universal
feedhorn, Prime focus feedhorn, Offset feedhorn, Astra, Hotbird, 13E, 19E, 28E, monoblock,
Twin LNBs, Twin LNB, Invacom twin LNB, Invacom twin, MTI Blue Line twin LNB, Syntec twin LNB quad LNB,
quad LNBs, Invacom quad LNB, Invacom quad, Syntec quad LNB Quatro LNB, Quatro LNBs, Invacom quatro LNB,
Invacom quarto Sky LNB, Sky Mini Dish LNB, Sky LNBs, Grundig LNB, Cambridge LNBs, Sky, Skywear LNB,
Cambridge LNB, feedhorn, feedhorns, feed, Channel Master feedhorn, Invacom feedhorn, Andrews feedhorn,
universal fit feedhorns, universal feedhorn, Prime focus feedhorn, Offset feedhorn monoblock, monoblok,
monobloc, Astra, Hotbird, 13E, 19E, Astra and Hotbird, 19E and 13E, 6 degree LNB bracket C Band, C,
Band, C Band LNB, C Band feed, C Band feedhorn , Corotor, Block type LNB, voltage switching C Band LNB,
polariser, Co-rotor, Astrotel, Astrotel C Band LNB, Co-rotor support ring, Multiswitch, Multiswitches,
Triax multiswitch, Triax multiswitches, 8 way multiswitch, 12 way multiswitch, 16 way multiswitch,
8-way, 12-way, 16-way

(All prices on this page include VAT.)
Links to site pages,
Advice
Support
TrainingVideos
Multiswitches
Museum
Reviews
Links
Contact Us
SKY receivers & systems
SKY accessories
Other accessories
Installation equipment
Meters
Wall mounts & ground stands
Dishes
Transparent dishes
Full systems
Motorised systems.
2, 3 or 4 satellites on 1 fixed dish
BBC systems
Audio Video
Budget receivers
Blind search receivers
Receivers with hard drives
Twin tuner PVR receivers
High Definition Receivers
Manhattan
Topfield
Phoenix
Dreambox
Technomate
Humax
Fortec Star
Pace
Vantage
Kathrein
USA sales
More receivers
Caravan products
Diseqc switches
LNBs
Feedhorns
Motors
V Box
Positioners
Adult cards
CAMs
All products index
Links to menu pages,
Catalogue Contents Page. A summary of all pages. More products.
ADVICE Pages. Frequently Asked Questions. (FAQs) Read and learn!
Menu pages.
Sky menu page.
Satellite systems menu page.
Satellite receivers menu page.
Satellite dishes
Clear transparent dishes
High definition receivers menu page.
LNB (and feedhorns) menu page.
Motorised systems menu page.
Enthusiast blind search receiver menu page.
Manhattan menu page.
Humax menu page.
Technomate menu page.
Topfield receivers menu page.
Dreambox receivers menu page.
Pace receivers menu page.
Triax dishes, LNBs & brackets menu page.
3/4 satellite fixed dish menu page.
Small satellite items menu page.
Audio video products
Review centre menu page.
Index of all products menu page.
Links to pages with more detail,
Catalogue Contents Page. A summary of all pages. More products.
ADVICE Pages. Frequently Asked Questions. (FAQs) Read and learn!
Sky Digital.
The Sky Digital receivers / systems / mini dishes / accessories. The Pace DS440N. The Sky Plus.
Sky Digital accessories handsets, TV eyes, distribution around the house, wireless, offers, leads, etc.
Sky Digital dishes and LNBs single, twin & 4 out LNBs, Zones 1 & 2 mini dishes & larger dishes.
Sky Digital in Spain. 1.0m, 1.2m, 1.8m and 2.4m dishes for Spain. Satellite meters for Spain.
Satellite dishes,
Dish menu page
LNB menu page
Sky dishes
Wall mounts
Ground stands
Feedhorns
FIXED,
Sky
Triax 60,80,90cm,1.1m
2.4m
Andrews (Ch Master)90cm, 1.0m 1.2m,1.8m
Transparent 60,85cm
MOTORISED,
Triax 80, 90cm,
Transparent 85cm
Funke 1.0m
Andrews (Channel Master) 90cm, 1.0m, 1.2m, 1.8m
OTHER,
Sky mini dishes
All-weather Sky dishes
Sky dishes for Spain
3/4 satellite dishes
Dish motors
Caravan dishes
Terrestrial PVR receivers,
Topfield TF5800 160Gb & 250 Gb
Humax 9200T 160Gb
Satellite & Terrestrial,
Topfield TF5400T 250 Gb PVR
Vantage x221tsci blind search combo.
Technomate TM-6900 HD Combo.
Vantage HD 7100TS blind search combo.
Contacting us.
Tel. (UK) 01207 544664 and 01207 544224
International Tel. + 44 1207 544664.
If you are ringing us about a product you have already purchased, you should ring the support line on your invoice.
Before sending questions via e-mail please check-out our
Frequently asked questions as this could save time.
If you have any questions & comments regarding this site's content, please ....
contact us by e-mail.
(We only accept questions in English (no text language). We do not open attachments.)
Questions about faults or returns must include an invoice number or order number & date of purchase.
Technical questions are not a problem but questions about "channels" should be checked out first with
the satellite providers. Links to the satellite providers web sites are on our
Links Page
Copyright © 2008 Vision International. All rights reserved.
