Orbital 1.0m (and 80cm) high gain
lightweight aluminium dishes.



Very high gain well designed dishes. They produces more gain than any other dish we know of for their size.
These are precision made aluminum dishes at an excellent price. Since they are made of aluminium and not
steel they are much lighter than much smaller steel dishes. A high quality product range.
It is possible to upgrade the single LNB to a twin, quad, octo or quatro LNB using the LNB upgrade options
These upgrade options ONLY apply if you are ordering a dish with a single LNB (you pay
the difference in price - or less) They do not apply if you are ordering a dish without an LNB.
1m and 2m pole "above the gutter" wall mounts are available lower down the page if required.

Shipping options. Discounted shipping on all web orders.
UK - mainland UK delivery is included in the price,
so choose "Mainland UK delivery included" - UK shipping option No 1 (or priority options 4-7)
Or, for "UK offshore island (and Eire) by courier" dishes up to 85cm choose the £15 - UK (and Eire) shipping option No 2.
Or, for "UK offshore island by courier" dishes from 90cm to 1.05m. Choose the £35 option - UK shipping option No 8.
Please note that, although not guaranteed, many standard uk deliveries are arriving next day
if the order is received before our cut off times.
International - within the EU - dishes up to 85cm - choose the £38 "up to 5Kg by courier to EU countries" shipping option
International - within the EU - 90cm - 1.05m dishes - choose the £69 "Oversized item to an EU destination" shipping option
International - outside of the EU - choose the "International shipping quote by e-mail" shipping option.

Orbital 1.0m dish without LNB (without LNB and without wall mount).
If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and see other mount options below.
Order code ORB10MO
£89.95

Orbital 1.0m dish with Titanium LNB (without wall mount).
If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and see other mount options below.
Order code ORB10ML
£99.95

Orbital 1.0m dish with Titanium LNB and wall mount.
A standard wall mount is included.
Order code OR10DLP
£109.95

Orbital dish 80cm without LNB (without LNB and without wall mount).
If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and see other mount options below.
Order code ORB80MO
£59.95

Orbital 80cm dish with Titanium LNB (without wall mount).
If an above the gutter long pole wall mount is required instead of a standard mount,
choose this kit "without wall mount" and see other mount options below.
Order code ORB80ML
£69.95

Orbital 80cm dish with Titanium LNB and wall mount.
A standard wall mount is included.
Order code OR80DLP
£79.95

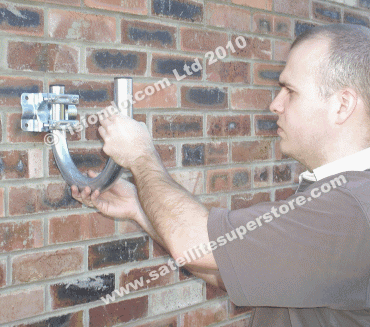

Long pole "above the gutter" wall
mounts for fixed dishes up to 1.0m



5 bolt fixing. Various stand off distances and 2 pole lengths - 1m and 2m. All pole diameters are 50mm
The poles are galvanised. the stand off distance is from the wall is to the inside of the pole.
If the dish is larger than 1.0m use a heavy duty "above the gutter" wall mount from our
wall mounts & ground stands page or a ground stand if applicable.
The following mounts are available from the Wall mounts & ground stands page,

Long pole wall mount 1. Stand off - 300mm. 2m galvanised pole.
Order code LPMOUN1

Long pole wall mount 2. Stand off - 500mm. 2m galvanised pole.
Order code LPMOUN2

Long pole wall mount 3. Stand off - 300mm. 1m galvanised pole.
Order code LPMOUN3

Long pole wall mount 4. Stand off - 500mm. 1m galvanised pole.
Order code LPMOUN4

Upgrade a single LNB to Titanium 0.1dB twin LNB



These are the new Titanium third edition 0.1dB LNBs that are widely praised on many web sites.
The third edition has the gold connections and is very low noise. An ultimate performance LNB.
Dish kit option. - Include a Titanium twin output LNB instead of the single LNB with my system.
(e.g. Sky + or freesat HDR option.)
System option - Include a Titanium 0.1dB twin output LNB instead of the single LNB with my dish or system.

This option is for standard dishes with Titanium LNBs.
Include a Titanium twin LNB instead of the single LNB with my dish or system.
Order code OPT05TW
Add only £10.00

This option is for Sky mini dishes with Sky LNBs.
Include a Titanium twin LNB with Sky mini dish adapter instead of the Sky single LNB with my dish or system.
Order code OPT05TS
Add only £17.50

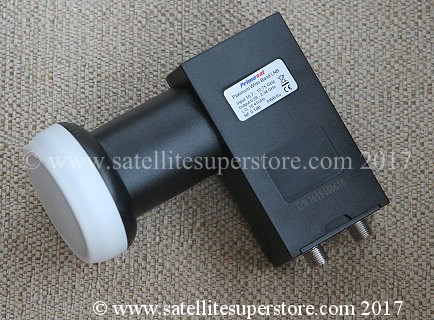

Upgrade a single LNB to a QUAD Titanium 0.1dB LNB



These are the new Titanium third edition 0.1dB LNBs that are widely praised on many web sites.
The third edition has the gold connections and is very low noise. An ultimate performance LNB.
(e.g. Sky Plus or freesat twin tuner option.)
System option - Include a Titanium 0.1dB quad LNB instead of the LNB with my system.

This option is for standard dishes with Titanium LNBs.
Include a Titanium quad LNB instead of the single LNB with my dish or system.
Order code OPT02QU
Add only £28.00

This option is for Sky mini dishes with Sky LNBs.
Include a Titanium quad LNB with Sky mini dish adapter instead of the Sky single LNB with my dish or system.
Order code OPT02QS
Add only £37.50

0.1dB Titanium Twin LNB with Sky mini dish fitting.



We are now using the new Titanium third edition 0.1dB LNBs that are widely praised on many web sites.
The third edition has the gold connections and is very low noise (see right hand picture).
An ultimate performance LNB.
The adapter included on the left means this LNB will fit all types of mini dish.
These LNBs are very low noise and offer a good upgrade compared to a
standard Sky Mini dish LNB.
The adapter fits either type of Sky Mini dish boom arm.
This LNB is ideal for use with a Sky Plus or Sky HD receiver.
Go to the Sky LNB page

The differences between a Sky mini
dish and a standard dish (and between LNBs).

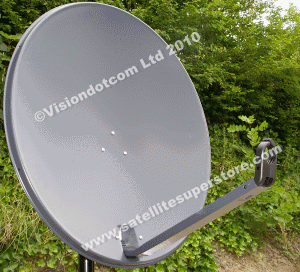

Standard dishes are sold all over the world.
Sky mini dishes are sold in the UK by Sky TV. They are built to the lowest possible price.
All Offset dishes are oval - not circular.
A standard (offset) dish is usually higher than it is wide.
A Sky mini (offset) dish is wider than it is high.
A standard dish uses a 40mm universal LNB. This LNB has a 40mm neck. The dish
uses a saddle clamp to clamp the 40mm neck of the LNB into the 40mm clamp.

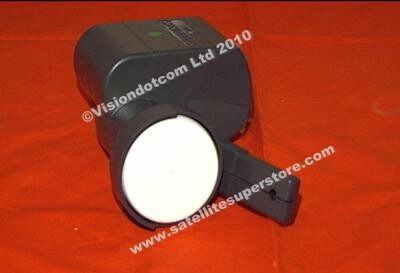

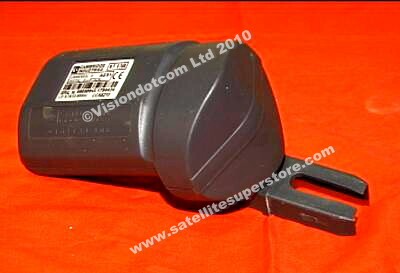

A Sky mini dish uses a Sky mini dish LNB. This LNB has a fitting that either goes into the
rectanglar (cross section) LNB support arm, or fits over it. Either way it fits onto the
arm and not in a saddle clamp. This type of LNB will not fit a standard dish and
a 40mm LNB will not fit on a Sky mini dish. It is possible to buy a standard LNB and
attach a Sky mini dish adapter (see bottom picture above) so that a standard
LNB will then fit on a Sky mini dish, however, the feedhorn is not an ideal match as the
standard LNB is designed to collect signal from a dish that is higher than it is wide.
This is compensated by the fact that standard LNBs tend to be better (lower noise) than Sky LNBs
There are two reasons why a standard LNB with a Sky mini dish adapter might be used.
1. If the customer intends to upgrade to a (better) standard dish in the future and needs a new LNB now.
2. There are no quatro LNBs made by Sky and so if a quatro LNB is to be used on a Sky mini dish
it must be a standard quatro LNB with a Sky mini dish adapter fitted. (Quatro LNBs are designed
to work with multiswitches) Also note that we do sell a special multiswitch that will work with
a quad LNB and so a Sky mini dish can therefore be used with a multiswitch. This is ideal when
a mini dish is already installed, and has a quad LNB fitted to it and is very inaccessible
so difficult to change. Since multiswitches are professional products, it is, however, best
to fit a higher quality standard dish with 40mm quatro LNB if possible.
Sky quad LNBs can be fitted to a standard dish. If the Sky adapter collar is removed, then
a small piece of plastic that stops the collar from rotating is cut off with a craft knife,
this will leave a 40mm neck and the LNB will then fit a standard dish.

For Sky Digital receivers please click here

Dish sizes disclaimer.
Please not that dish sizes vary.
Manufactures quote a particular size of dish, however, dishes are not circular, they are
oval and the dish diameter referred to in their literature and on our site is an
approximation and should not be taken as an exact dimension.
